Brushless Planetary Gear Motors

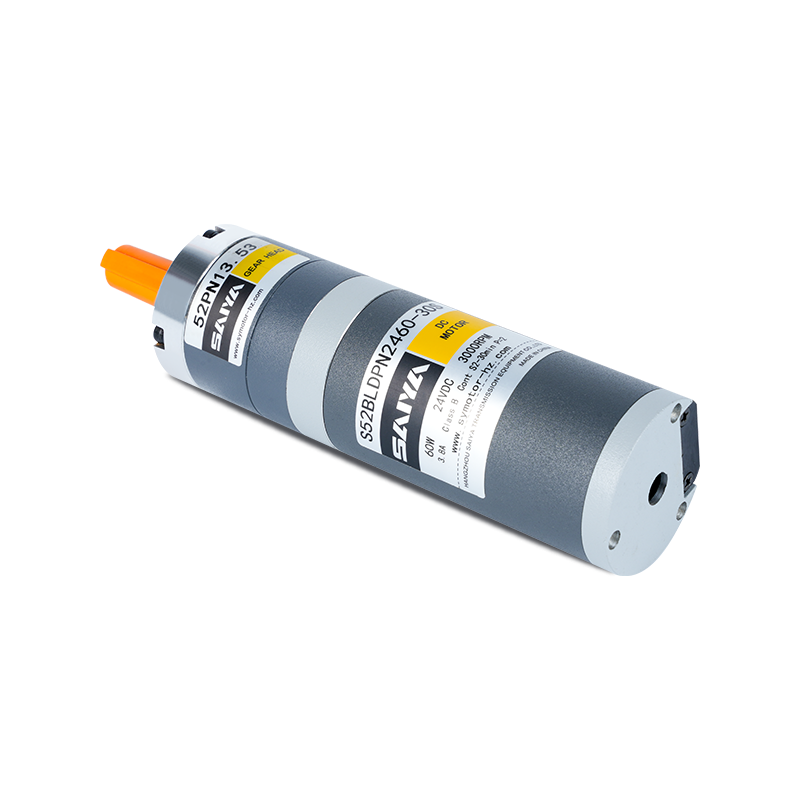

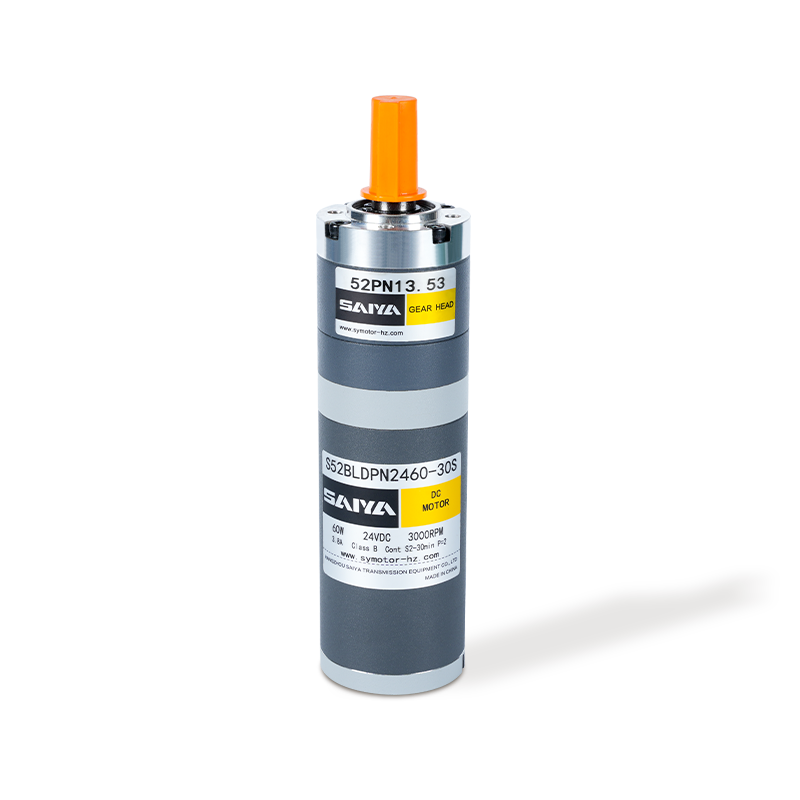

52mm Brushless Planetary Gear Motors

Size:  52mm

Brushless transmission planetary/rated voltage:  24V

Power consumption:  40W-60W

Rated speed:  3000RPM



  • 52mm Brushless Planetary Gear Motors
  • 52mm Brushless Planetary Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 52mm Brushless Planetary Gear Motor is a high-performance, compact solution ideal for applications requiring efficiency and reliability. Operating at a rated voltage of 24V and consuming 40W-60W of power, this motor is designed to deliver robust performance while maintaining energy efficiency.

One of the standout features of this motor is its brushless design, which significantly reduces maintenance needs and extends the motor's lifespan. The absence of brushes minimizes wear and tear, leading to smoother and quieter operation, making it suitable for noise-sensitive environments.

With a rated speed of 3000 RPM, this motor is capable of high-speed operations, making it an excellent choice for dynamic applications requiring quick and precise movements. The planetary gear system further enhances its performance by providing high torque transmission with minimal backlash, ensuring accurate and reliable performance even under heavy loads.

This motor's 52mm diameter makes it compact enough for use in tight spaces without compromising on power and efficiency. Its robust construction ensures durability, making it suitable for a wide range of industrial and commercial applications, including robotics, automation systems, and precision instruments.

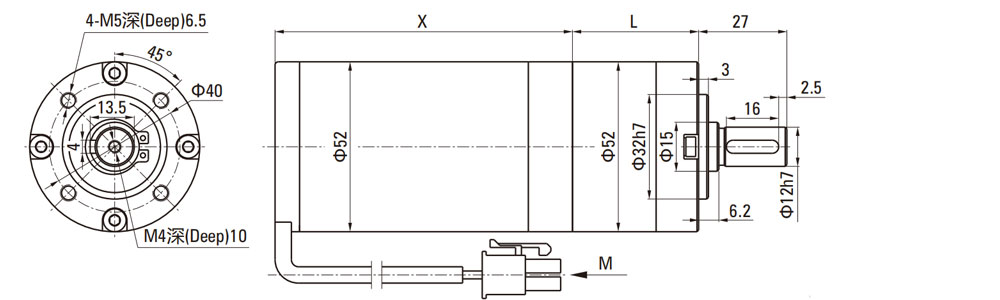

Outside Diameter 52 DC Brushless Motor

Motor Type Dimension Gearbox Model Gear Ratio Dimension
S52BLDPN2440-30S 91  52ZPN□ 3.65～8.63 38.6
13.53～58.22 54.2
S52BLDPN2460-30S 110
67.08～392.98 69.8
1 2 3 4 5 6 7 8
U V W GND Hv Hw Hu +Vcc

BLDC Motor Technical Data

Motor Type Voltage
V		 Rated Power
W		 Rated Current
A		 Rated Speed
RPM		 Rated Torque
Nm		 Grade Protection
IP
S52BLDPN2440-30S 24  40  2.4  3000  0.127  20
S52BLDPN2460-30S 24  60  3.8  3000  0.191  20

BLDC Planetary Gear Motor Technical Data-S52BLDPN2440-30S

Ratio 3.65  5.36  6.55  8.63  13.53  18.92  24.65  28.05  33.92  44.69  58.22  67.08  81.11
Output shaft speed 822  560  458  348  222  159  122  107  88  67  52  45  37
Allowable torque 0.42  0.61  0.75  0.99  1.40  1.95  2.54  2.89  3.50  4.61  6.00  6.24  7.54
Reduction stage 1    1  1  2  2  2  2  2  2  2  3  3

Ratio 91.36  102.88  118.98  127.74  145.36  165.64  191.56  231.61  301.68  392.98
Output shaft speed 33  29  25  23  21  18  16  13  10  8
Allowable torque 8.49  9.55  11.06  11.87  13.51  15.40  17.81  21.53  25  25
Reduction stage 3  3  3  3  3  3  3  3  3  3
+ Understand detailed product parameters
