Home / Product / AGV Project Products / AGV Walking Series / FG120-16-1 AGV Walking Series

AGV Walking Series Suppliers

  • FG120-16-1 AGV Walking Series
  • FG120-16-1 AGV Walking Series
AGV Walking Series

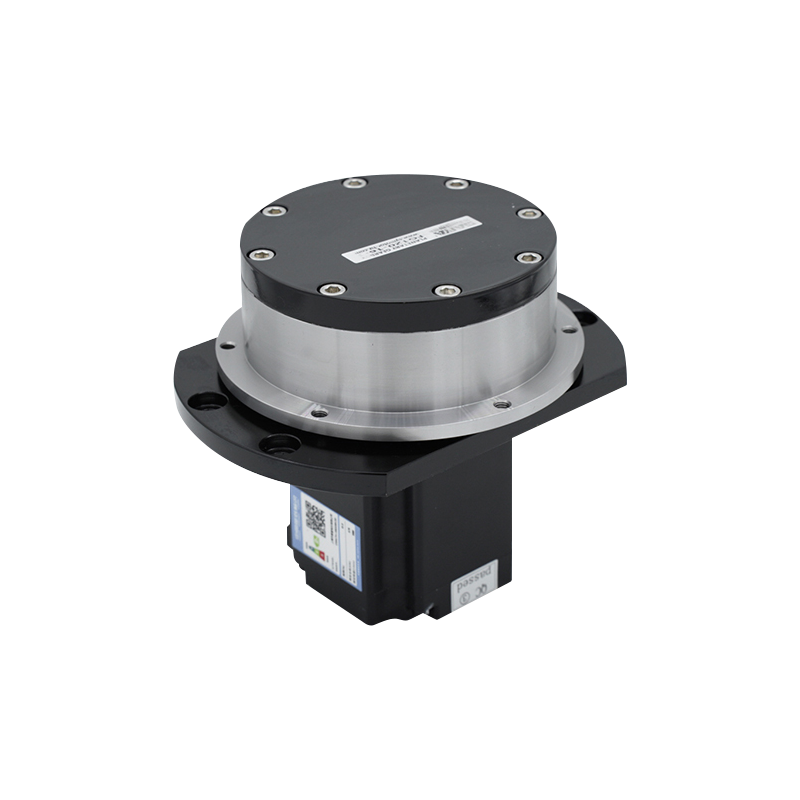

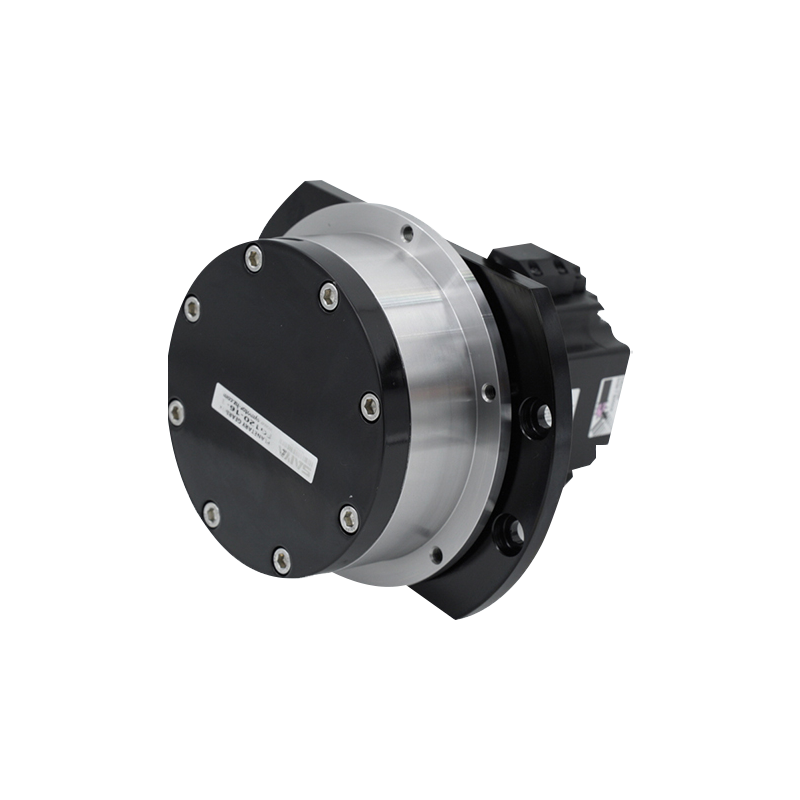

FG120-16-1 AGV Walking Series

Gear Ratio: 16

Gear Grade: 2

Backlash(arc-min): <=20

Rated Torque: 80NM

Instant Stop Torque: 2xRated Torque

Max Radial Torque: 4000N

Max Axial Torque: 2000N

Start Torque: <=0.5NM

  • FG120-16-1 AGV Walking Series
  • FG120-16-1 AGV Walking Series
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.
  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

1. Small size, light weight and relatively compact structure, suitable for installation in the AGV car.

2. High precision, high rigidity.less backlash and large torque, excellent positioning and rotation accuracy

3. Convenient to install, simple to operate, good versatility and long service life.
