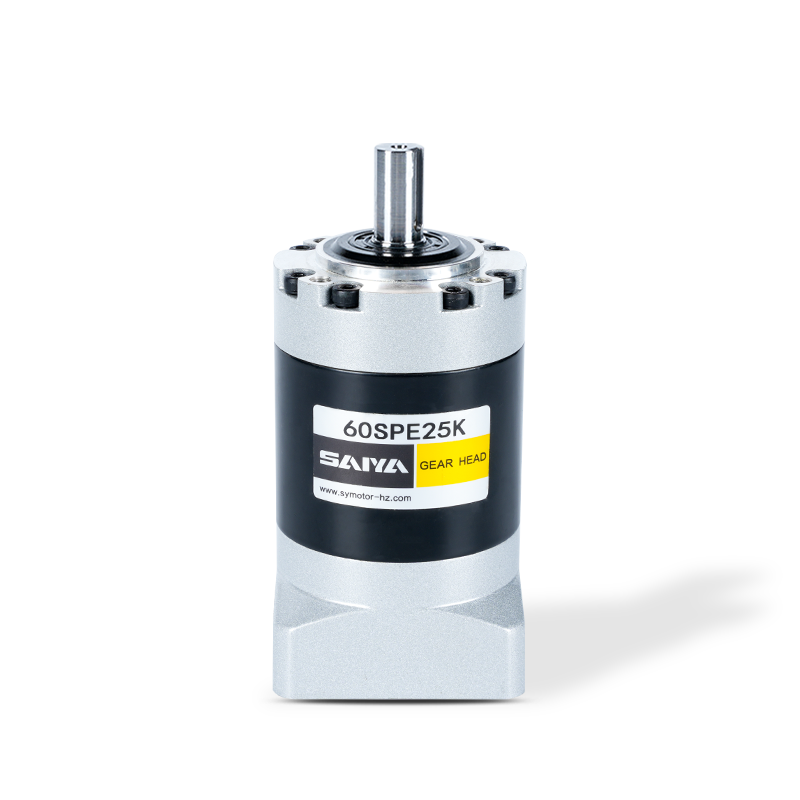

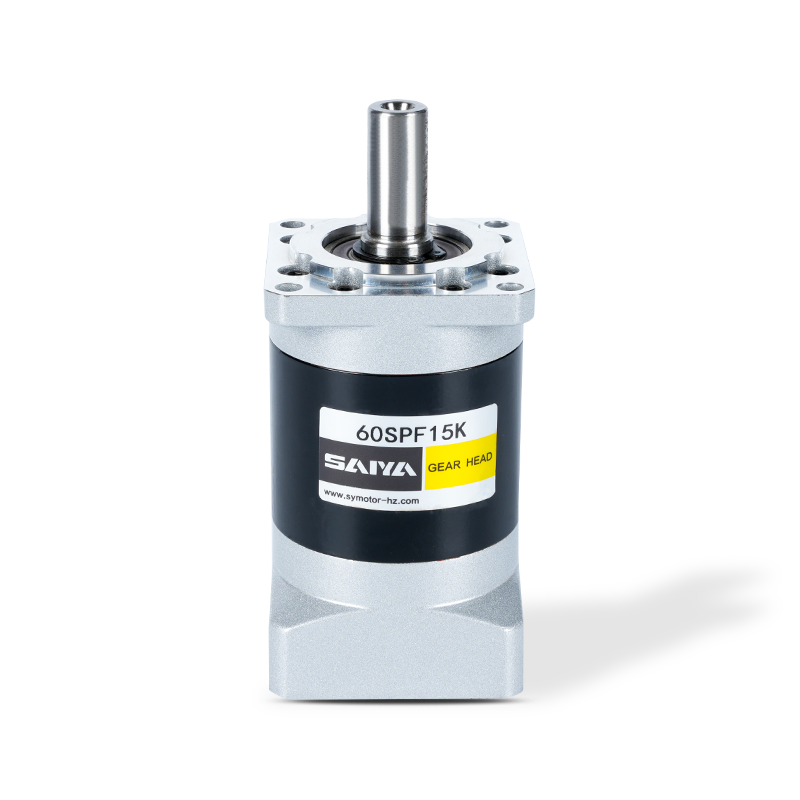

Precision Planetary Gearbox: The core strength of precision transmission

In the field of industrial automation and precision manufacturing, Precision Planetary Gearbox is becoming one of the key technologies to promote industrial upgrading with its excellent performance and wide application scenarios. As the core transmission component connecting the servo motor and the load, the precision planetary gearbox achieves the perfect combination of high torque density, low backlash and precise speed control through the unique planetary gear transmission structure, providing reliable power solutions for high-end equipment such as robots, CNC machine tools, laser cutting, etc.

The core design inspiration of the precision planetary gearbox comes from the motion law of the planets in the solar system. Its interior consists of three parts: the sun gear, the planetary gear and the ring gear: the sun gear is located in the center and is directly connected to the motor shaft; multiple planetary gears are distributed around the sun gear and mesh with the outer shell through the inner ring gear. When the sun gear rotates, the planetary gear revolves along the inner ring gear while rotating, forming a unique "planetary motion". This structure not only realizes the transmission force diversion of multi-tooth meshing, but also significantly improves the transmission efficiency and carrying capacity.

Compared with traditional reducers, precision planetary gearboxes have achieved breakthroughs in three core indicators:
Torque density improvement: Through the parallel transmission of planetary gears, greater torque can be output under the same volume. For example, a certain model of gearbox can achieve a rated torque of 1800Nm within a diameter of 100mm, meeting the requirements of high-load working conditions.
Reverse clearance control: Precision-machined gears are matched with high-precision bearings to reduce the return error to 3-5 arc minutes, and some high-end models even achieve zero arc minute accuracy, ensuring the smooth operation of the equipment.
Transmission efficiency optimization: Thanks to the multi-tooth meshing design, the transmission efficiency generally exceeds 95%, and some products can reach 98%, significantly reducing energy loss.

In the field of industrial robots, the combination of precision planetary gearboxes and servo motors has become a "golden partner". Taking the welding robot in automobile manufacturing as an example, its joints need to withstand high-frequency, high-load reciprocating motion. The precision gearbox ensures the millimeter-level accuracy of the welding trajectory through precise speed control and torque amplification. In semiconductor equipment, the wafer handling robot relies on the zero arc minute accuracy of the gearbox to achieve nanometer-level positioning capabilities.

In laser cutting, CNC machine tools, packaging machinery and other scenarios, precision planetary gearboxes also play an irreplaceable role. For example, in the Z-axis lifting system of the laser cutting machine, the gearbox needs to meet the needs of high-speed response and heavy-duty cutting at the same time, and its dynamic torque response time can be shortened to less than 10ms.

With the advancement of Industry 4.0, precision planetary gearboxes are moving towards higher precision and more flexible modularization.
Material and process upgrade: New materials such as silicon nitride ceramics are used, combined with five-axis linkage processing technology to further reduce gear weight and thermal deformation.
Intelligent monitoring integration: Built-in torque sensor and temperature monitoring module, predictive maintenance is achieved through IoT technology.
Product form innovation: Diversified structures such as right-angle type and coaxial type meet different installation requirements, and the pre-installed servo reduction motor combination solution simplifies system integration.
