Home / Product / Brushless DC Gear Motors / Low Voltage Brushless Gear Motors / 24V Brushless Gear Motor

Low Voltage Brushless Gear Motors Suppliers

View Products Contact Us
  • 24V Brushless Gear Motor
  • 24V Brushless Gear Motor
  • 24V Brushless Gear Motor
Low Voltage Brushless Gear Motors

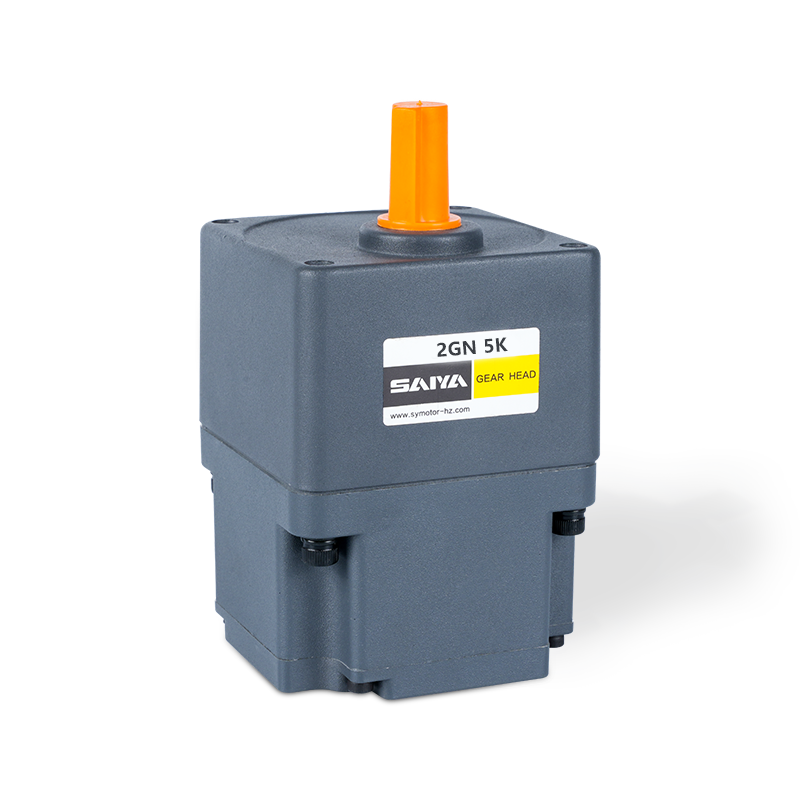

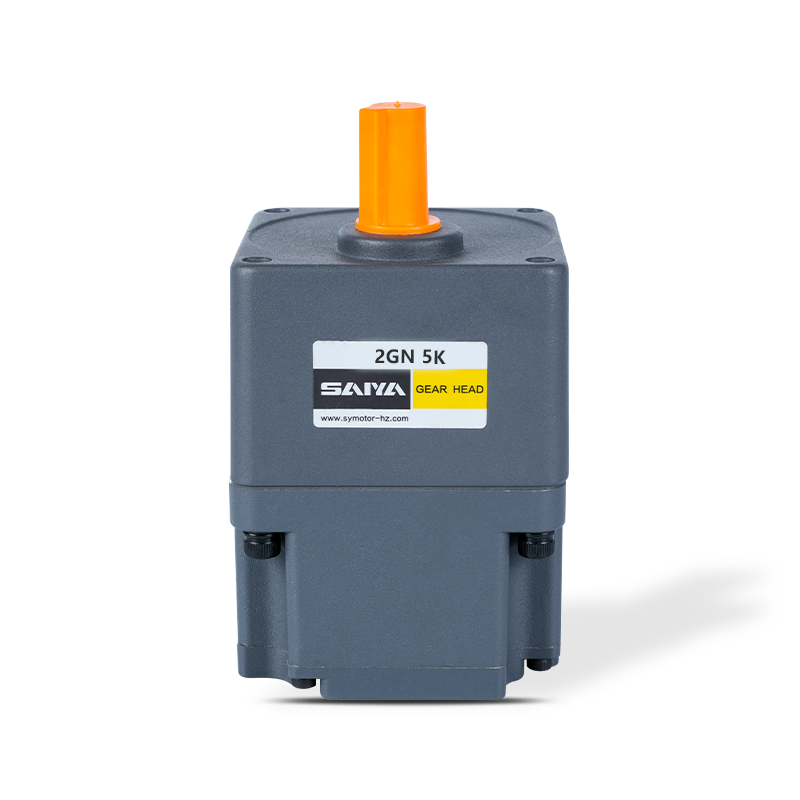

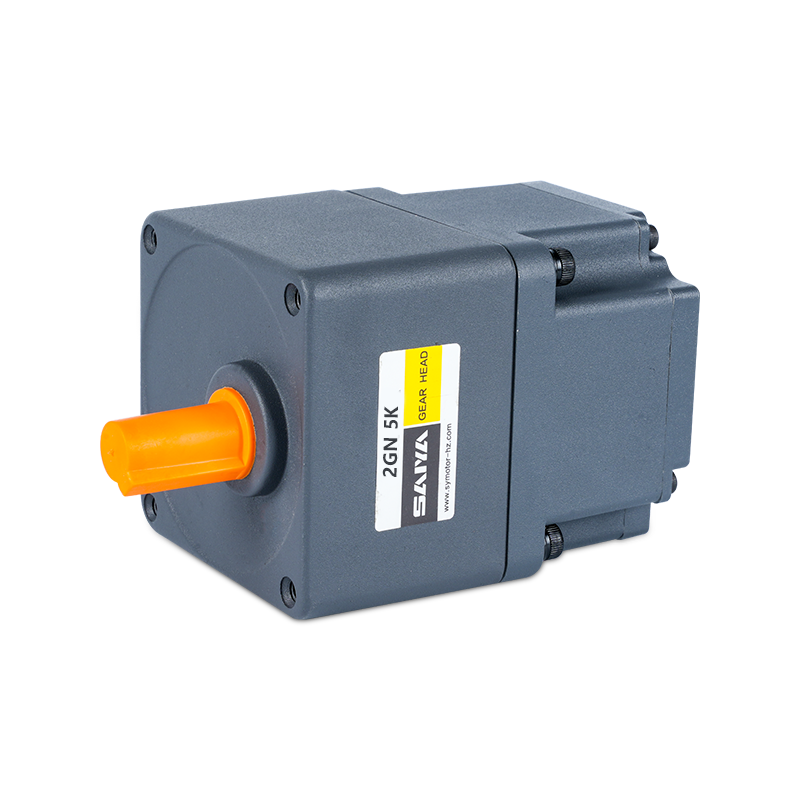

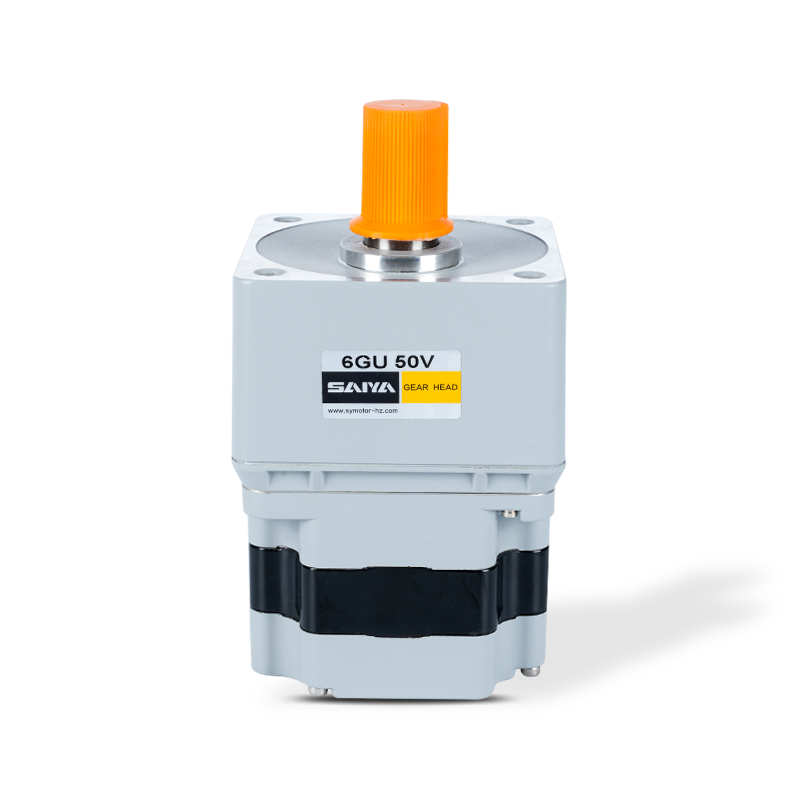

24V Brushless Gear Motor

Voltage size:  24V, 60mmx60mm -104mmx104mm

Rated power:  25-400W

Rated speed:  3000rpm

Rated current:  1.0-2.0A

Torque:  0.08N.M



  • 24V Brushless Gear Motor
  • 24V Brushless Gear Motor
  • 24V Brushless Gear Motor
PREV   |   No next article

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 24V Brushless Gear Motor is a versatile and efficient motor designed for a range of applications. With dimensions ranging from 60mm x 60mm to 104mm x 104mm, this motor can fit into various equipment sizes. It boasts a rated power output between 25W to 400W, making it suitable for both light and heavy-duty tasks. The motor operates at a consistent rated speed of 3000 RPM, ensuring smooth and reliable performance. It features a rated current of 1.0 to 2.0A, which indicates its efficiency and energy-saving capabilities.

One of the key specifications of this motor is its torque, rated at 0.08 N.M, which provides adequate force for driving mechanical systems. The brushless design enhances durability and reduces maintenance needs, as there are no brushes that wear out over time. This also contributes to quieter operation and higher efficiency compared to brushed motors.

The 24V Brushless Gear Motor is ideal for use in automation systems, robotics, electric vehicles, and other industrial applications where precise control and long-term reliability are essential. Its compact size, combined with robust performance characteristics, makes it a preferred choice for engineers and designers seeking high-quality motor solutions.

Low Voltage Motor Parameters

Model Voltage
V		 No-load current
A		 No-load Speed
RPM		 Rated Power
W		 Rated Current
A		 Rated Speed
RPM		 Rated Torque
N.m		 Grade Protection
IP
S2BLD25-24□ 24 0.60 3900 25 2.0 3000 0.08 20
S2BLD25-36□ 36 0.45 3600 25 1.5 3000 0.08 20
S2BLD25-48□ 48 0.30 3400 25 1.0 3000 0.08 20

Type

Low Voltage Motor

 Type  Model
Pinion Shaft Round Shaft
Lead Wire Type S2BLD25-24GN S2BLD25-24A
S2BLD25-36GN S2BLD25-36A
S2BLD25-48GN S2BLD25-48A

Parallel Shaft Gearhead (Sold Separately)

Gearhead Type Gearhead Model Gear Ratio
 Long Life●Low Noise 2GN□K 3、3.6、5、6、7.5、9、
12.5、15、18、25、30、
36、50、60、75、90、
100、120、150、180、200
2GN10XK(Decimal Gearhead)

Enter the gear ratio in the box within the model name.

Gear Motor-torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box()within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

The speed is calculated by dividing the motor's synchronous speed by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N·m.

Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Output shaft speed 1000 830 600 500 400 330 240 200 166 120 100 83 60 50 40 33 30  25 20 16 15
Allowance Torque 0.19 0.23 0.32 0.38 0.48 0.58 0.81 0.97 1.16 1.44 1.73 2.07 2.52 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00

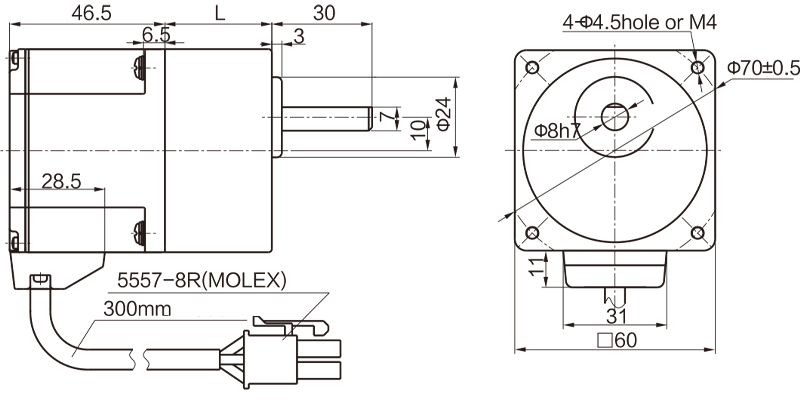

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:0.5kg / Gearhead: 0.48kg

Motor Model Gearhead Model Gear Ratio Dimension
Z2BLD25-□GN 2GN□K 3~18 32
25~200 41

Enter the gear ratio in the box(□)within the model name

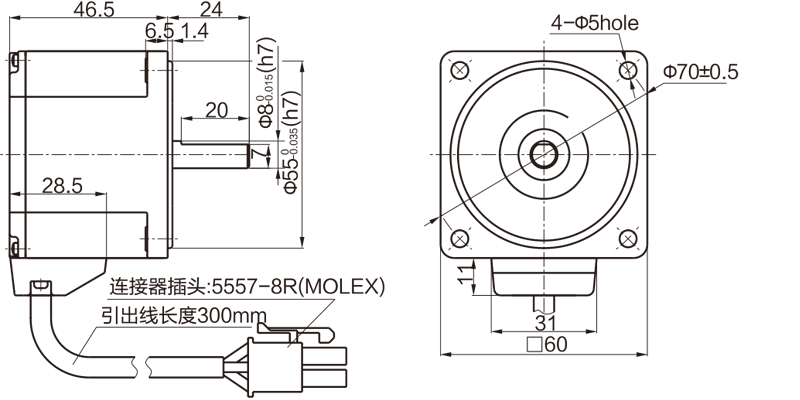

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

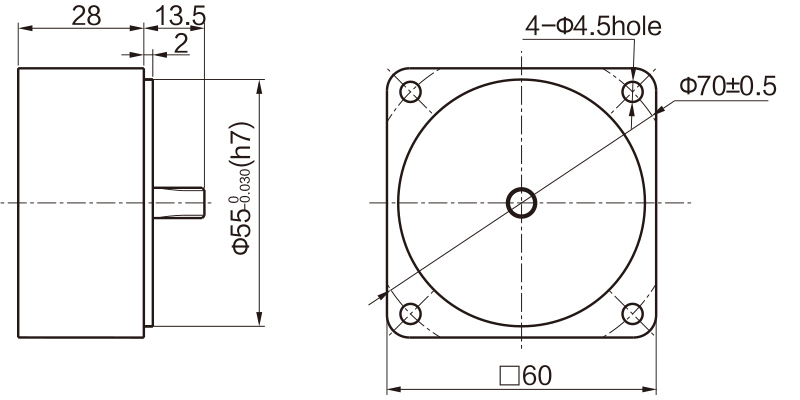

Decimal Gearhead

It can be connected to the GN pinion shaft type. 2GN10XK / Weight:0.2kg

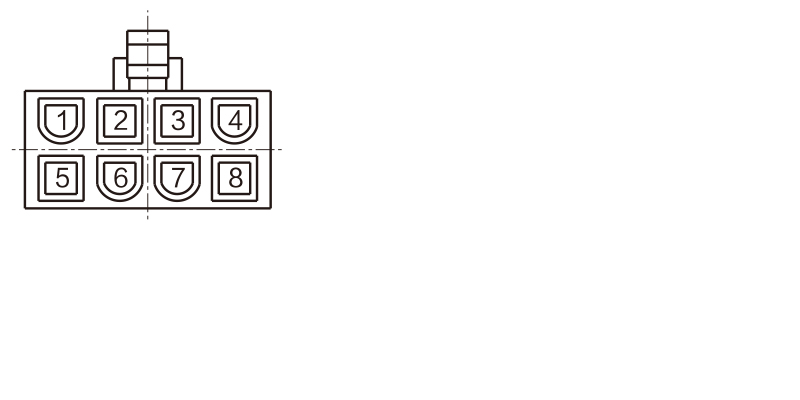

Wrie Plug hole Corresponding Signal Explanation

Plug Hole 1 2 3 4
Signal U W Hz Hu
Plug Hole 5 6 7 8
Signal V GND Hw Vcc

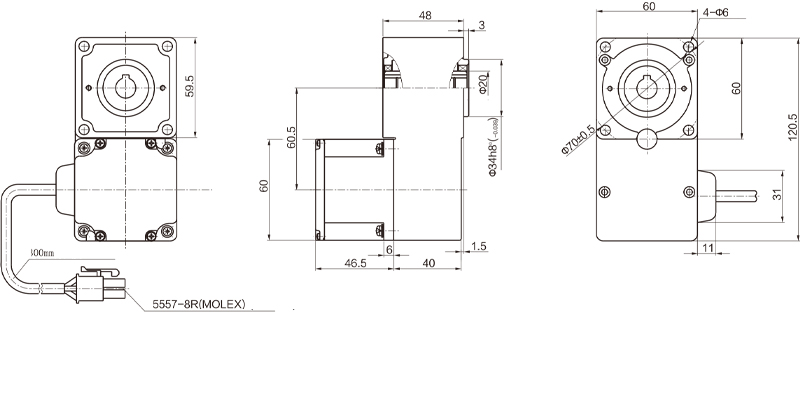

60 Pressure L Type Reducer

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight:Motor:0.9kg / Gearhead: 0.48kg

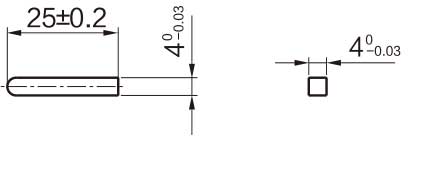

Key· Keyway (The Key is Included With The Gearhead)

Wrie Plug hole Corresponding Signal Explanation

Plug Hole 1 2 3 4
Signal U W Hz Hu
Plug Hole 5 6 7 8
Signal V GND Hw Vcc
