High Voltage Brushless Gear Motors

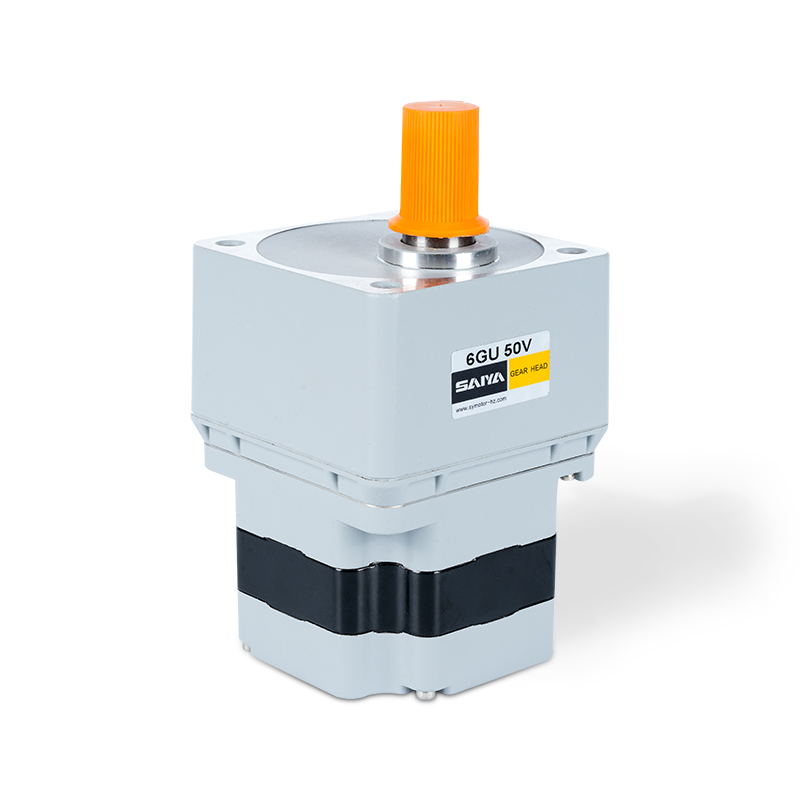

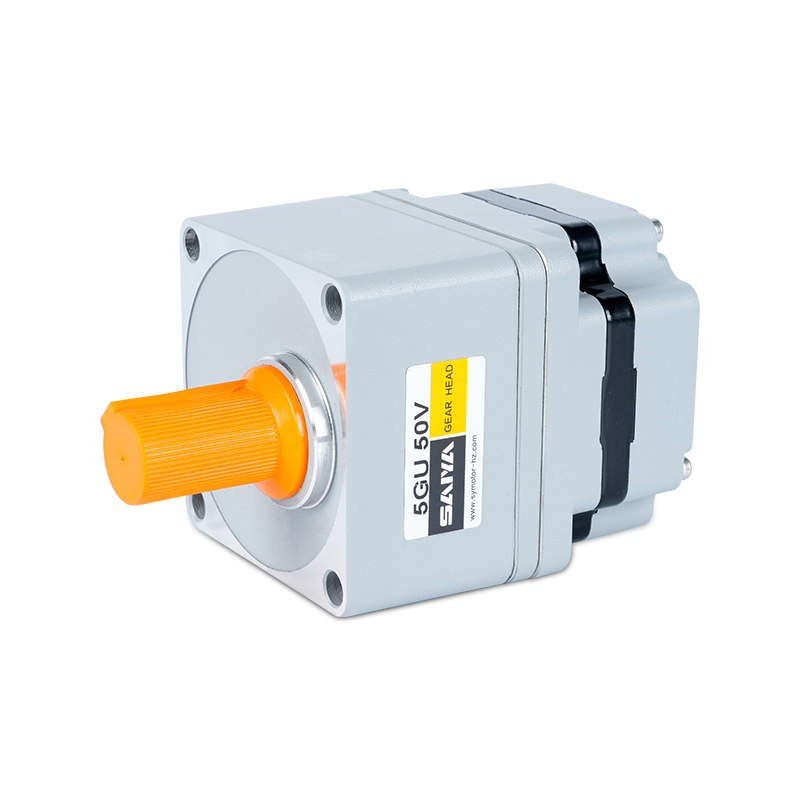

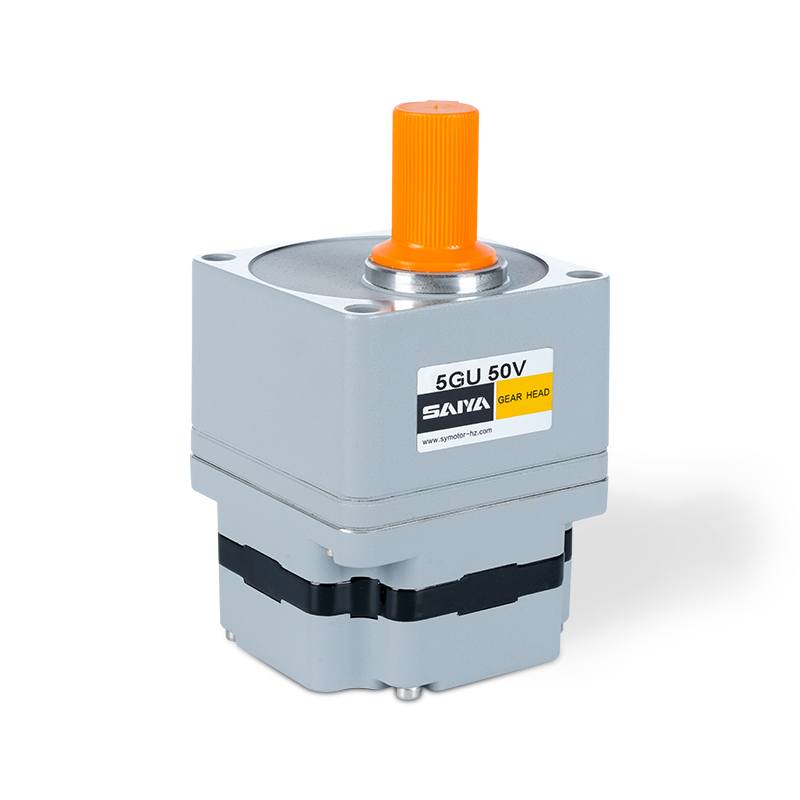

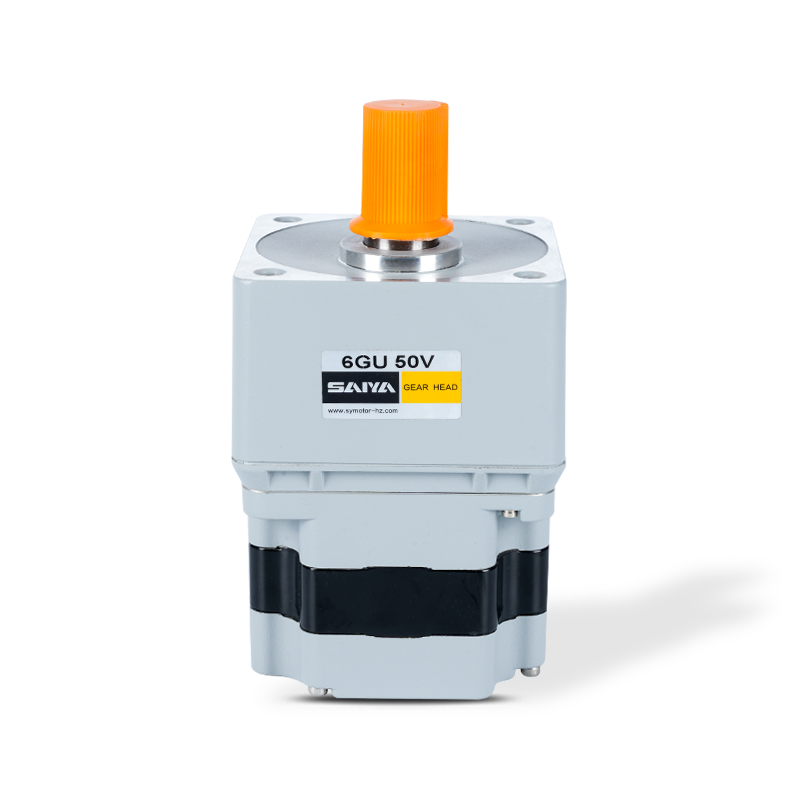

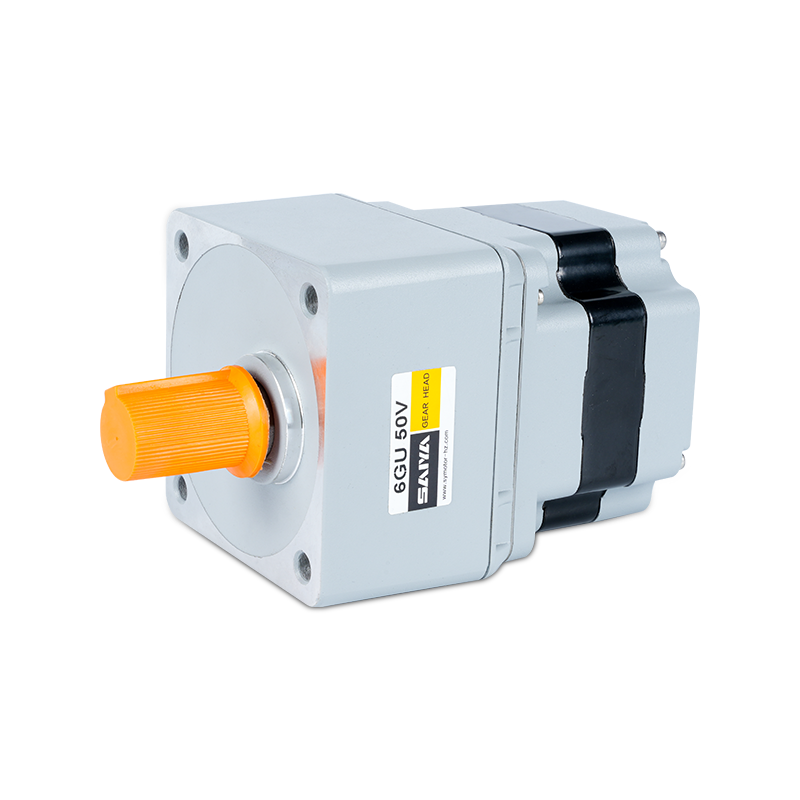

220V-230V Brushless Gear Motor

Voltage size: 220-230V，60mmx60mm-104mmx104mm

Rated power: 10-400W

Rated speed: 3000rpm

Rated current: 0.3-7.1A

Torque: 0.036-1.5N.M

No previous article | NEXT

+ Contact us + Catalogue Download Product Video

APPLICATION AREA

We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

Logistics Sorting
Automated Robots
laser cutting
Access control gate
Photovoltaic Power Station
Medical Devices
AGV

Product Description

The 220V-230VAC Brushless Gear Motor is a robust and efficient solution designed for various applications requiring precise and reliable motion control. This motor operates within a voltage range of 220V to 230V, making it suitable for standard power supplies. Its compact dimensions, ranging from 60mm x 60mm to 104mm x 104mm, allow for easy integration into space-constrained environments.

With a rated power output between 10W and 400W, this motor provides versatile performance capabilities. It is engineered to achieve a rated speed of 3000 rpm, ensuring swift and consistent operation. The motor's current draw ranges from 0.3A to 7.1A, indicating its efficient power consumption relative to its output.

The torque output of this brushless gear motor varies from 0.036N.m to 1.5N.m, which caters to different torque requirements across various applications. This range of torque makes it ideal for tasks that need both gentle and more forceful movements.

220V-230VAC Brushless Gear Motor combines high efficiency, compact size, and reliable performance, making it an excellent choice for industrial automation, robotics, and other precision-driven fields. Its capability to deliver consistent torque and speed while maintaining low power consumption ensures optimal functionality and energy efficiency.

High Voltage Motor Parameters

Model	Voltage V	Frequency Hz	Rated Power W	Rated Current A	Rated Speed RPM	Rated Torque N.m	Grade Protection IP
S4BLD25-220GN	220-230	50/60	25	0.40	2500	0.10	44
S4BLD25-220GN	100-120	50/60	25	0.80	2500	0.10	44
S4BLD40-220GN	220-230	50/60	40	0.50	2500	0.15	44
S4BLD40-220GN	100-120	50/60	40	1.00	2500	0.15	44
S4BLD60-220GN	220-230	50/60	60	0.65	2500	0.23	44
S4BLD60-220GN	100-120	50/60	60	1.30	2500	0.23	44
S4BLD25-220GN	220-230	50/60	25	0.40	2500	0.10	44
S4BLD25-220GN	100-120	50/60	25	0.80	2500	0.10	44
S4BLD40-220GN	220-230	50/60	40	0.50	2500	0.15	44
S4BLD40-220GN	100-120	50/60	40	1.00	2500	0.15	44
S4BLD60-220GN	220-230	50/60	60	0.65	2500	0.23	44
S4BLD60-220GN	100-120	50/60	60	1.30	2500	0.23	44
S5BLD40-220GN	220-230	50/60	40	0.50	2500	0.15	44
S5BLD40-220GN	100-120	50/60	40	1.00	2500	0.15	44
S5BLD60-220GN	220-230	50/60	60	0.70	2500	0.23	44
S5BLD60-220GN	100-120	50/60	60	1.40	2500	0.23	44
S5BLD90-220GN	220-230	50/60	90	0.96	2500	0.34	44
S5BLD90-220GN	100-120	50/60	90	1.90	2500	0.34	44
S5BLD120-220GN	220-230	50/60	120	1.40	2500	0.46	44
S5BLD120-220GN	100-120	50/60	120	2.80	2500	0.46	44
S6BLD400-220GU	220-230	50/60	400	3.50	2500	1.50	44
S6BLD400-220GU	100-120	50/60	400	7.10	2500	1.50	44

Motor voltage, power and speed will be customized according to his request under the allowed circumstance of adoptable dimension.

Type

High Voltage Motor

Type	Model
Type	Pinion Shaft	Round Shaft
Lead Wire Type	S2BLD10-220GN	S2BLD10-220A
	S2BLD15-220GN	S2BLD15-220A
	S2BLD25-220GN	S2BLD25-220A
	S4BLD25-220GN	S4BLD25-220A
	S4BLD40-220GN	S4BLD40-220A
	S4BLD60-220GN	S4BLD60-220A
	S5BLD40-220GU	S5BLD40-220A
	S5BLD60-220GU	S5BLD60-220A
	S5BLD60-220GU	S5BLD90-220A
	S5BLD120-220GU	S5BLD120-220A
	S6BLD400-110GU	S6BLD400-110A
	S6BLD400-220GU	S6BLD400-220A

Parallel Shaft Gearhead (Sold Separately)

Gearhead Type	Gearhead Model	Gear Ratio

Long Life●Low Noise	2GN□K 4GN□K 5GU□KB 6GU□KB	3、3.6、5、6、7.5、9、 12.5、15、18、25、30、 36、50、60、75、90、 100、120、150、180、200



	2GN10XK/4GN10XK/5GU10XK/6GU10XK(Decimal Gearhead)

Enter the gear ratio in the box within the model name.

Gear Motor-torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box()within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

The speed is calculated by dividing the motor's synchronous speed by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N·m.

60 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output shaft speed	1000	830	600	500	400	330	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
Allowance Torque	0.19	0.23	0.32	0.38	0.48	0.58	0.81	0.97	1.16	1.44	1.73	2.07	2.52	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00

80 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output shaft speed	1000	830	600	500	400	330	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
Allowance Torque	0.46	0.56	0.77	0.93	1.16	1.39	1.72	2.06	2.47	3.00	3.61	4.33	6.01	7.22	8.00	8.00	8.00	8.00	8.00	8.00	8.00

90 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output shaft speed	1000	830	600	500	400	330	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
Allowance Torque	0.92	1.10	1.54	1.86	2.32	2.78	3.44	4.12	4.94	6.00	7.22	8.66	12.0	14.4	18.0	19.9	20.0	20.0	20.0	20.0	20.0

104 Series Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output shaft speed	833	694	500	416	333	277	200	167	139	100	83	69	50	42	33	28	25	21	17	14	12.5
Allowance Torque	3.09	3.71	5.16	6.17	7.74	9.28	11.62	3.94	16.73	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

60 Series Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:0.5kg / Gearhead: 0.48kg

Motor Model

Gearhead Model

Gear Ratio

Dimension

Z2BLD25-□GN

2GN□K

3~18

25~200

Enter the gear ratio in the box(□)within the model name

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

It can be connected to the GN pinion shaft type. 2GN10XK / Weight:0.2kg

Wrie Plug hole Corresponding Signal Explanation

Plug Hole	1	2	3	4
Signal	U	W	Hz	Hu
Plug Hole	5	6	7	8
Signal	V	GND	Hw	Vcc

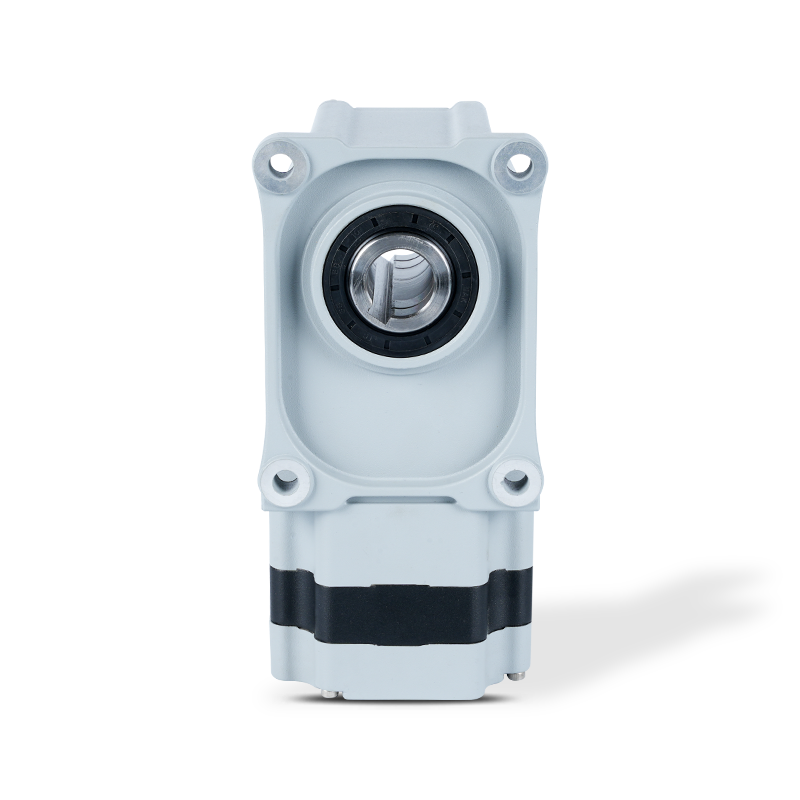

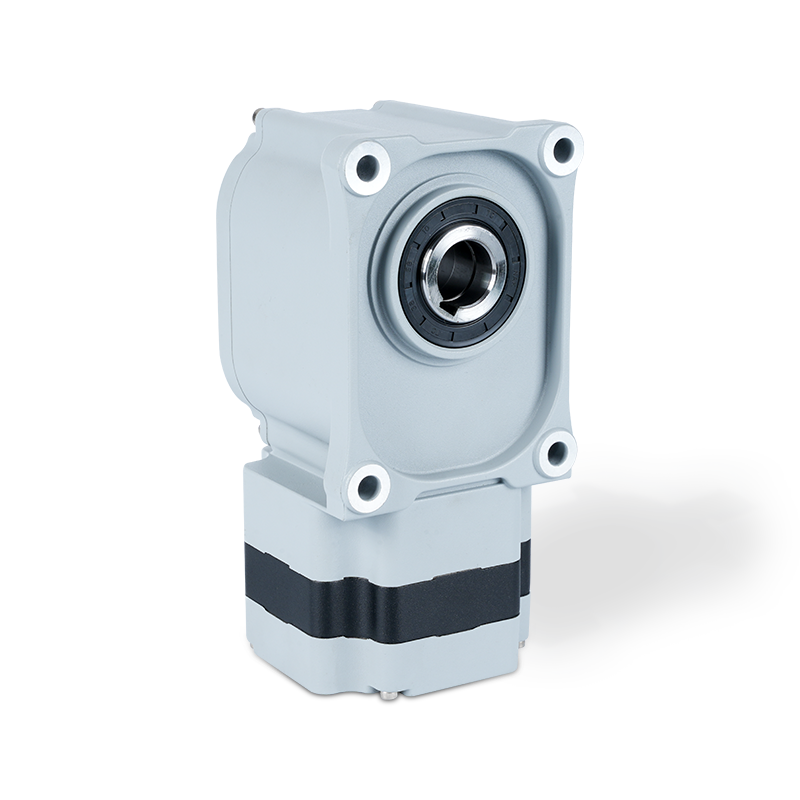

60 Pressure L Type Reducer
