Spur Planetary Gearbox

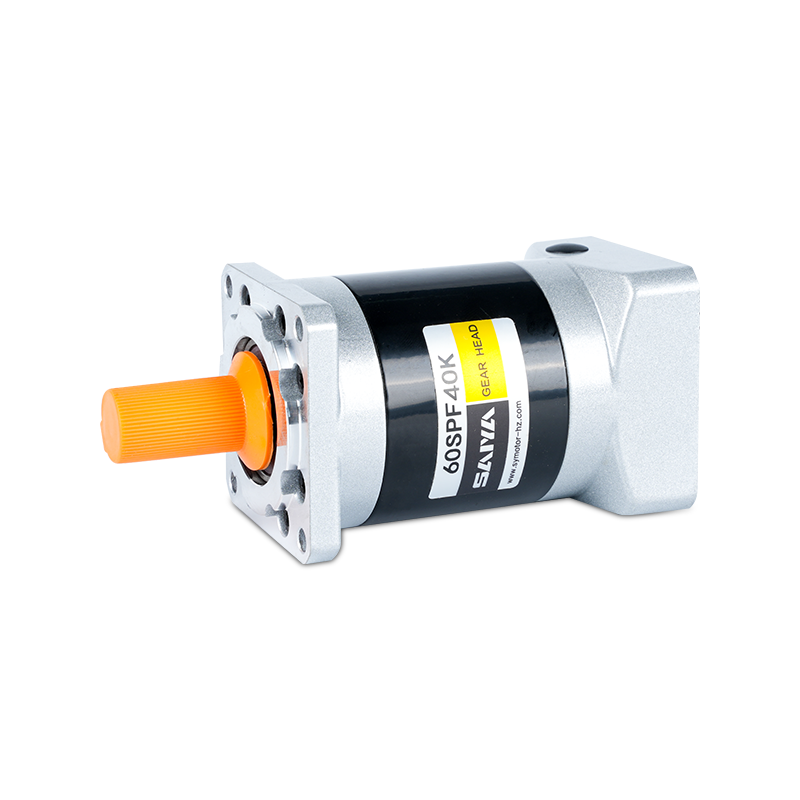

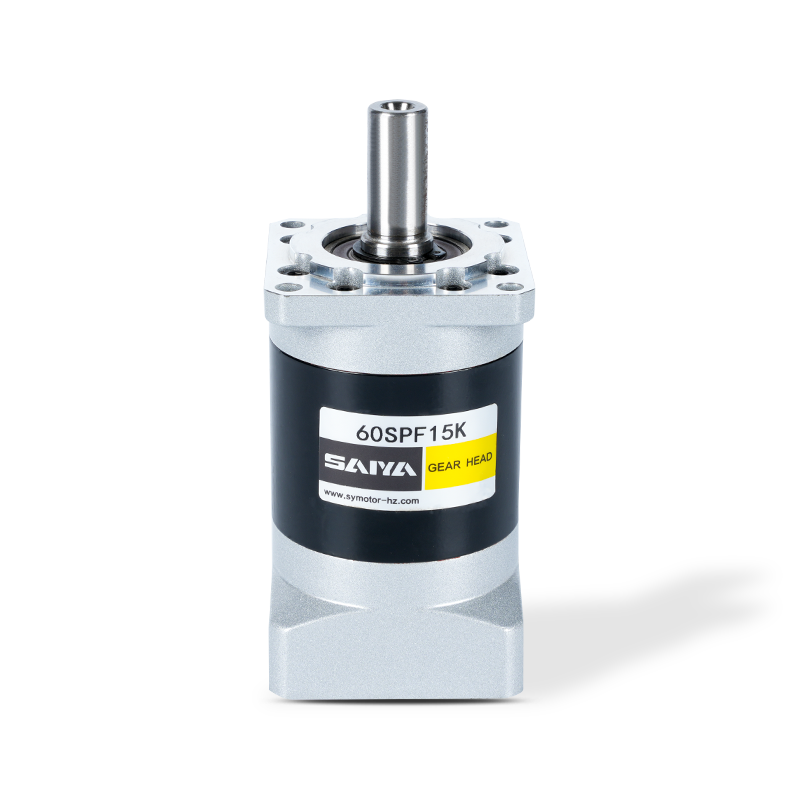

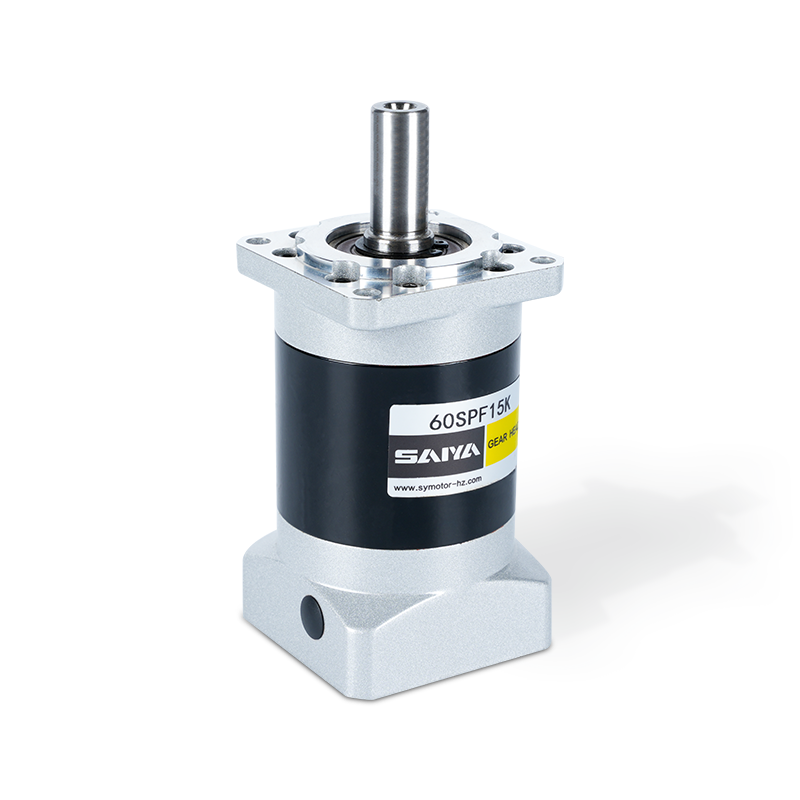

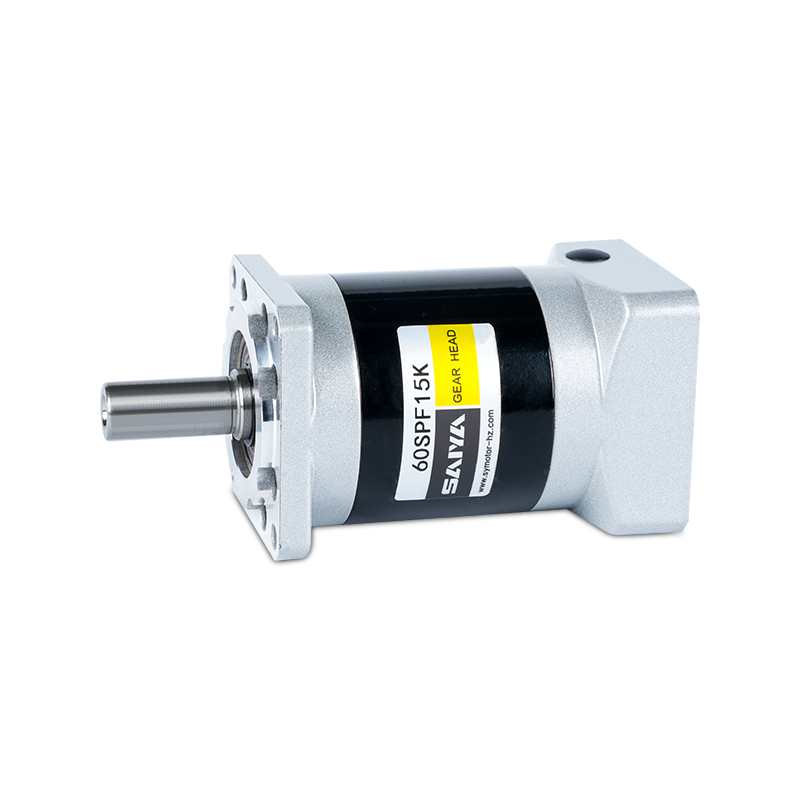

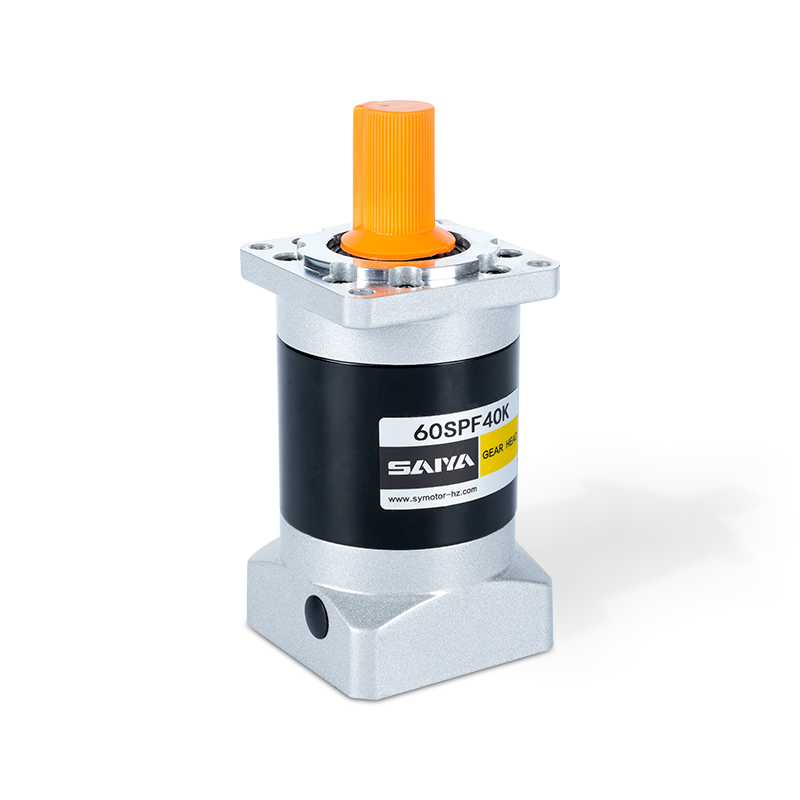

SPF Series 40 60 80 120 160 Spur Planetary Gearbox

Square output flange/Size range:  40-160mm

Operating temperature :  -25 ° C-90 ° C

Torque range:  4.5-800N.M



  • SPF Series 40 60 80 120 160 Spur Planetary Gearbox
  • SPF Series 40 60 80 120 160 Spur Planetary Gearbox
  • SPF Series 40 60 80 120 160 Spur Planetary Gearbox
  • SPF Series 40 60 80 120 160 Spur Planetary Gearbox
  • SPF Series 40 60 80 120 160 Spur Planetary Gearbox
  • SPF Series 40 60 80 120 160 Spur Planetary Gearbox
No previous article   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The SPF series are with square output flanges, accommodating dimensions from 40mm to 160mm. These flanges are engineered to excel in various industrial applications, offering reliable performance across a spectrum of requirements. With a temperature tolerance spanning from -25°C to 90°C, they are suitable for environments with diverse thermal conditions, ensuring operational resilience in both cold and moderate heat.

One of the key highlights of the SPF series lies in its impressive torque range, spanning from 4.5 N.M to a robust 800 N.M. This extensive torque capability empowers these flanges to handle a wide array of tasks, from delicate precision operations to heavy-duty applications demanding substantial force.

Designed with meticulous attention to detail, the SPF series embodies durability, precision, and versatility. Whether utilized in machinery, automation systems, or industrial processes, these flanges exhibit consistent performance and reliability, contributing to enhanced operational efficiency and productivity.

The square output design of these flanges ensures compatibility with various equipment configurations, facilitating seamless integration into existing systems. This adaptability streamlines installation processes and minimizes downtime, optimizing overall workflow efficiency.

SPF series represents a pinnacle of engineering excellence, combining robust construction, versatile functionality, and precise performance to meet the diverse needs of modern industrial environments.

TECHNICAL INFORMATION

Model Unit SP40 SP60 SP80 SP120 SP160 Gear ratio Stage
Rated Output Torque N.m 4.5 12 40 80 400 3 1
6 16 50 100 450 4
6 16 50 110 450 5
5 15 45 120 450 8
5 15 45 120 305 10
16.5 44 110 210 400 9 2
18 44 120 260 800 12
18 40 110 230 700 15
20 44 120 260 800 16
20 44 120 260 800 20
18 40 110 230 700 25
20 44 120 260 800 32
18 40 110 230 700 40
7.5 18 50 120 450 64
20 44 120 260 800 60 3
20 44 120 260 800 80
20 44 120 260 800 100
18 40 110 230 700 120
20 44 120 260 800 160
18 40 110 230 700 200
20 44 120 260 800 256
18 40 110 230 700 320
7.5 18 50 120 450 512

Model Number SP40 SP60 SP80 SP120 SP160
Torsional stiffness 0.7 1.8 4.5 12 38
Noise Level 55 58 60 65 70
Max Input speed(rpm) 10000 8000 6000 6000 6000
Recommend Input speed(rpm) 4500 4000 4000 4000 3000
Max ratial torque(N) 160 340 650 1500 4200
Max axial torque(N) 160 450 900 2100 6000
Operating temperature -25℃~90℃
IP P54
Lubrication Life time lubrication
Mount type Any direction

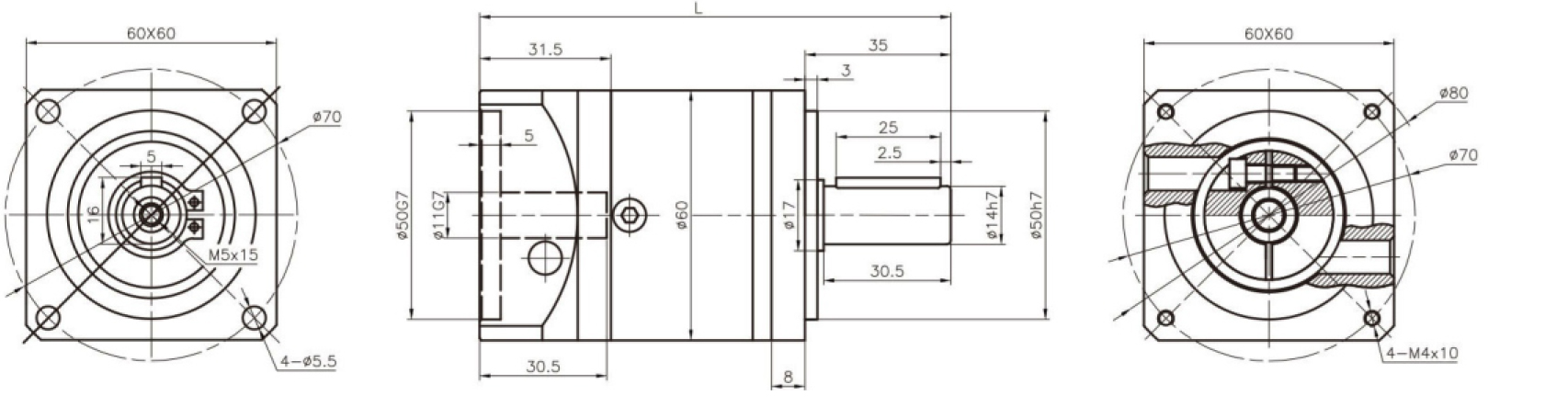

60SPF Series Dimensions

200W dimensions


Total length 1-Stage 2-Stage 3-Stage
L 117.1 135.1 138.5

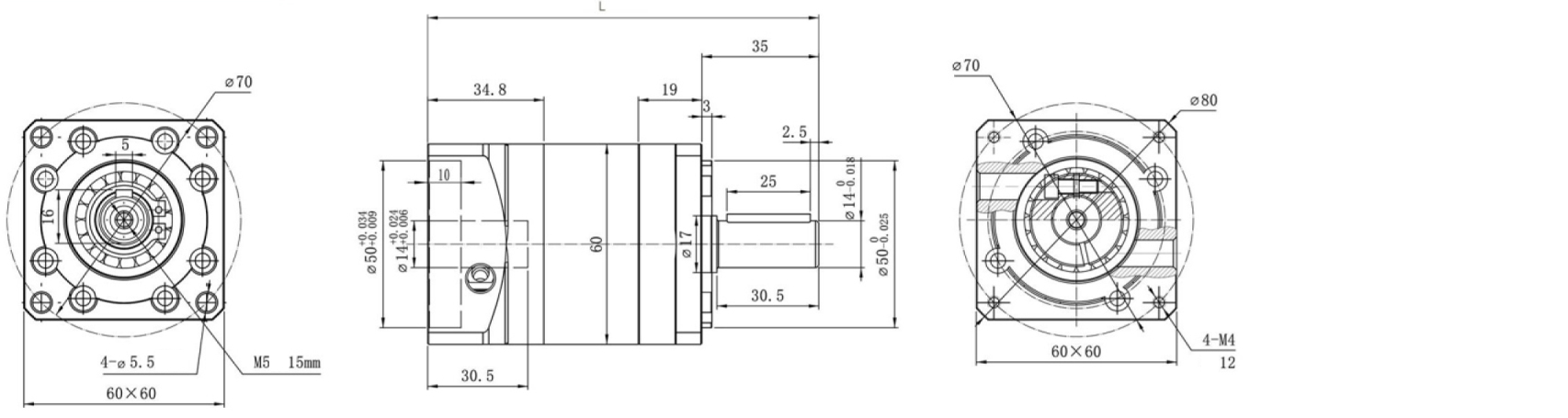

400W dimensions


Total length 1-Stage 2-Stage 3-Stage
L 117.1 135.1 138.5

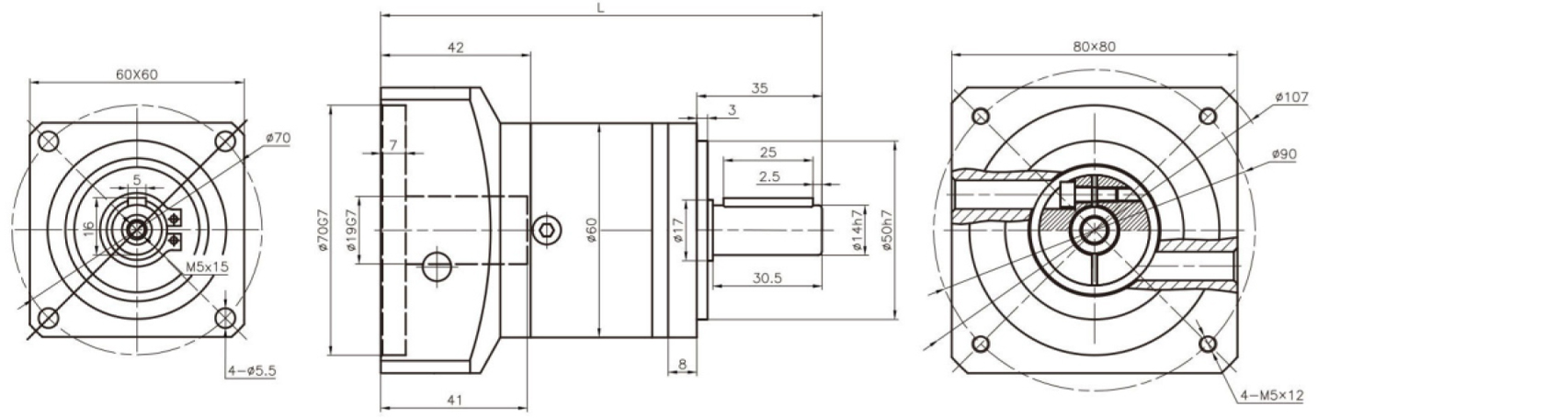

750W dimensions(second choice)


Total length 1-Stage 2-Stage
L 123.5 136.5

80SPF Series Dimensions

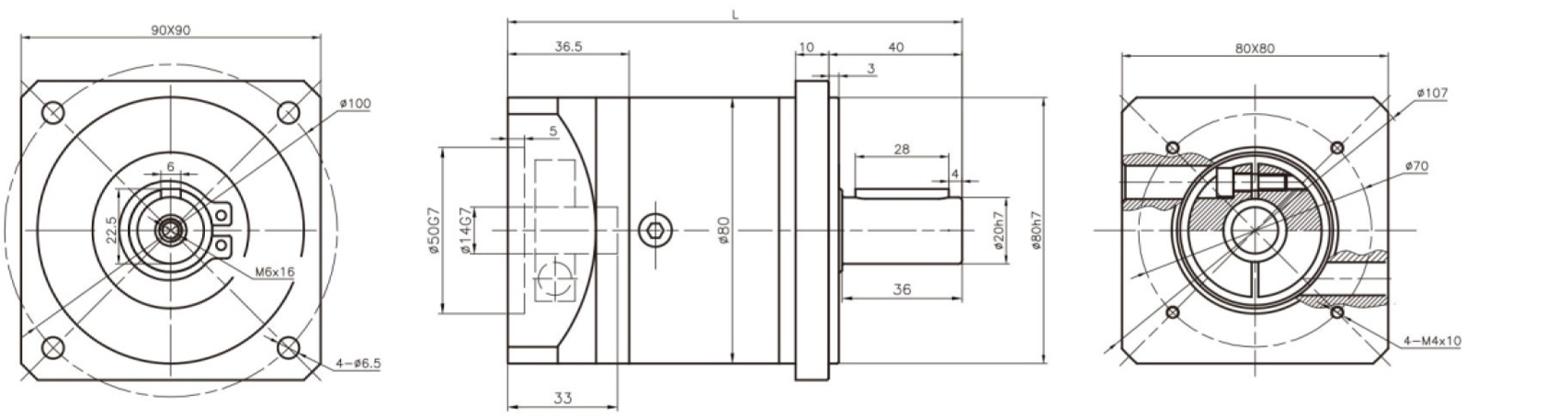

400W dimensions


Total length 1-Stage 2-Stage 3-Stage
L 136.5 154.5 172

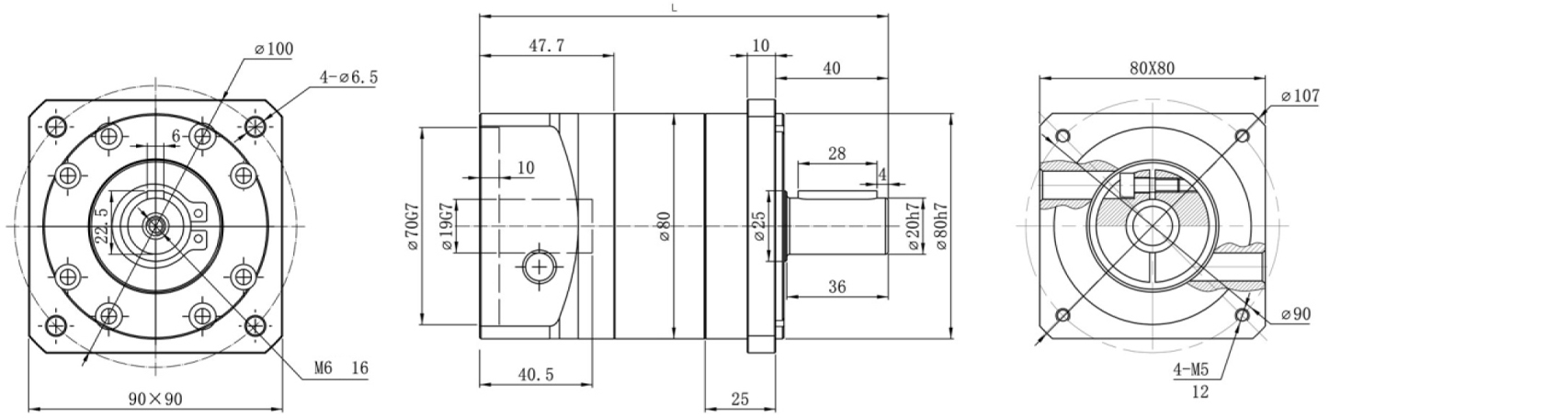

750W dimensions


Total length 1-Stage 2-Stage 3-Stage
L 145 166.5 179

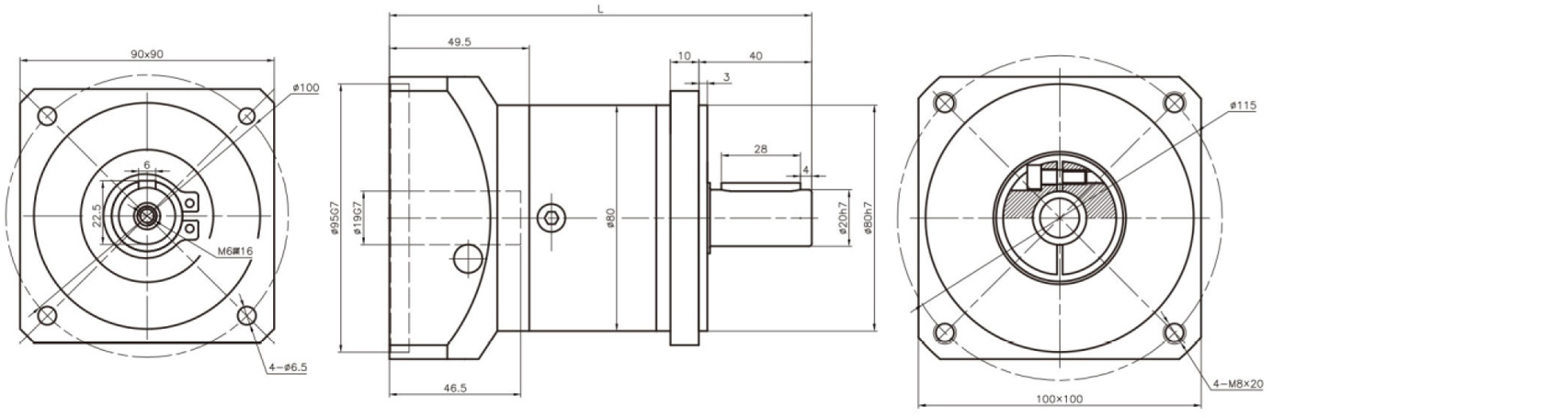

1000W dimensions (second choice)


Total length 1-Stage 2-Stage
L 163.5 181.5

120SPF Series Dimensions

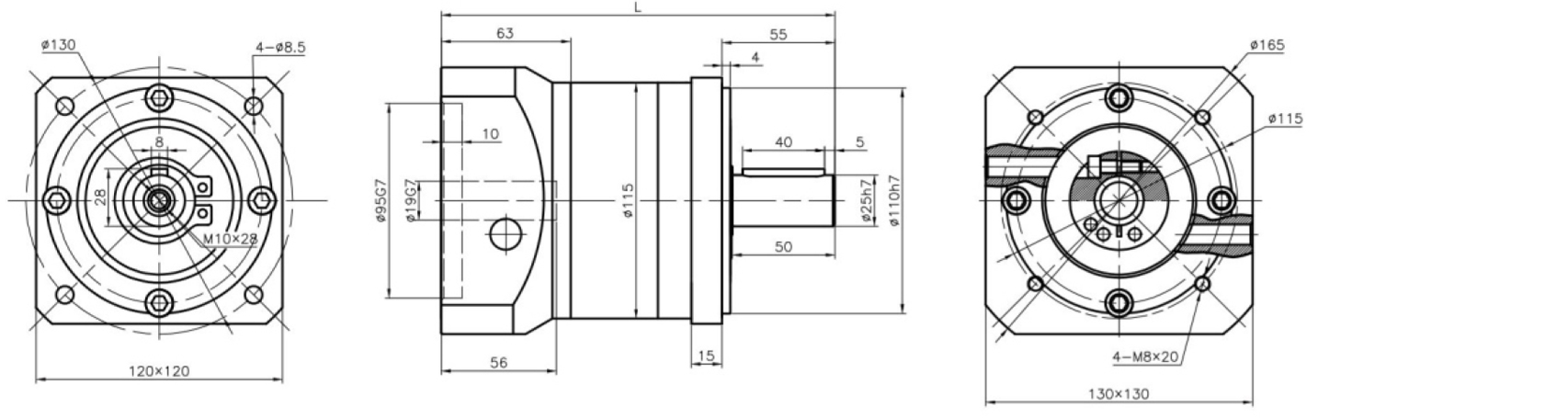

1000W dimensions


Total length 1-Stage 2-Stage 3-Stage
L 191.7 223.7 243

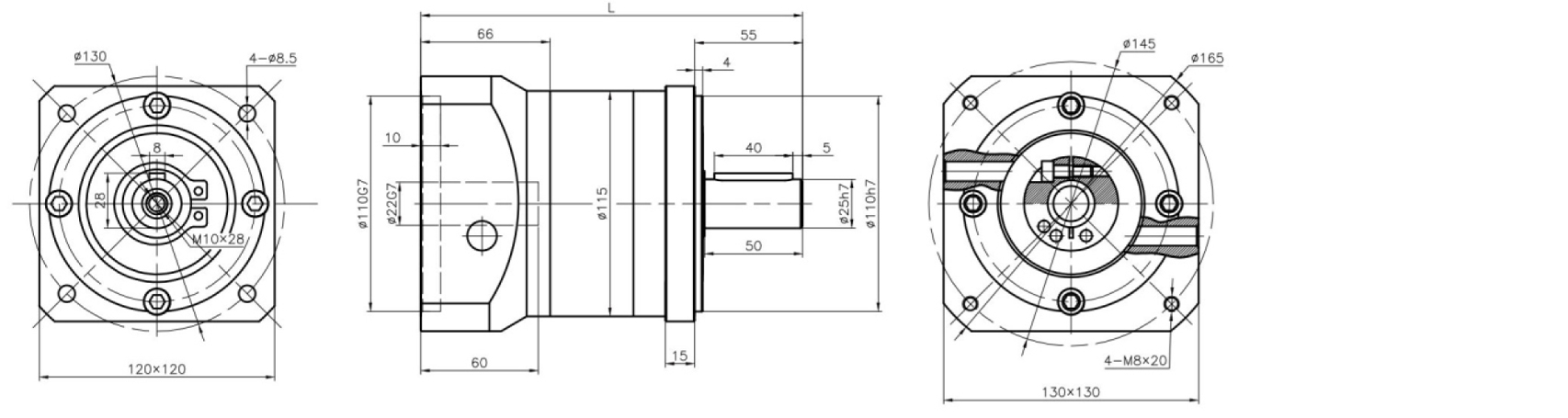

2000W dimensions


Total length 1-Stage 2-Stage 3-Stage
L 194.7 227.7 247

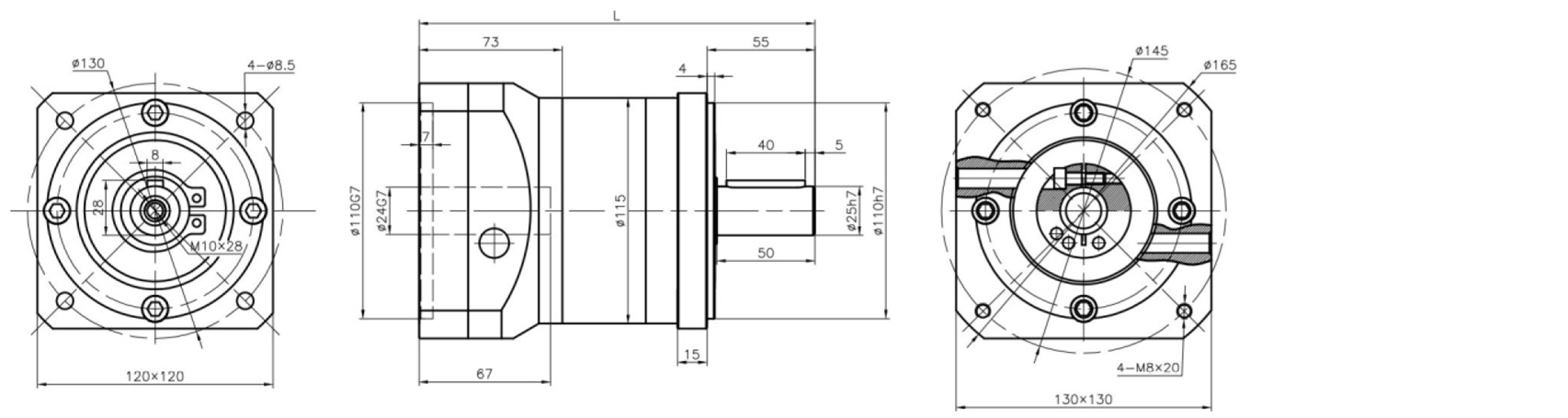

3000W dimensions(second choice)


Total length 1-Stage 2-Stage
L 201.7 235.2

160SPF Series Dimensions

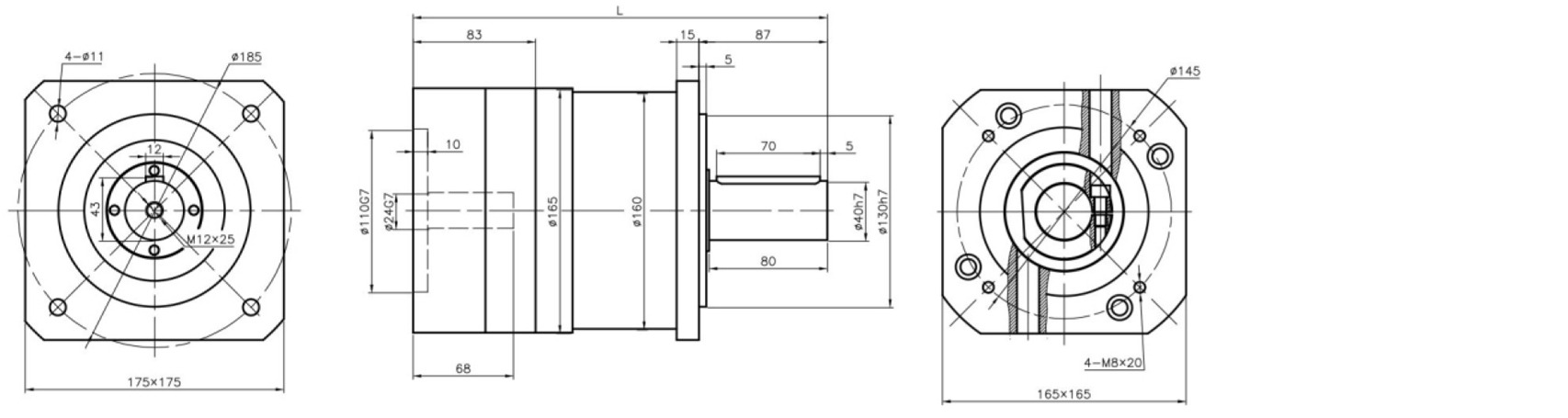

3000W dimensions


Total length 1-Stage 2-Stage 3-Stage
L 280.5 321.5 363

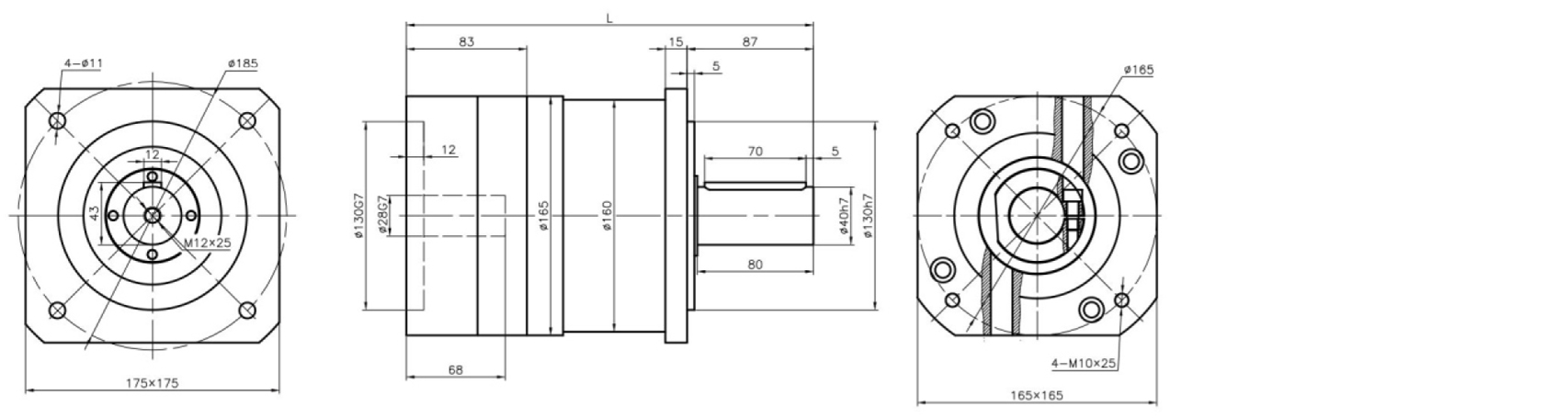

4000W dimensions


Total length 1-Stage 2-Stage 2-Stage
L 280.5 321.5 363

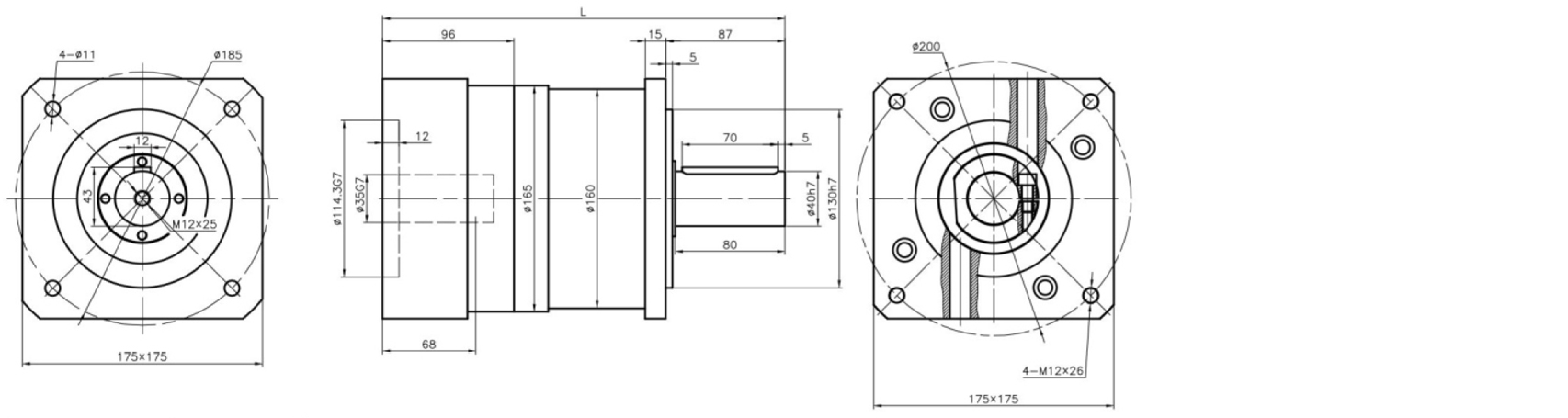

5000W dimensions(second choice)


Total length 1-Stage 2-Stage
L 293.5 334.5
