Induction AC Gear Motors

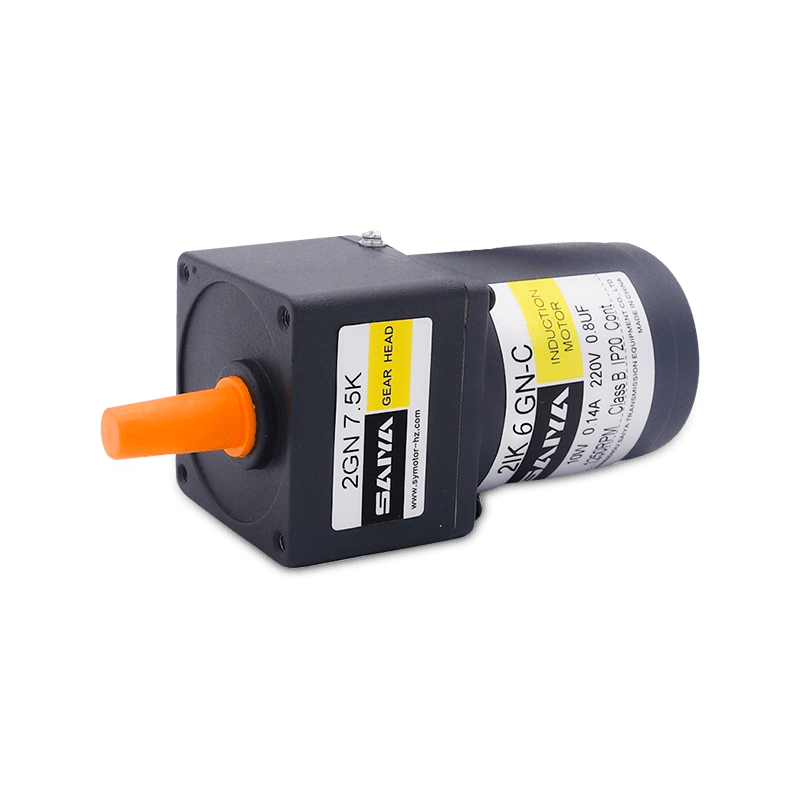

6W Induction AC Gear Motors

Voltage size： 6W, 60mmx60mm

Operating voltage： 1ph 110V-3ph 220V

Capacitance： 0.8-3.5uf

The speed is based on the asynchronous speed of the motor (50Hz: 1200r/min, 60Hz: 1450r/min)

  • 6W Induction AC Gear Motors
  • 6W Induction AC Gear Motors
PREV   |   No next article

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

This 6W Induction AC Gear Motor is an efficient, compact and reliable small motor suitable for a wide range of industrial and household applications.Motor frame 60mm x 60mm  making it easy to install in space-constrained environments. It can be used in voltages ranging from single-phase 110V to three-phase 220V, and is highly adaptable to meet the needs of different power systems.

Equipped with capacitors  between 0.8 and 3.5uf to ensure smooth and efficient operation of the motor. Its speed is based on the asynchronous speed of the motor, which is 1200 revolutions per minute (r/min) at 50Hz and 1450 revolutions per minute (r/min) at 60Hz, which can meet the speed requirements in different working environments.

Due to its high efficiency and reliability, this motor is suitable for a variety of equipment and application scenarios, including automation equipment, conveyor belts, packaging machinery and printing equipment. It can still provide sufficient power under low power consumption and is an ideal drive choice for energy-saving equipment. The use of high-quality materials and precision manufacturing processes gives the motor durability and stability, reducing maintenance costs and downtime.

Specs      Continuous Rating

Model·Type

Lead Wire Type

Output

power

W

Voltage



V

Frequency



Hz

Current



A

Starting

Torque

mN.m

Rated

Torgue

mN,m

Rated

Speed

r/min

Capacitor



μF

Pinion Shaft

Round Shaft

2IK6GN-A

2IK6A-A

6

1ph 100

50

0.240

55

48

1200

3.5

60

0.250

50

40

1450

2IK6GN-E

2IK6A-E

6

1ph 110

60

0.160

40

40

1450

2.0

1ph 120

0.180

2IK6GN-C

2IK6A-C

6

1ph 220

50

0.130

50

48

1200

0.8

1ph 230

0.140

40

1450

2IK6GN-H

2IK6A-H

6

1ph 220

60

0.130

55

40

1450

0.8

1ph 230

0.140

2IK6GN-S

2IK6A-S

6

3ph 220

50

0.076

85

48

1200



60

0.065

70

40

1450

2IK6GN-S3

2IK6A-S3

6

3ph 380

50

0.044

85

48

1200



60

0.038

70

40

1450

When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.

Note:"-A"it means the voltage 110V,the assembly capacitor vaule it is according the labe.

Type

Motor

Type

Model

Pinion Shaft

Round Shaft

Lead

Wire

Type

2IK6GN-A

2IK6A-A

2IK6GN-E

2IK6A-E

2IK6GN-C

2IK6A-C

2IK6GN-H

2IK6A-H

2IK6GN-S

2IK6A-S

2IK6GN-S3

2IK6A-S3

Parallel Shaft Gearhead (Sold Separately)

Gearhead Type

Gearhead Model

Gear Ratio



Long Life ·Low

Noise



2GN□K

3、3.6、5、6、7.5、9、10、

12.5、15、18、20、25、30、 36、40、50、60、75、90、  100、120、150、180、200

2GN10XK(Decimal Gearhead )

Enter the gear ratio in the box (□)within the model name

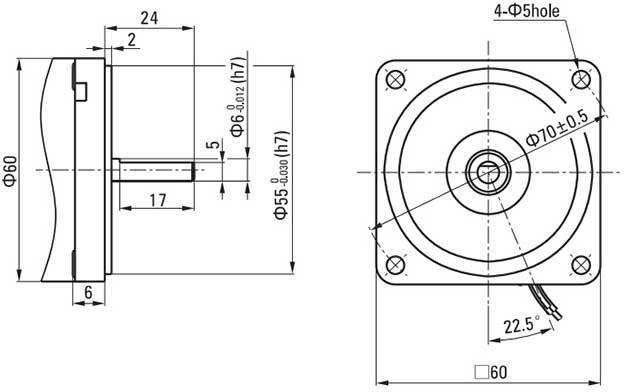

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

Can be connected to GN pinion shaft type
Weight:0.2kg

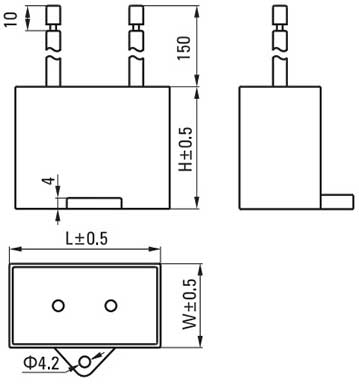

Formal Dimension Of Capacitor

Model



Capacitor Model





L





W





H

Pinion Shaft

Round Shaft

2IK6GN-A

2IK6A-A

ZD35CFAUL

38

19.5

31

2IK6GN-E

2IK6A-E

ZD20CFAUL

36

15.0

25

2IK6GN-C

2IK6A-C

ZD08CFAUL

36

10.5

20

Note: Conventional capacitor is a lead wire type.Inserted 187#is optional

Wiring Diagram

The direction of motor rotation is as viewed from the shaft end of the motor.CW represents the clockwise direction, while CCW represents the counterclockwise direction.

The Name indicated in the list is the pinion shaft type, also valid for the equivalent round shaft type.

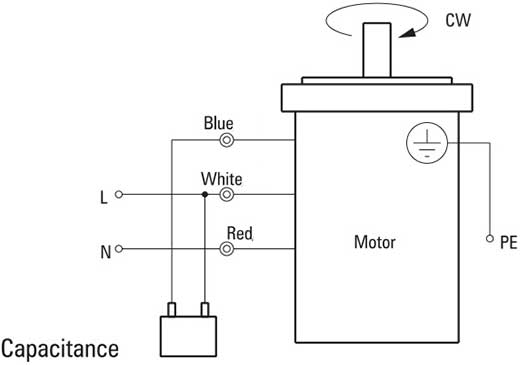

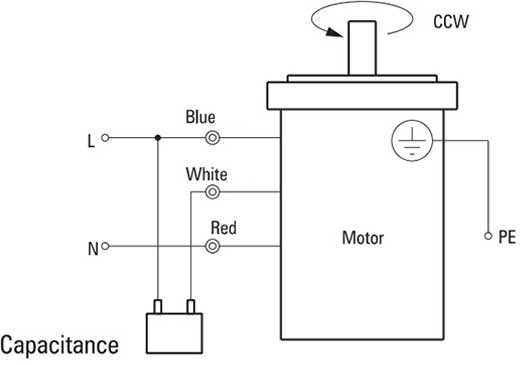

2IK6GN-A、2IK6GN-E、2IK6GN-C、2IK6GN-H

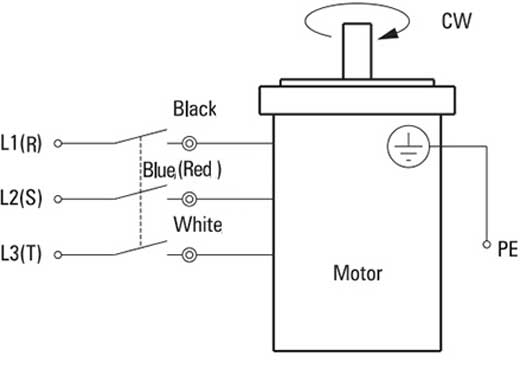

2IK6GN-S(S3)

Clockwise(CW)

Anti-clockwise(CCW)

Clockwise(CW)


To change the rotation direction change any two connections among R,S and T

Note:

Change the direction of single-phase motor rotation only after bringing the motor to a stop.

If an attempt is made to change the direction of rotation while the motor is rotating, the motor may ignore the reversing command or change its direction of rotation after some delay.

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box (□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

The speed is calculated by dividing the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead (gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N-m.

Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

Type

Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

90

100

120

150

180

200

Speed r/min

50Hz

500

417

300

250

200

166

150

120

100

83

75

60

50

41

37

30

25

20

16

15

12.5

10

8.3

7.5

60Hz

600

500

360

300

240

200

180

144

120

100

90

72

60

50

45

36

30

24

20

18

15

12

10

9



2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3



2GN□K

50Hz

0.12

0.14

0.19

0.23

0.29

0.35

0.39

0.49

0.58

0.70

0.75

0.88

1.10

1.30

1.39

1.60

1.90

2.40

2.90

3.00

3.00

3.00

3.00

3.00

1.22

1.43

1.94

2.35

2.96

3.57

3.98

5.00

5.92

7.14

7.65

8.98

11.2

13.3

14.2

16.3

19.4

24.5

29.6

30.0

30.0

30.0

30.0

30.0

60Hz

0.10

0.12

0.16

0.19

0.24

0.29

0.32

0.4

0.49

0.58

0.62

0.73

0.88

1.10

1.15

1.30

1.60

2.00

2.40

2.60

3.00

3.00

3.00

3.00

1.02

1.22

1.63

1.94

2.45

2.96

3.26

4.18

5.00

5.92

6.32

7.45

8.98

11.2

11.7

13.3

6.3

20.4

24.5

26.5

30.0

30.0

30.0

30.0

To Allow The Hoisting Of The Load Alow Axial Load

Motor (Round shaft)→P215

Gearhead→P215

J Permissible Load Inertia J For Gearhead

→215 page→P215

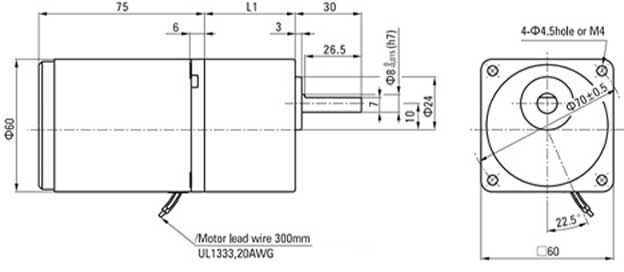

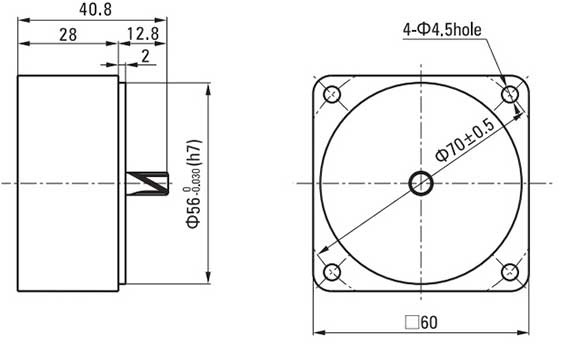

Dimensions (Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:0.75kg / Gearhead:0.4kg

Motor Model

Gearhead Model

Gear Ratio

L1

2IK6GN-A

2IK6GN-E

2IK6GN-C

2IK6GN-H

2IK6GN-S

2IK6GN-S3

2GN□K

3~200

41.5

Enter the gear ratio in the box (□)within the model name.

Gear ratio 3~18,short case is possible (L1=32)
