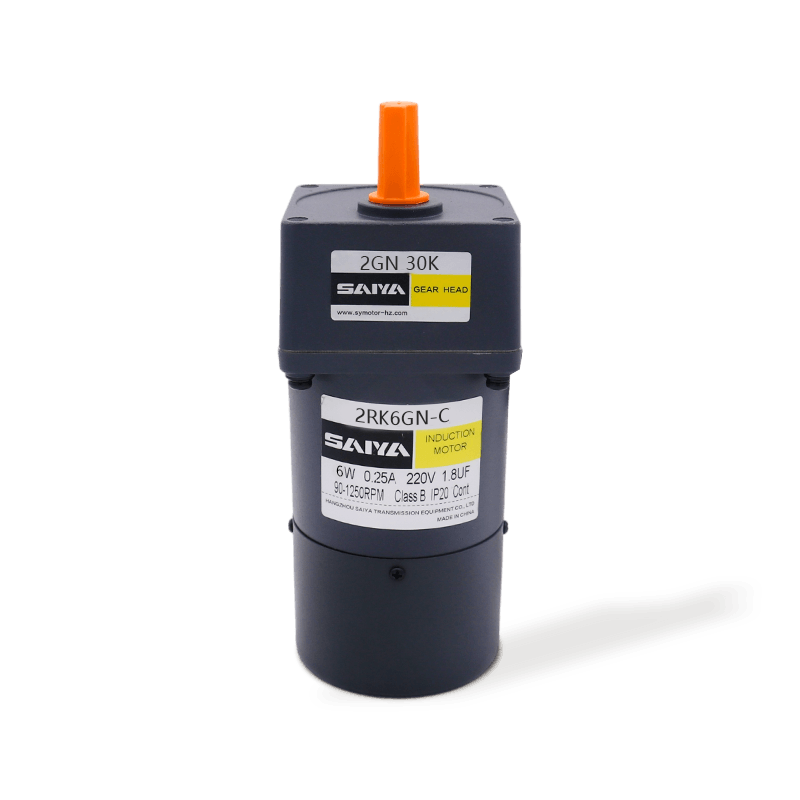

6W Reversible AC Gear Motors

Voltage size: 6W, 60mmx60mm

With brakes/voltage used: 1ph 110-1ph 230V

Capacitance: 1-4uf

The speed is based on the asynchronous speed of the motor (50Hz: 1200r/min, 60Hz: 1450r/min)



  • 6W Reversible AC Gear Motors
PREV   |   No next article

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

6W reversible AC gear motors are compact yet powerful devices, ideal for applications requiring precise speed and torque control. With a frame size of 60mm x 60mm, these motors are designed to fit into tight spaces without compromising on performance. They come equipped with a braking system to ensure quick and accurate stopping, enhancing safety and control in various applications.

The motors are versatile in terms of power supply, operating on a single-phase voltage of either 110V or 230V. This flexibility makes them suitable for use in different regions and under varying electrical conditions. Additionally, they require a capacitor with a capacity ranging from 1 to 4 microfarads (μF) to start and run efficiently.

These motors operate at asynchronous speeds, which vary depending on the frequency of the electrical supply::1200rmp for 50Hz and 1450 for 60HZ. This difference in speed allows the motors to be used in a wide range of applications, providing consistent performance across different environments and requirements.

6W reversible AC gear motors are reliable, efficient, and adaptable, making them an choice for precision-driven tasks in various industrial and commercial settings.

Specs      Continuous Rating

Model·Type

Lead Wire Type

Output

power

W

Voltage



V

Frequency



Hz

Current



A

Starting

Torque

mN.m

Rated

Torgue

mN,m

Rated

Speed

r/min

Capacitor



μF

Pinion Shaft

Round Shaft

2IK6GN-A

2IK6A-A

6

1ph 100

50

0.240

55

48

1200

3.5

60

0.250

50

40

1450

2IK6GN-E

2IK6A-E

6

1ph 110

60

0.160

40

40

1450

2.0

1ph 120

0.180

2IK6GN-C

2IK6A-C

6

1ph 220

50

0.130

50

48

1200

0.8

1ph 230

0.140

40

1450

2IK6GN-H

2IK6A-H

6

1ph 220

60

0.130

55

40

1450

0.8

1ph 230

0.140

2IK6GN-S

2IK6A-S

6

3ph 220

50

0.076

85

48

1200



60

0.065

70

40

1450

2IK6GN-S3

2IK6A-S3

6

3ph 380

50

0.044

85

48

1200



60

0.038

70

40

1450

When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.

Note:"-A"it means the voltage 110V,the assembly capacitor vaule it is according the labe.

Type

Motor

Type

Model

Pinion Shaft

Round Shaft

Lead

Wire

Type

2IK6GN-A

2IK6A-A

2IK6GN-E

2IK6A-E

2IK6GN-C

2IK6A-C

2IK6GN-H

2IK6A-H

2IK6GN-S

2IK6A-S

2IK6GN-S3

2IK6A-S3

Parallel Shaft Gearhead (Sold Separately)

Gearhead Type

Gearhead Model

Gear Ratio



Long Life ·Low

Noise



2GN□K

3、3.6、5、6、7.5、9、10、

12.5、15、18、20、25、30、 36、40、50、60、75、90、  100、120、150、180、200

2GN10XK(Decimal Gearhead )

Enter the gear ratio in the box (□)within the model name

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Decimal Gearhead

Can be connected to GN pinion shaft type
Weight:0.2kg

Formal Dimension Of Capacitor

Model



Capacitor Model





L





W





H

Pinion Shaft

Round Shaft

2IK6GN-A

2IK6A-A

ZD35CFAUL

38

19.5

31

2IK6GN-E

2IK6A-E

ZD20CFAUL

36

15.0

25

2IK6GN-C

2IK6A-C

ZD08CFAUL

36

10.5

20

Note: Conventional capacitor is a lead wire type.Inserted 187#is optional

Wiring Diagram

The direction of motor rotation is as viewed from the shaft end of the motor.CW represents the clockwise direction, while CCW represents the counterclockwise direction.

The Name indicated in the list is the pinion shaft type, also valid for the equivalent round shaft type.

2IK6GN-A、2IK6GN-E、2IK6GN-C、2IK6GN-H

2IK6GN-S(S3)

Clockwise(CW)

Anti-clockwise(CCW)

Clockwise(CW)


To change the rotation direction change any two connections among R,S and T

Note:

Change the direction of single-phase motor rotation only after bringing the motor to a stop.

If an attempt is made to change the direction of rotation while the motor is rotating, the motor may ignore the reversing command or change its direction of rotation after some delay.

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box (□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

The speed is calculated by dividing the motor's synchronous speed (50Hz:1500r/min、60Hz:1800r/min) by the gear ratio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead (gear ratio:10)between the gearhead and motor. In that case, the permissible torque is 3N-m.

Allowance Torque Unit: Upside(N.m)/ Belowside(kgf.cm)

Type

Motor/Gearhead

Gear Ratio

3

3.6

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

90

100

120

150

180

200

Speed r/min

50Hz

500

417

300

250

200

166

150

120

100

83

75

60

50

41

37

30

25

20

16

15

12.5

10

8.3

7.5

60Hz

600

500

360

300

240

200

180

144

120

100

90

72

60

50

45

36

30

24

20

18

15

12

10

9



2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3



2GN□K

50Hz

0.12

0.14

0.19

0.23

0.29

0.35

0.39

0.49

0.58

0.70

0.75

0.88

1.10

1.30

1.39

1.60

1.90

2.40

2.90

3.00

3.00

3.00

3.00

3.00

1.22

1.43

1.94

2.35

2.96

3.57

3.98

5.00

5.92

7.14

7.65

8.98

11.2

13.3

14.2

16.3

19.4

24.5

29.6

30.0

30.0

30.0

30.0

30.0

60Hz

0.10

0.12

0.16

0.19

0.24

0.29

0.32

0.4

0.49

0.58

0.62

0.73

0.88

1.10

1.15

1.30

1.60

2.00

2.40

2.60

3.00

3.00

3.00

3.00

1.02

1.22

1.63

1.94

2.45

2.96

3.26

4.18

5.00

5.92

6.32

7.45

8.98

11.2

11.7

13.3

6.3

20.4

24.5

26.5

30.0

30.0

30.0

30.0

To Allow The Hoisting Of The Load Alow Axial Load

Motor (Round shaft)→P215

Gearhead→P215

J Permissible Load Inertia J For Gearhead

→215 page→P215

Dimensions (Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:0.75kg / Gearhead:0.4kg

Motor Model

Gearhead Model

Gear Ratio

L1

2IK6GN-A

2IK6GN-E

2IK6GN-C

2IK6GN-H

2IK6GN-S

2IK6GN-S3

2GN□K

3~200

41.5

Enter the gear ratio in the box (□)within the model name.

Gear ratio 3~18,short case is possible (L1=32)
