  • 10W Reversible AC Gear Motors
Reversible AC Gear Motors

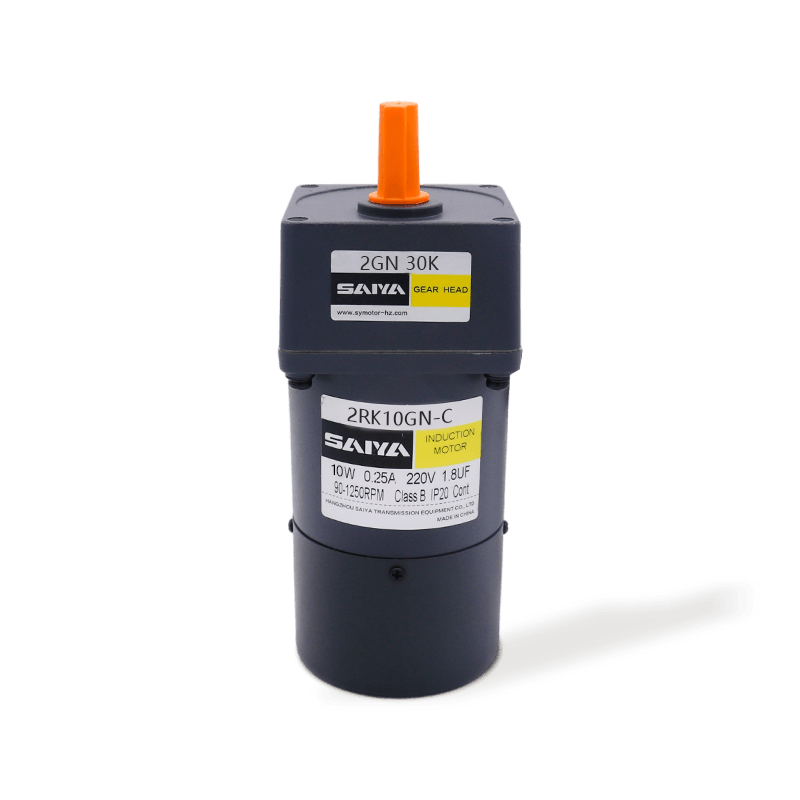

10W Reversible AC Gear Motors

Voltage size: 10W, 60mmx60mm

With brake/using current: 0.145-0.265A

Rated torque: 40-60mN.m

The speed is based on the asynchronous speed of the motor (50Hz: 1200r/min, 60Hz: 1450r/min)



  • 10W Reversible AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

10W Reversible AC gear motors offer versatile and efficient solutions for various applications requiring precise control and reliability. These motors, with frame dimensions of 60mm x 60mm, come equipped with a brake system, ensuring enhanced safety and control. The operational current ranges between 0.145A and 0.265A, making them energy-efficient while providing robust performance.

The rated torque range from between 40mN.m and 60mN.m, suitable for applications needing moderate torque levels. These motors are designed to operate at asynchronous speeds, offering 1200 RPM at 50Hz and 1450 RPM at 60Hz. This variability in speed allows them to be adaptable to different operational requirements and frequencies.

The inclusion of a brake adds to their functionality, enabling precise stopping and holding capabilities, crucial in applications where stopping accuracy is essential. The compact size and efficient design make these motors ideal for use in small machinery, automation systems, and other equipment where space is at a premium and performance cannot be compromised.

10W reversible AC gear motors with brake systems provide a reliable, efficient, and versatile solution for various applications, delivering consistent performance with controlled speed and torque.

INDUCTION MOTOR SPECS

Model·Type
Lead Wire Type		 Output power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting Torque
mN.m		 Rated Torque
mN.m		 Rated Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
2IK10GN-A 2IK10A-A 10 1ph 100 50 0.240 55 48 1200 3.5
60 0.250 50 40 1450
2IK10GN-E 2IK10A-E 10 1ph 110 60 0.160 40 40 1450 2
1ph 120 0.180
2IK10GN-C 2IK10A-C 10 1ph 220 50 0.130 50 48 1200 0.8
1ph 230 0.140 40 1450
2IK10GN-H 2IK10A-H 1ph 220 60 0.130 55 40 1450
1ph 230 0.140
2IK10GN-S 2IK10A-S 10 3ph 220 50 0.076 85 48 1200 -
60 0.065 70 40 1450

REUERSIBE MOTOR SPECS

Model·Type
Lead Wire Type		 Output power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting Torque
mN.m		 Rated Torque
mN.m		 Rated Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
2RK10GN-A(M) 2RK10A-A(M) 10 1ph 100 50 0.265 60 48 1200 4.0
60 0.232 55 40 1450
2RK10GN-E(M) 2RK10A-E(M) 10 1ph110 50 0.185 45 40 1450 2.5
1ph120 60 0.200
2RK10GN-C(M) 2RK10A-C(M) 10 1ph220 50 0.145 55 48 1200 1.0
1ph230 60 0.150
2RK10GN-H(M) 2RK10A-H(M) 10 1ph220 JU 0.145 40 60 1450 1.0
1ph230 60 0.150

REVERSIBLE MOTOR SPECS

Model·Type
Lead Wire Type		 Output power
W		 Voltage
V		 Frequency
Hz		 Speed Control Range
r/min		 Allowance Torque Starting Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft 1200r/min
mN.m		 90r/min
mN.m
2IK10RGN-A 2IK10RA-A 10 1ph 100 50 90～1350 50 30 35 0.240 3.5
60 90～1650 50 29 35 0.250
2IK10RGN-E 2IK10RA-E 10 1ph 110 60 90～1650 50 29 30 0.160 2.0
1ph 120 0.180
2IK10RGN-C 2IK10RA-C 10 1ph 220 50 90～1350 55 29 35 0.130 0.8
1ph 230 0.110
2IK10RGN-H 2IK10RA-H 10 1ph 220 60 90～1650 55 29 35 0.140 0.8
1ph 230 0.120

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Speed r/min 50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
60Hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
2IK10GN-A
2IK10GN-E
2IK10GN-C
2IK10GN-H
2IK10GN-A		 2GNOK 50Hz 0.12 0.14 0.19 0.23 0.29 0.35 0.49 0.58 0.70 0.88 1.1 1.3 1.6 1.9 2.4 2.9 3 3 3 3 3
1.22 1.43 1.94 2.35 2.96 3.57 5.0 5.92 7.14 8.98 11.2 13.3 16.3 19.4 24.5 29.6 30 30 30 30 30
60Hz 0.10 0.12 0.16 0.19 0.24 0.29 0.41 0.49 0.58 0.73 0.88 1.1 1.3 1.6 2.0 2.4 2.6 3 3 3 3
1.02 1.22 1.63 1.94 2.45 2.96 4.18 5.0 5.92 7.45 8.98 11.2 13.3 16.3 20.4 24.5 26.5 30 30 30 30

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor:0.75kg / Gearhead :0.4kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor:1.1kg / Gearhead: 0.4kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.1kg / Gearhead:0.5kg

Gearhead Model Gear Ratio L1
2GN□K 3～18 32
25～200 41.5

Enter the gear ratio in the box(□)within the model name
