This 6W Induction AC Gear Motor is an efficient, compact and reliable small motor suitable...
CH28/CV28-1100W-(Standard box 1:3~25 ratio) (Reduced box 1:30~120 ratio) Size diagram

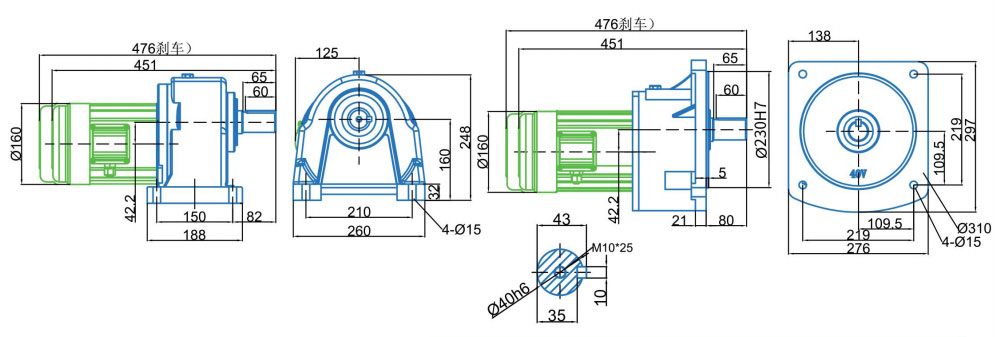

CH40/CV40-1100W (1:210 or higher ratio) Dimension diagram
Application Industry
AGV
Automated robots
laser cutting
Logistics sorting
Photovoltaic power-station
Medical devices

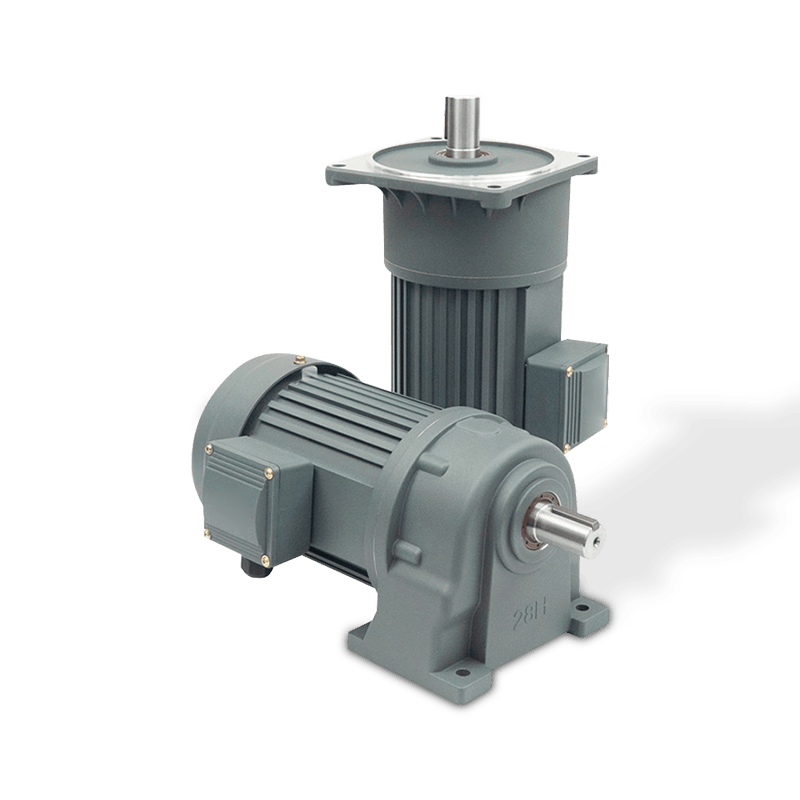

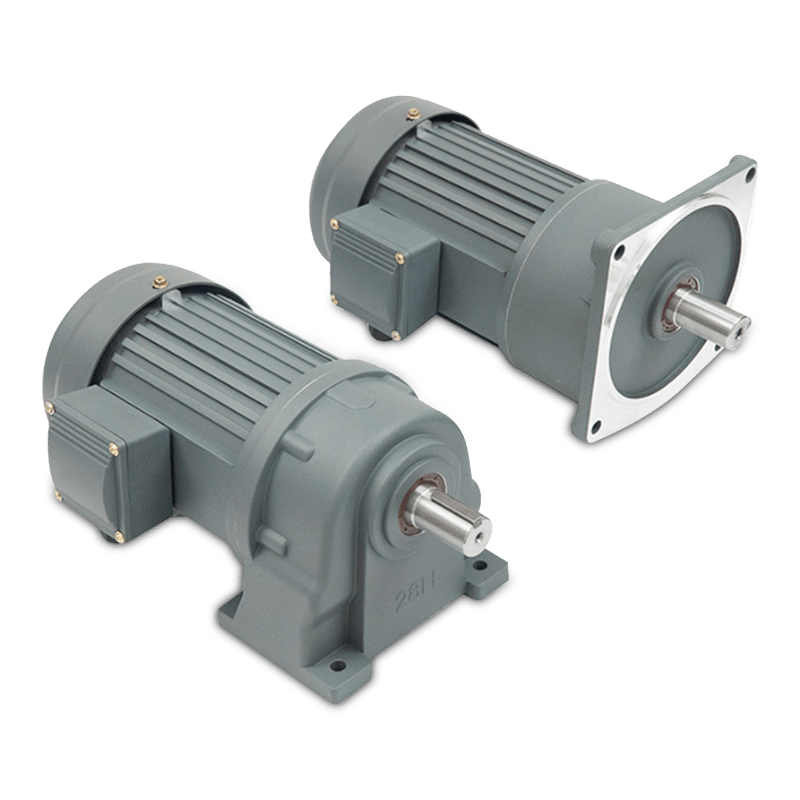

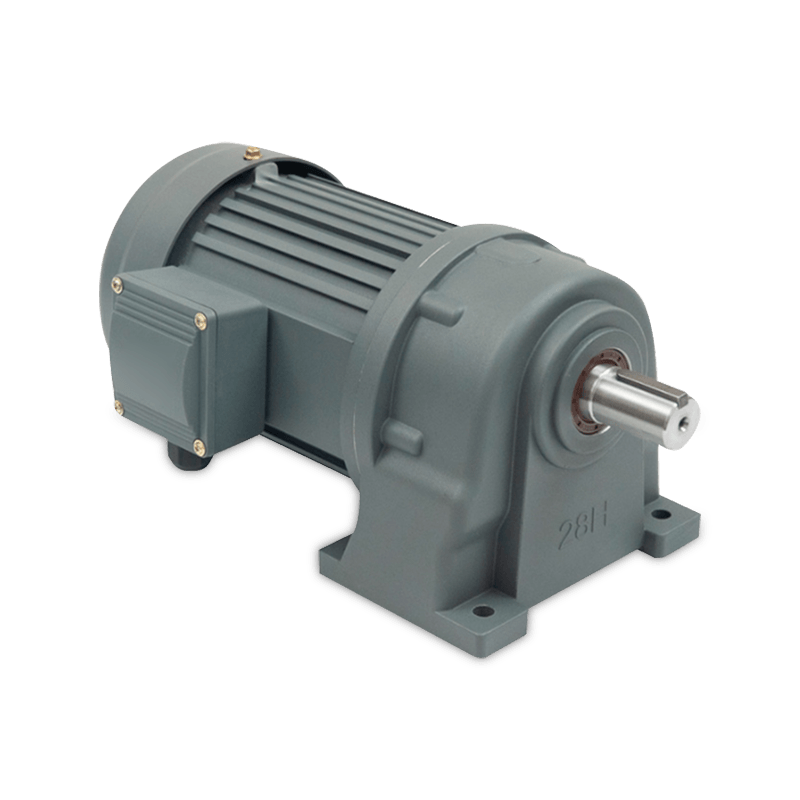

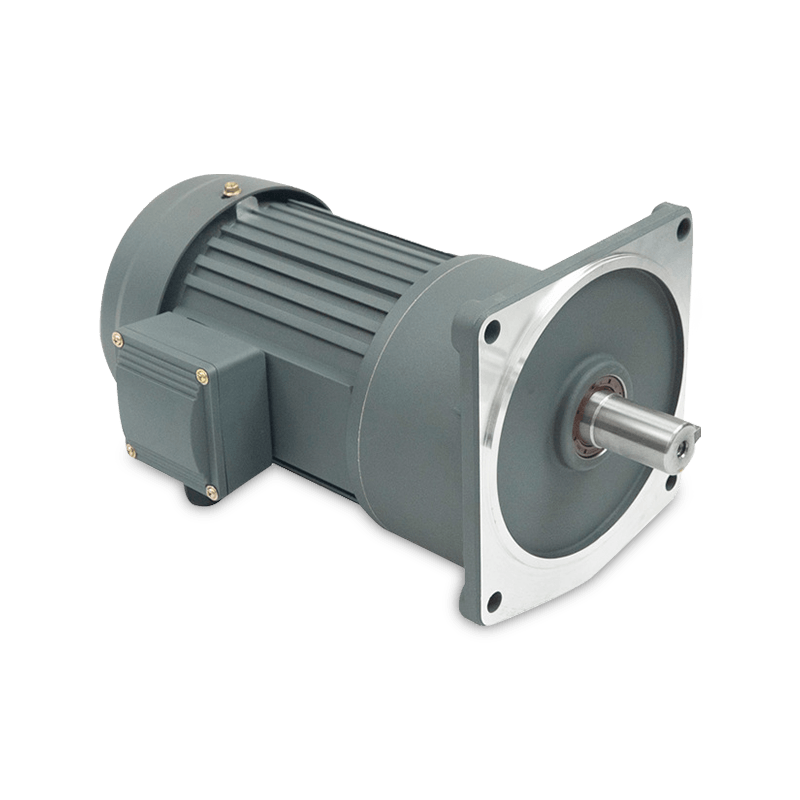

Small AC Gear Motor
1100W Series
Motor power: 1100W Horizontal or Vertical install
Phase: Single Phase / Three Phase
Gear Ratio: 3-1800K
Motor selection: 3 phase motor 220V-240V/380V-415V,50HZ/60HZ; 1 phase motor, 220V,50HZ/60HZ; 1 phase motor, 110V,50HZ / 60HZ
Output shaft diameter: φ28mm φ32mm φ40mm φ50mm
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.
-
Logistics Sorting
-
Automated Robots
-
laser cutting
-
Access control gate
-
Photovoltaic Power Station
-
Medical Devices
-
AGV
Product Description

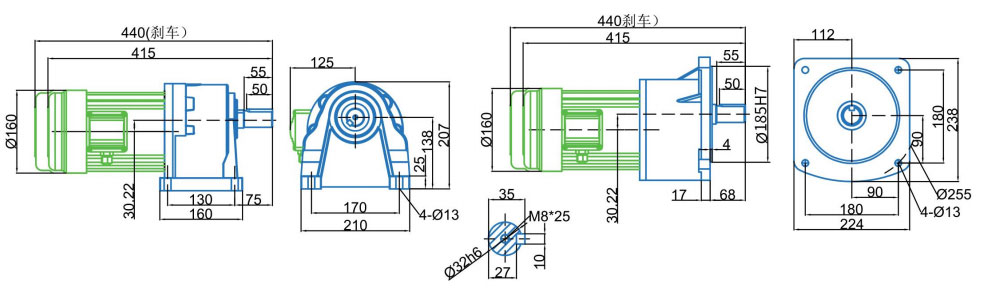

CH32/CV32-1100W - (Standard box 1:30~120 ratio) (reduced box 1:125~200 ratio) Dimensional drawing

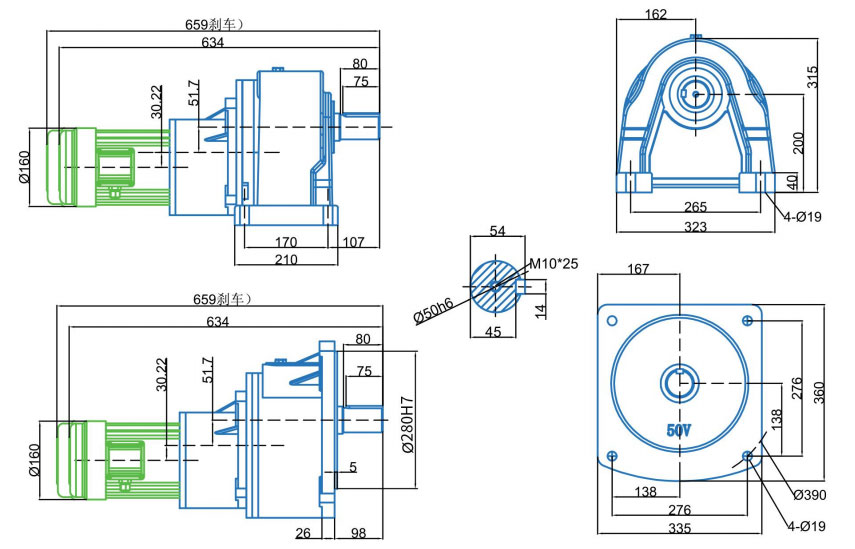

CH50/CV50-1100W (1:210 or higher ratio) Size diagram
CH40/CV40-1100W - (Standard Box 1:125~200 Ratio) Dimensional Drawing
Electrical machinery parameter
|
Electrical machinery parameter |
||||||||
|
Power (kW) |
Type |
Voltage(v) |
Frequency(Hz) |
Rated Current(A) |
Rated Rotation speed(rmp) |
Capacitors(μF) |
Insulation classification |
Protective System |
|
1.1kW 1.5HP |
Three-phase |
220V/380V |
50Hz |
5.2A/3.0A |
1420rmp |
/ |
F |
IP54 |
1100W-(1:3-1800 Digital ratio)Torque table
|
Gera Ratio |
3 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
140 |
160 |
180 |
200 |
300 |
1200 |
1800 |
|
|
Output R.P.M. |
50Hz |
500 |
300 |
150 |
100 |
75 |
60 |
50 |
37 |
30 |
25 |
21.4 |
18.8 |
16.7 |
15 |
12.5 |
10.7 |
9.4 |
8.4 |
7.5 |
5 |
1.25 |
0.83 |
|
60Hz |
600 |
360 |
180 |
120 |
90 |
72 |
60 |
45 |
36 |
30 |
25.7 |
22.5 |
20 |
18 |
15 |
12.9 |
11.3 |
10 |
9 |
6 |
1.5 |
1 |
|
|
Output Torque kg/m |
50Hz |
2 |
3.4 |
6.8 |
10.2 |
13.6 |
16.9 |
20.3 |
26.2 |
32.8 |
39.2 |
47 |
53 |
58.2 |
63.5 |
76.1 |
87.9 |
99.9 |
112.2 |
131.7 |
197.5 |
197.5 |
197.5 |
|
60Hz |
1.7 |
2.9 |
5.7 |
8.5 |
11.3 |
14.2 |
17.1 |
21.9 |
27.4 |
32.8 |
39.2 |
44.3 |
48.6 |
52.9 |
63.5 |
73.3 |
83.3 |
93.5 |
108 |
162 |
162 |
162 |
|
The speed in the table is calculated based on the rated speed of the motor at 50Hz/60Hz, 1420r.min/1732r.min
The actual speed will vary slightly with the size of the load, with a variation range of about ± 5%.
