Induction AC Gear Motors

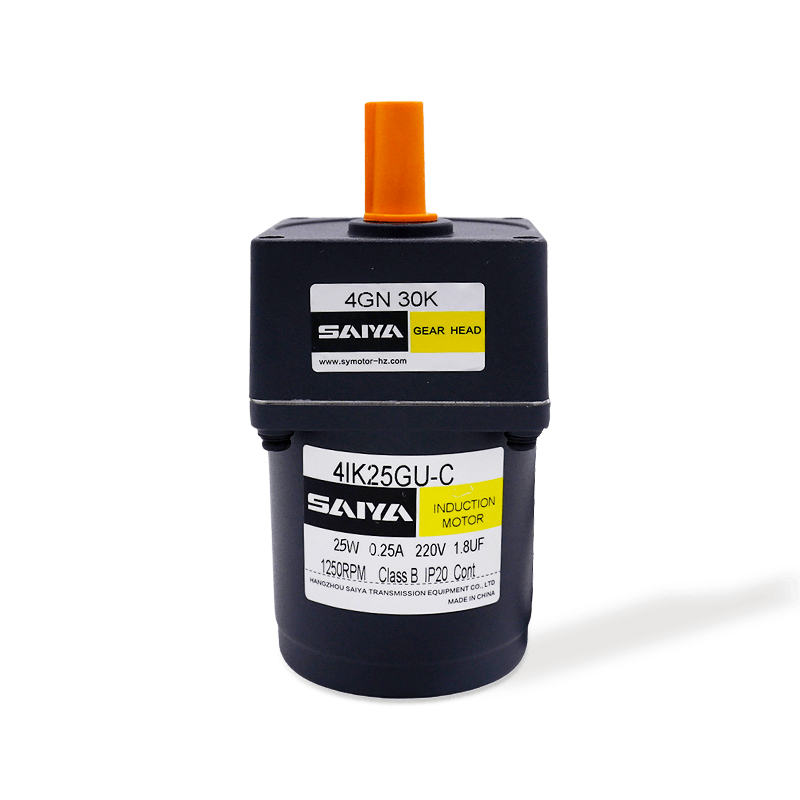

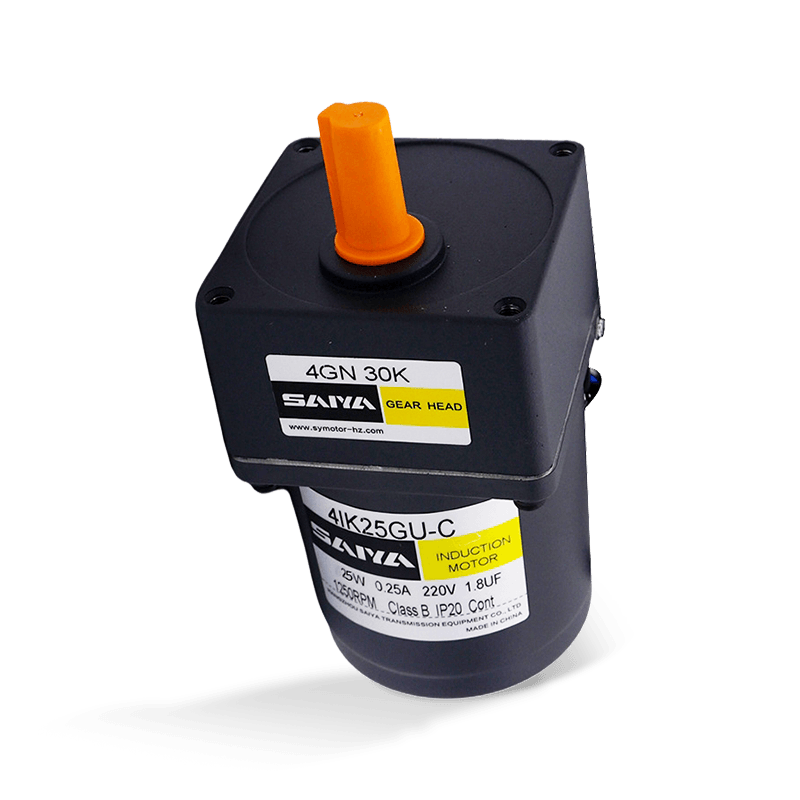

25W Induction AC Gear Motors

Voltage size: 25W, 80mmx80mm

Current usage: 0.17-0.55A

Rated torque: 165-200mN.m

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1450r/min)

  • 25W Induction AC Gear Motors
  • 25W Induction AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 25W induction AC gear motor is a versatile device that can be used in a variety of applications due to its efficient performance and compact size. The motors frame is 80mm x 80mm and have an operating current range of 0.17-0.55A. They are designed to provide a rated torque between 165-200mN.m, making them suitable for tasks that require precise control and medium power output.

The motors operate at asynchronous speeds that vary depending on the power supply frequency:1200rmp for 50Hz and 1450 for 60HZ,  This variation allows the motors to adapt to different regions and power standards, ensuring consistent performance in different operating environments.

These 25W induction AC gear motors are often used in machinery that requires reliable and consistent torque, such as conveyor systems, small industrial machines, and automation equipment. They are ruggedly constructed and able to maintain stable operation under varying loads, making them ideal for both continuous and intermittent use. In addition, their compact size makes them easy to integrate into a variety of mechanical systems, achieving a balance between power and space efficiency.

INDUCTION MOTOR SPECS

Model · Type
Upper: Pinion Shaft
Below: Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
4IK25GN-A
(4IK25A-A)		 4IK25GN-AT
(4IK25A-AT)		 25  1ph
100 		 50  0.50  120  200  1250  8.0
60  0.55  165  1550
4IK25GN-E
(4IK25A-E)		 4IK25GN-ET
(4IK25A-ET)		 25  1ph
110 		 60  0.45  120  165  1550  7.0
1ph
120 		 0.50
4IK25GN-C
(4IK25A-C)		 4IK25GN-CT
(4IK25A-CT)		 25  1ph
220 		 50  0.25  120  200  1250  1.8
1ph
230 		 0.23
4IK25GN-H
(4IK25A-H)		 4IK25GN-HT
(4IK25A-HT)		 25  1ph
220 		 60  0.23  120  165  1550
1ph
230
4IK25GN-S
(4IK25A-S)		 4IK25GN-ST
(4IK25A-ST)		 25  3ph
220 		 50  0.185  350  200  1250
60  0.170  250  165  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
4RK25GN-A
(4RK25A-A)		 4RK25GN-AT
(4RK25A-AT)		 25  1ph
100 		 50  0.59  160  200  1250  10.0
60  0.69  140  165  1550
4RK25GN-E
(4RK25A-E)		 4RK25GN-ET
(4RK25A-ET)		 25  1ph
110 		 60  0.45  140  165  1550  8.0
1ph
120 		 0.50

4RK25GN-C
(4RK25A-C)
4RK25GN-CT
(4RK25A-CT)		 25  1ph
220 		 50  0.29  140  200  1250  2.2
1ph
230 		 0.30  160
4RK25GN-H
(4RK25A-H)		 4RK25GN-HT
(4RK25A-HT)		 25  1ph
220 		 60  0.35  140  165  1550  2.2
1ph
230

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
  Pinion Shaft   Round Shaft 1200r/min
   mN.m		 90r/min
mN.m
4IK25RGN-A 4IK25RA-A 25  1ph
100 		 50  90～1350 190  47  88  0.50  8.0
60  90～1650 0.55
4IK25RGN-E 4IK25RA-E 25  1ph
110 		 60  90～1650 190  50  105  0.45  7.0
1ph
120 		 0.50
4IK25RGN-C 4IK25RA-C 25  1ph
220 		 50  90～1350 190  47  88  0.25  1.8
1ph
230 		 0.23
4IK25RGN-H 4IK25RA-H 25  1ph
220 		 60  90～1650 190  45  88  0.23  1.8
1ph
230

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5   9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10  9
4IK25GN-A□
4IK25GN-E□
4IK25GN-C□
4IK25GN-H□
4IK25GN-S□		 4GNCK 50Hz 0.49  0.58  0.81  0.97  1.2  1.5  2.0  2.4  2.9  3.7  4.4  5.3  6.6  7.9  8  8  8  8  8  8  8
5.00  5.91  8.26  9.89  12.2  15.3  20.4  24.4  29.6  37.7  44.9  54.1  67.3  80  80  80  80  80  80  80  80
60Hz 0.40  0.48  0.67  0.80  1.0  1.2  1.7  2.0  2.4  3.0  3.6  4.3  5.4  6.5  8  8  8  8  8  8  8
4.08  4.89  6.83  8.16  10.2  12.2  17.3  20.4  24.4  30.6  36.7  43.8  55.1  66.3  80  80  80  80  80  80  80

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 1.6kg / Gearhead : 0.8kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 2.15kg / Gearhead: 0.8kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.41kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.7kg / Gearhead:0.8kg

Gearhead Model Gear Ratio L1
4GN□K 3～18 32
25～200 43.5

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.75kg / Gearhead:0.8kg

Gearhead Model Gear Ratio L1
4GN□K 3～18 32
25～200 43.5

Enter the gear ratio in the box(□)within the model name
