  • 15W Reversible AC Gear Motors
Reversible AC Gear Motors

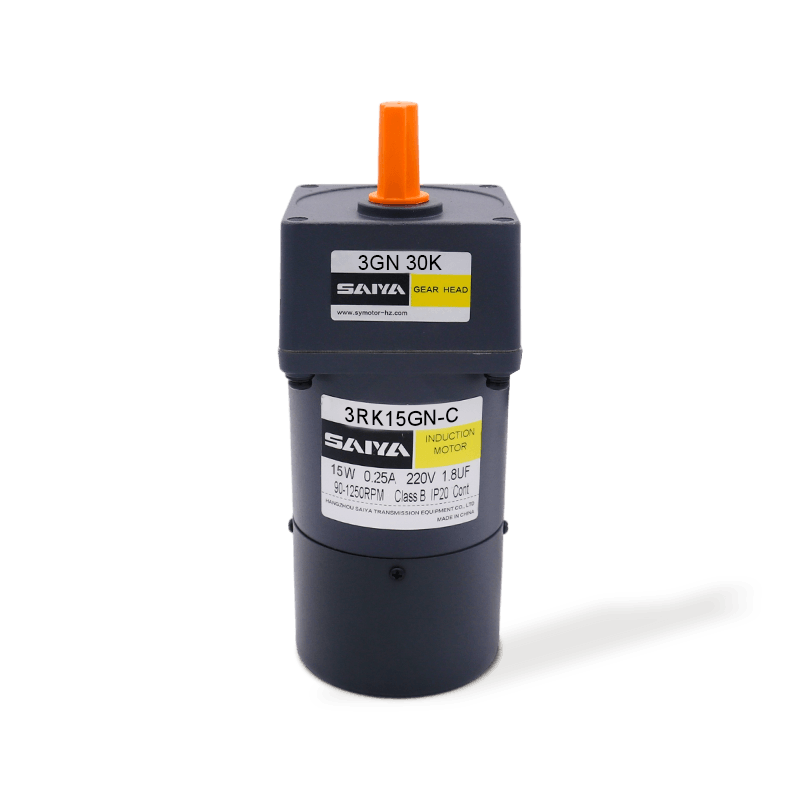

15W Reversible AC Gear Motors

Voltage size: 15W, 70mmx70mm/with brake

Operating voltage: 1ph 110-1ph 230V

Capacitor capacity: 1.5-7uf

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1450r/min)

  • 15W Reversible AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

15W reversible AC gear motors are compact with a frame size of 70mm x 70mm, these motors are designed to fit into tight spaces without compromising on performance. They come equipped with a braking system to ensure quick and accurate stopping, enhancing safety and control in various applications.

The motors are versatile in terms of power supply, operating on a single-phase voltage of either 110V or 230V. This flexibility makes them suitable for use in different regions and under varying electrical conditions. Additionally, they require a capacitor with a capacity ranging from 1.5 to 7 μF to start and run efficiently.

These motors operate at asynchronous speeds, which vary depending on the frequency of the electrical supply:1200rmp for 50Hz and 1450 for 60HZ. This difference in speed allows the motors to be used in a wide range of applications, providing consistent performance across different environments and requirements.

INDUCTION MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
3IK15GN-A 3IK15A-A 15  1ph
100 		 50  0.35  90  125  1200  6.0
60  0.33  85  105  1450
3IK15GN-E 3IK15A-E 15  1ph
110 		 60  0.30  65  105  1450  5.0
1ph
120 		 0.32
3IK15GN-C 3IK15A-C 15  1ph
220 		 50  0.18  90  125  1200  1.2
1ph
230 		 0.20
3IK15GN-H 3IK15A-H 15  1ph
220 		 60  0.16  65  105  1450
1ph
230 		 0.15  70
3IK15GN-S 3IK15A-S 15  3ph
220 		 50  0.14  220  125  1200
60  0.12  180  105  1450

REUERSIBE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
3RK15GN-A 3RK15A-A 15  1ph 100 50  0.40  110  125  1200  7.0
60  0.56  105  105  1450
3RK15GN-E 3RK15A-E 15  1ph110 60  0.43  85  105  1450  6.0
1ph120 0.42
3RK15GN-C 3RK15A-C 15  1ph220 50  0.23  110  125  1200  1.5
1ph230
3RK15GN-H 3RK15A-H 15  1ph220 60  0.20  85  105  1450  1.5
1ph230 90

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft 1200r/min
mN.m		 90r/min
   mN.m
3IK15RGN-A 3IK15RA-A 15  1ph
100 		 50  90～1350 120  35  55  0.35  6.0
60  90～1650 0.33
3IK15RGN-E 3IK15BA-F 15  1ph
110 		 60  90～1650 125  35  55  0.30  5.0
1ph
120 		 0.32
3IK15RGN-C 3IK15RA-C 15  1ph
220 		 50  90～1350 120  35  54  0.18  1.2
1ph
230 		 0.20
3IK15RGN-H 3IK15RA-H 15  1ph
220 		 60  90～1650 85  35  52  0.16  1.2
1ph
230 		 105  55  0.15

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5   6  7.5  9  12.5  15  18  25  30  36  50  60 75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60 50  36  30  24  20  18  15  12  10  9
3IK15GN-A
3IK15GN-E
3IK15GN-C
3IK15GN-H
3IK15GN-S		 3GN□ K 50Hz 0.30  0.36  0.51  0.61  0.76  0.91  1.3  1.5  1.8  2.3  2.7  3.3  4.1  5  5  5  5  5  5  5  5
3.06  3.67  5.20  6.22  7.75  9.28  13.2  15.3  18.3  23.4  27.5  33.7  41.8  50  50  50  50  50  50  50  50
60Hz 0.26  0.31  0.43  0.51  0.64  0.77  1.1  1.3  1.5  1.9  2.3  2.8  3.5  4.2  5  5  5  5  5  5  5
2.65  3.16  4.38  5.20  6.53  7.85  11.2  13.2  15.3  19.3  23.4  28.5  35.7  42.8  50  50  50  50  50  50  50

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 1.1kg / Gearhead :0.5kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor:1.47kg / Gearhead: 0.5kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.3kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.2kg / Gearhead:0.5kg

Gearhead Model Gear Ratio L1
3GN□K 3～18 32
25～200 42

Enter the gear ratio in the box(□)within the model name
