Brushed DC Gear Motors

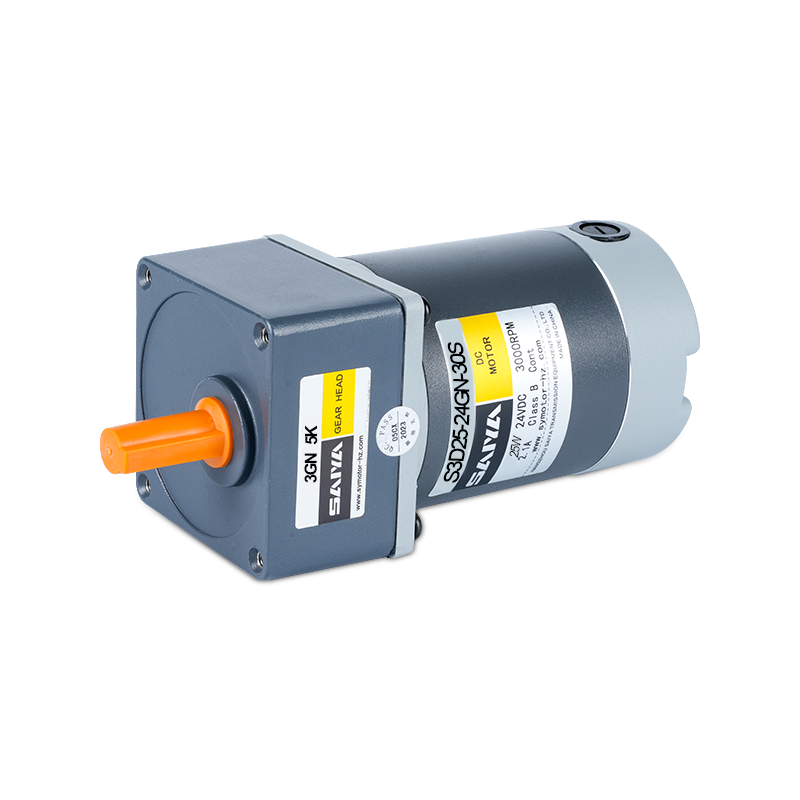

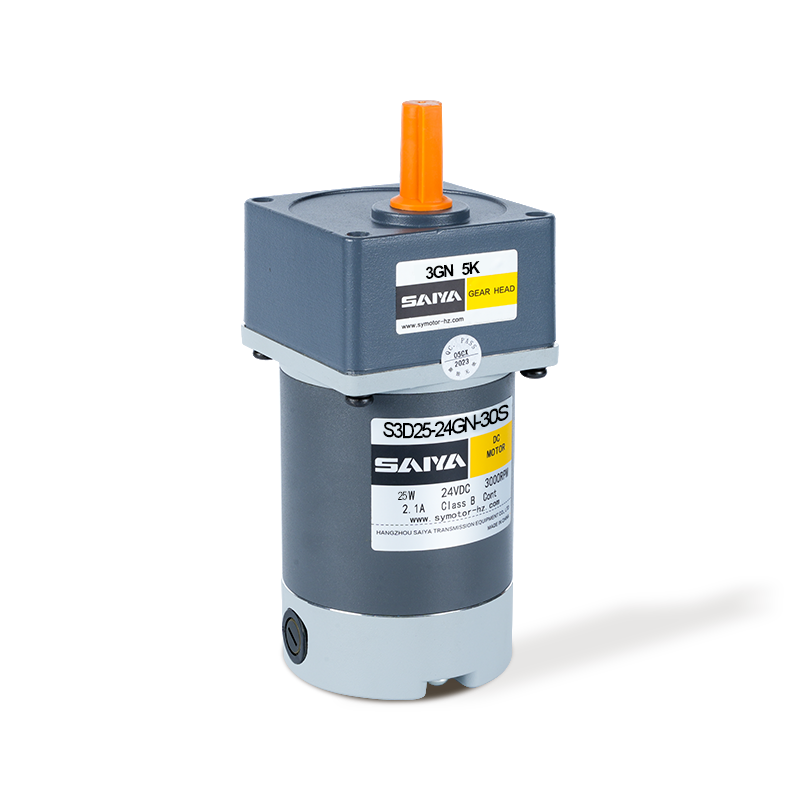

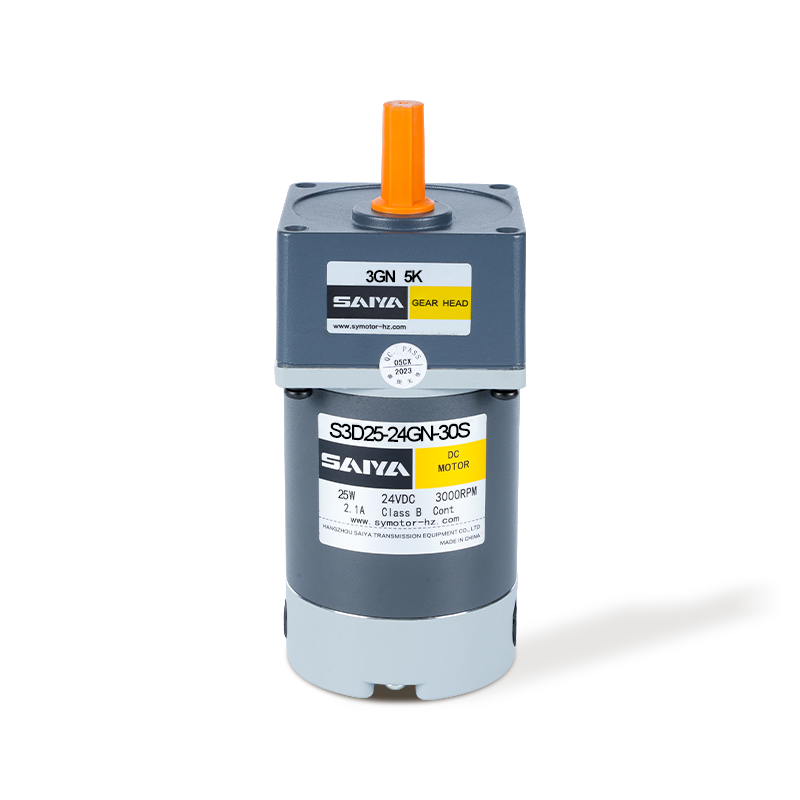

25W Brush DC Gear Motors

Voltage size: 25W, 70mmx70mm
Operating voltage: 12-90V
No load parameters: Speed 3100-3300rpm
Current used: 0.3-1.0A
Load parameters: Rotational speed 2700-3000rpm
Current used: 0.6-3.5A
Torque: 80-88mN.M

  • 25W Brush DC Gear Motors
  • 25W Brush DC Gear Motors
  • 25W Brush DC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 25W Brush DC Gear Motor offers high performance and adaptability, perfect for a range of industrial and hobbyist applications. With a frame size of 70mm x 70mm, this motor is designed to fit into confined spaces without compromising on power. It operates on a wide voltage range of 12-90V, providing flexibility for various power sources and control systems.

In no-load conditions, the motor runs at a speed of 3100-3300 RPM, drawing a current between 0.3-1.0A. When under load, the speed decreases slightly to 2700-3000 RPM, with a corresponding current draw of 0.6-3.5A. This motor delivers a torque of 80-88mN.m, ensuring it can handle demanding tasks with ease.

The 25W Brush DC Gear Motor is ideal for applications that require precise speed and torque control. It is suitable for use in robotics, automated systems, small machinery, and other projects where reliability and performance are essential. The motor’s broad voltage and current ranges enhance its compatibility with diverse electronic controllers and power setups.

Motor Performance Parameters

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
 S3D25-12□ 12  25  3300  1.0
 Max.		 3000  80  3.5  2000  1.0
S3DW25-12□ 12  25  3300  1.0
 Max.		 3000  80  3.5  2000  1.0
S3D25-24□ 24  25  3200  0.5
 Max.		 2800  85  1.6  2000  1.0
S3DW25-24□ 24  25  3200  0.5
 Max.		 2800  85  1.6  2000  1.0
S3D25-90□ 90  25  3100  0.3
 Max.		 2700  88  0.6  2000  1.0
S3DW25-90□ 90  25  3100  0.3
 Max.		 2700  88  0.6  2000  1.0

Motor voltage, power and speed will be customized according to his requestment under the allowed circumstance of adoptable dimension

We use W after D in the model to express the external brush motor. such as Z20W06-12GN.lf no W, it means the standard internal brush motor For external brush motor, you can replace the brush directly. For internal ones, we need to disassembly the motor first.

Gear Motor-Torque Table

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
S2D10-12□ 12 10 3200 1.0 Max. 2800 34 2.0 2000 0.7
S2DW10-12□ 12 10 3200 1.0 Max. 2800 34 2.0 2000 0.7
S2D10-24□ 24 10 3300 0.5 Max. 3000 32 0.9 2000 0.7
S2DW10-24□ 24 10 3300 05 Max 3000 32 0.9 2000 0.7
S2D10-90□ 90 10 3200 0.3 Max. 2800 34 0.6 2000 0.7
S2DW10-90□ 90 10 3200 0.3 Max. 2800 34 0.6 2000 0.7

Gearheads are sold separately. Decimal gearheads are not available.

Enter the gear ratio in the box (□) within the model name.

The colored background (□) indicates the same rotating direction of the motor while the rotating direction of others are opposite.

The speed is calculated by dividing the motor's synchronous ped by the gearatio. The actual speed is 2%~20% less than the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead (gear ratio:10) between the gearhead and motor. In that case, the permissible torque is 5Nm.

Allowance Torque Unit:Upside(N.m)/Belowside(kgf.cm)

Type Gear Ratio 3  3.6  5  6  7.5  9  10  12.5  15  18  20  25  30  36  40  50  60  75  90  100  120  150  180  200
S3D25-24 GN

Speed

r/min

 933  778  560  467  373  311  280  224  187  156  140  112  93  78  70  56  47  37  31  28  23  19  16  14
3GN□K 0.21  0.25  0.35  0.41  0.52  0.62  0.69  0.86  1.04  1.24  1.24  1.55  1.86  2.24  2.49  3.11  3.73  4.66  5.00  5.00  5.00  5.00  5.00  5.00
2.03  2.44  3.38  4.06  5.08  6.09  6.77  8.46  10.2  12.2  12.2  15.2  18.3  21.9  24.4  30.5  36.6  45.7  50.0  50.0  50.0  50.0  50.0  50.0

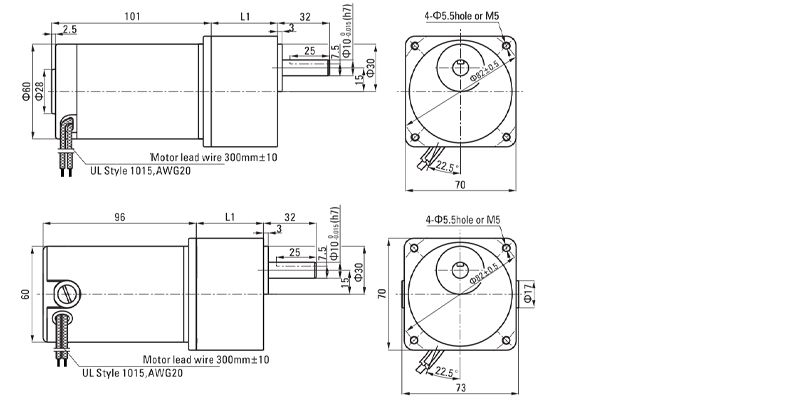

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

Weight: Motor:1.0kg / Gearhead:0.55kg

Gearhead Model Gear Ratio L1
3GN□K 3～18 32
25～200 42

Enter the gear ratio in the box(□)within the model name.

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape is the same as that of the pinion shaft type.

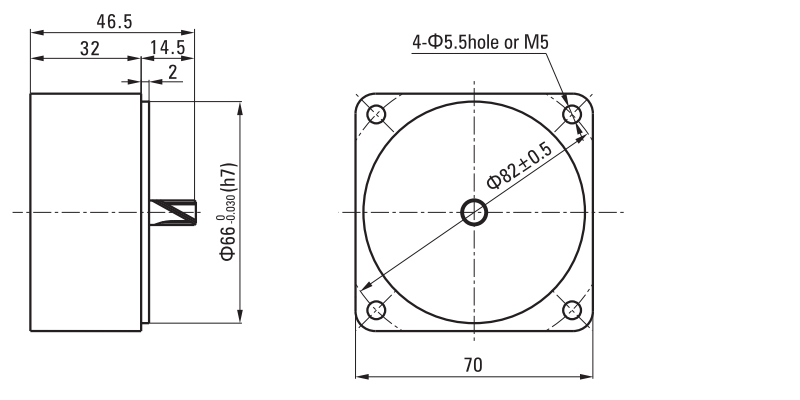

Decimal Gearhead

Can be connected to GN pinion shaft type
3GN10X
Weight:0.31kg
