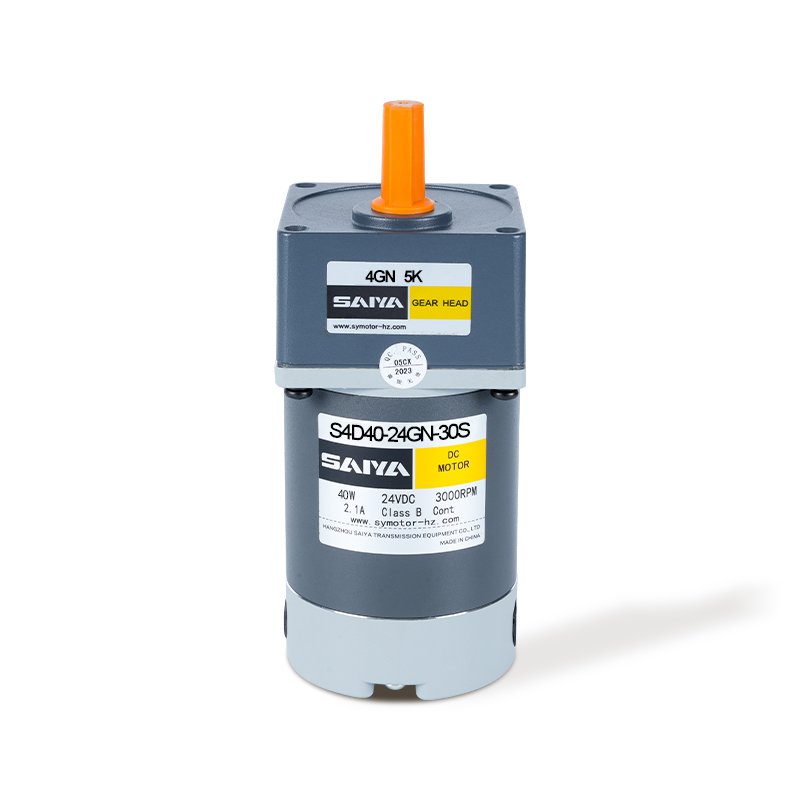

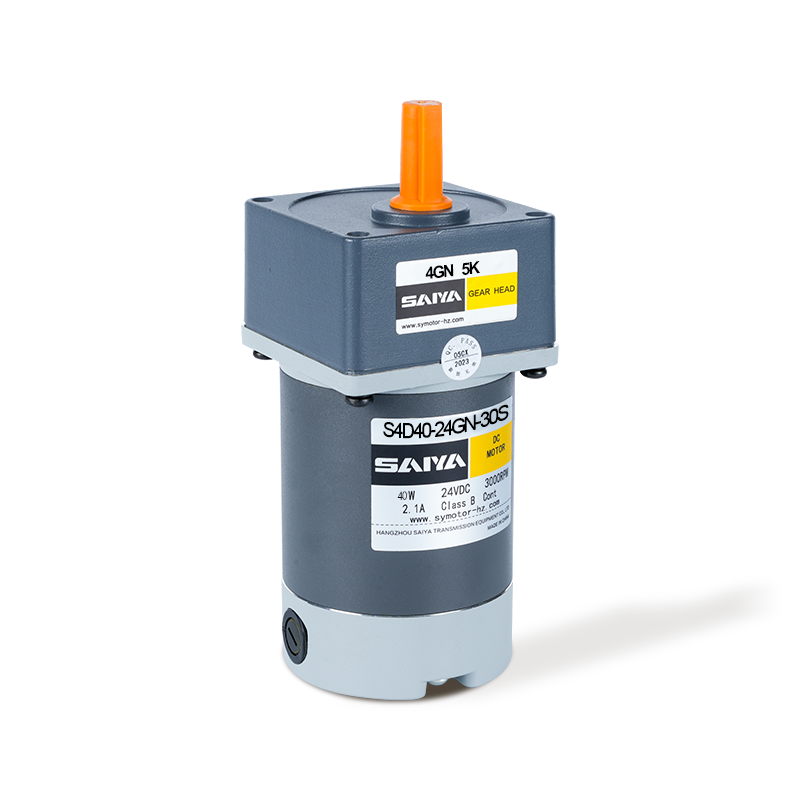

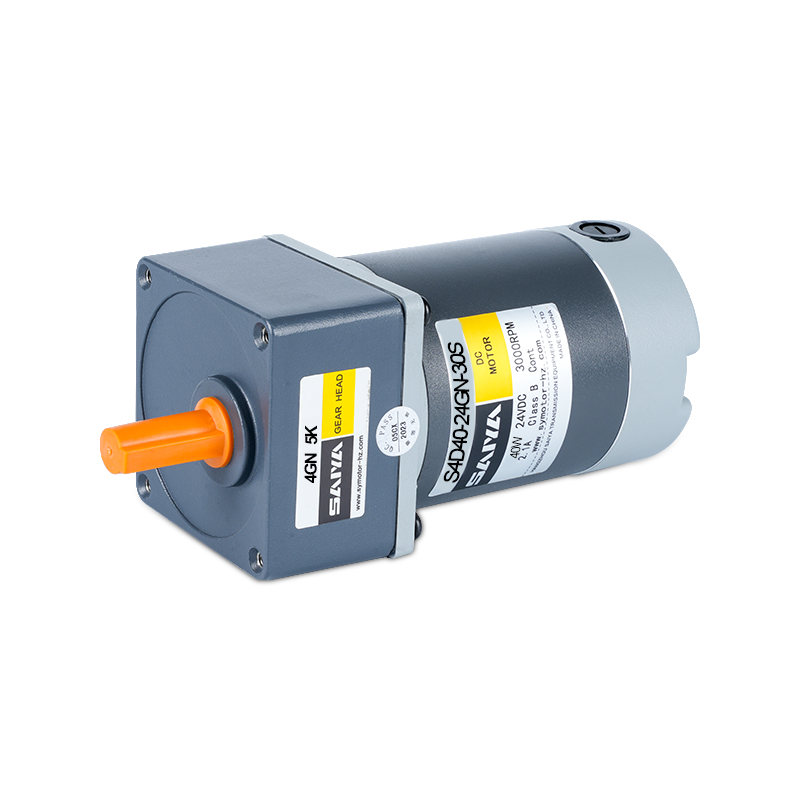

40W Brush DC Gear Motors

Voltage size: 40W，80mmx80mm
Operating voltage: 12-90V
No load parameters: Speed 3000-3200rpm
Current used: 0.2-1.4A
Load parameters: Rotational speed 2850-3100rpm
Current used: 0.5-3.6A
Torque: 77-84mN.M

  • 40W Brush DC Gear Motors
  • 40W Brush DC Gear Motors
  • 40W Brush DC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 40W Brush DC Gear Motor offers high performance and adaptability, perfect for a range of industrial and hobbyist applications. With a frame size of 80mm x 80mm, this motor is designed to fit into confined spaces without compromising on power. It operates on a wide voltage range of 12-90V, providing flexibility for various power sources and control systems.

In no-load conditions, the motor runs at a speed of 3000-3200 RPM, drawing a current between 0.2-1.4A. When under load, the speed decreases slightly to 2850-3100 RPM, with a corresponding current draw of 0.6-3.5A. This motor delivers a torque of 77-84mN.m, ensuring it can handle demanding tasks with ease.

The 40W Brush DC Gear Motor is ideal for applications that require precise speed and torque control. It is suitable for use in robotics, automated systems, small machinery, and other projects where reliability and performance are essential. The motor’s broad voltage and current ranges enhance its compatibility with diverse electronic controllers and power setups.

25W Motor Performance Parameter

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
S4D25-12□ 12  25  3200  1.4 Max 3100  77  3.6  2000  1.7
S4D25-24□ 24  25  3000  0.7 Max. 2850  84  1.7  2000  1.7
S4D25-90□ 90  25  3200  0.2 Max. 3000  80  0.5  2000  1.7

40W Motor Performance Parameter

Model Voltage Power No-load Parameters Load Parameters Brush Life Motor Weight
Speed Current Speed Torque Current
V W r/min A r/min mN.m A H kg
S4D40-12□ 12  40  3100  2.0 Max 2800  136  5.2  2000  1.8
S4D40-24□ 24  40  3100  0.8 Max. 3000  127  2.1  2000  1.8
S4D40-90□ 90  40  3200  0.3 Max. 3000  127  0.7  2000  1.8

Motor voltage, power and speed will be customized according to his requestment under the allowed circumstance of adoptable dimension.

Gear Motor-Torque Table

Gearheads are sold separately. Decimal gearheads are not available.

Enter the gear ratio in the box(□)within the model name.

The colored background (□) indicates the same rotating direction of the motor while the rotating direction of others are opposite.

The speed is calculated by dividing the motor's synchronous speed by the gear ratio. The actual speed is 2%~20%lessthan the displayed value, depending on the size of the load.

To reduce the speed beyond the gear ratio in the table, attach a decimal gearhead(gear ratio:10)between the gearhead and motor In that case, the permissible torque is 8Nm.

Allowance Torque Unit:Upside(N.m)/Belowside(kgf.cm)

Type Gear Ratio 3  3.6   5  6  7.5   9  10  12.5  15  18  20  25  30  36  40  50  60  75  90  100  120  150  180  200
S4D25-24GN Speed r/min 950  792  570  475  380  317  285  228  190  158  143  114  95  79  71  57  48  38  32  29  24  19  16  14
4GN□K 0.20  0.24  0.34  0.41  0.51  0.61  0.68  0.85  1.02  1.22  1.36  1.53  1.83  2.20  2.44  3.05  3.30  4.12  4.95  5.50  6.60  8.00  8.00  8.00
1.99  2.39  3.32  3.99  4.99  5.98  6.65  8.31  10.0  12.0  13.3  15.0  18.0  21.5  23.9  29.9  32.3  40.4  48.5  53.9  64.6  80.0  80.0  80.0
S4D40-24GN Speed r/min 1000  833  600  500  400  333  300  240  200  167  150  120  100  83  75  60  50  40  33  30  25  20  17  15
4GN□K 0.31  0.37  0.52  0.62  0.77  0.93  1.03  1.29  1.55  1.86  2.06  2.32  2.78  3.34  3.71  4.64  5.01  6.27  7.52  8.00  8.00  8.00  8.00  8.00
3.03  3.64  5.05  6.06  7.58  9.10  10.1  12.6  15.2  18.2  20.2  22.7  27.3  32.7  36.4  45.5  49.1  61.4  73.7  80.0  80.0  80.0  80.0  80.0

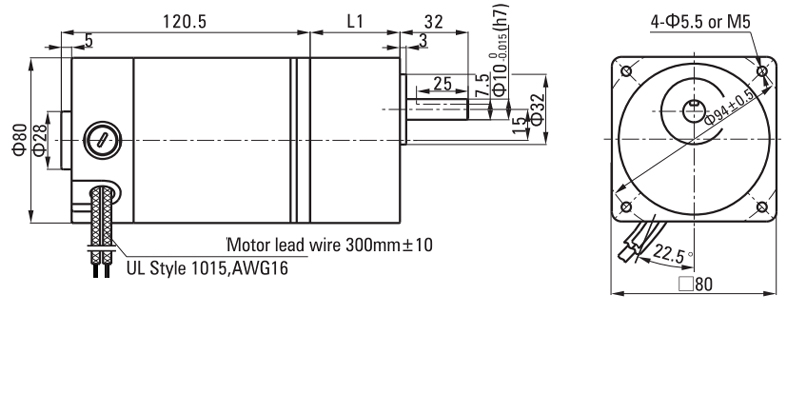

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type

25W:  Weight: Motor:1.7kg / Gearhead:0.80kg
40W:  Weight: Motor:1.8kg / Gearhead:0.80kg


Gearhead Model Gear Ratio L1
4GN□K 3～18 32
25～200 41

Enter the gear ratio in the box(□)within the model name.

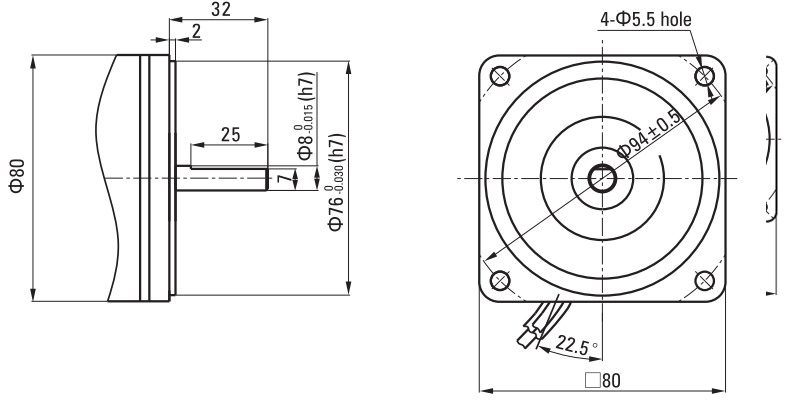

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape is the same as that of the pinion shaft type.

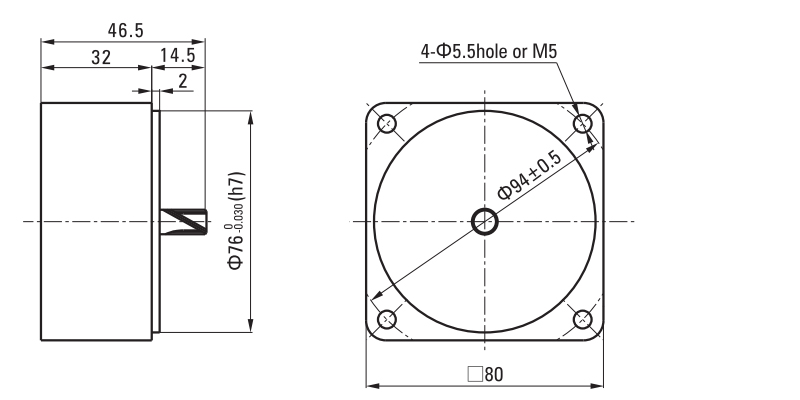

Decimal Gearhead

Can be connected to GN pinion shaft type
4GN10X
Weight:0.41kg
