Induction AC Gear Motors

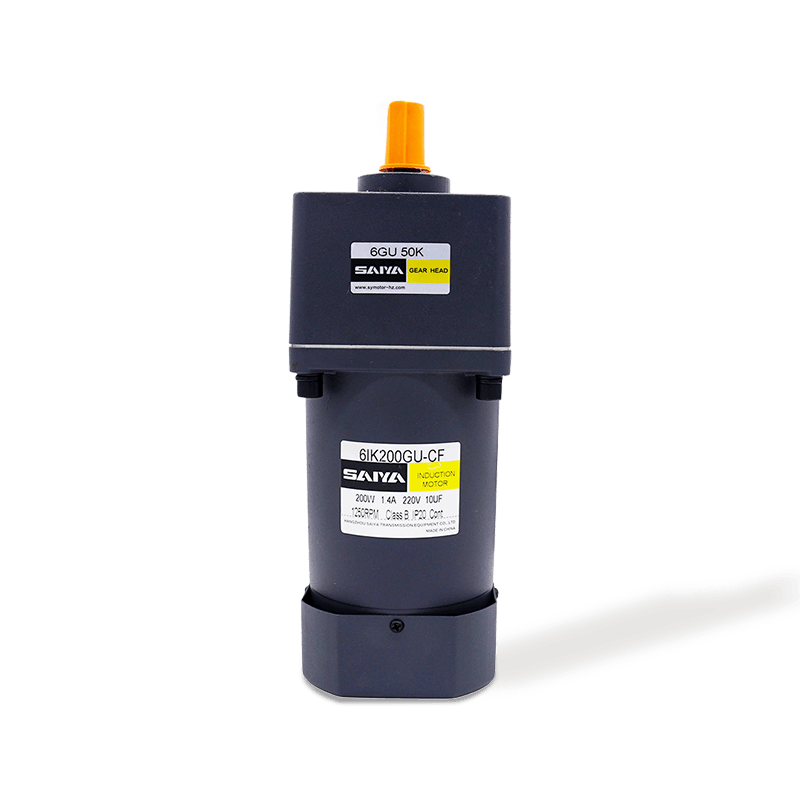

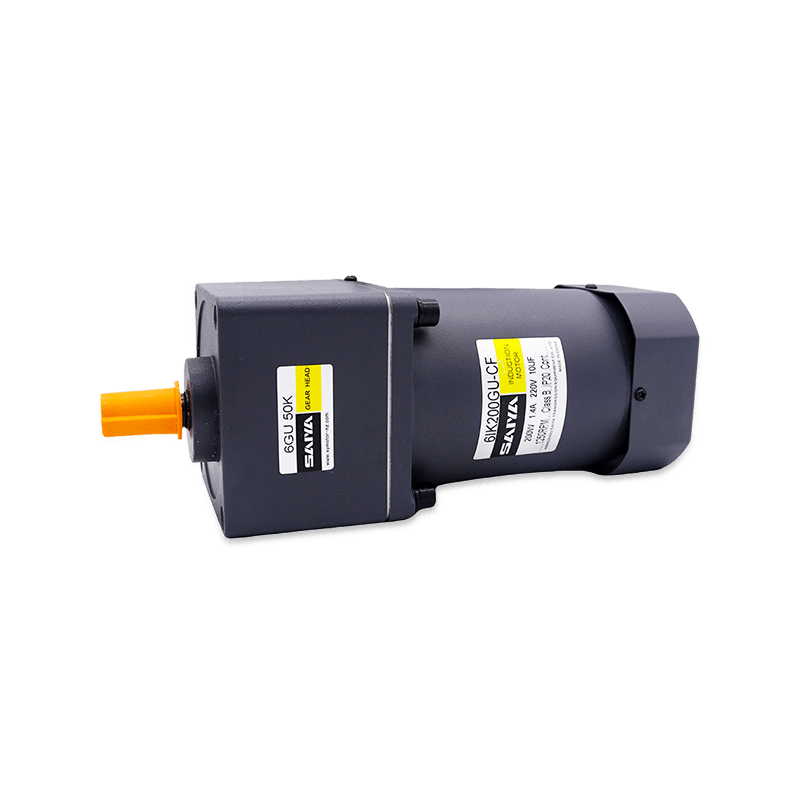

200W Induction AC Gear Motors

Voltage size: 200W, or 104mmx104mm

Current usage: 0.95-3.5A

Rated torque: 530-1520mN. m

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1550r/min)

No previous article | NEXT

+ Contact us + Catalogue Download Product Video

APPLICATION AREA

We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

Logistics Sorting
Automated Robots
laser cutting
Access control gate
Photovoltaic Power Station
Medical Devices
AGV

Product Description

The 200W induction AC gear motor is a versatile device that can be used in a variety of applications due to its efficient performance and compact size. The motors frame is 104mmx104mm and have an operating current range of 0.95-3.5A. They are designed to provide a rated torque between 530-1520mN.m, making them suitable for tasks that require precise control and medium power output.

The motors operate at asynchronous speeds that vary depending on the power supply frequency:1200rmp for 50Hz and 1550 for 60HZ, This variation allows the motors to adapt to different regions and power standards, ensuring consistent performance in different operating environments.

INDUCTION MOTOR SPECS

Model ·Type Upper:Pinion Shaft Below:Round Shaft		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead WireType Dimensions①	Terminal Box Type Dimensions②
6IK200GU-AF (6IK200A-AF)	6IK200GU-AFT (6IK200A-AFT)	200	1ph 100	50	3.2	900	1520	1250	45.0
				60	3.5		1230	1550
6IK200GU-EF (6IK200A-EF)	6IK200GU-FFT (6IK200A-EFT)	200	1ph 110	60	2.75	850	1230	1550	35.0
			1ph 120		2.65
6IK200GU-CF (6IK200A-CF)	6IK200GU-CFT (6IK200A-CFT)	200	1ph 220	50	1.40	1000	1520	1250	10.0
			1ph 230
6IK200GU-HF (6IK200A-HF)	6IK200GU-HFT (6IK200A-HFT)	200	1ph 220	60	1.40	900	1230	1550
			1ph 230
6IK200GU-SF (6IK200A-SF)	6IK200GU-SFT (6IK200A-SFT)	200	3ph 220	50	1.20	3400	1520	1250
				60	1.0	2700	1230	1550

REUERSIBE MOTOR SPECS

Model ·Type Lead Wire Type		Rating	Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
6RK200GU-AFM	6RK200A-AFM	30min	200	1ph 100	50	3.2	900	1385	1250	45
					60	3.5		1120	1550
6RK200GU-EFM	6RK200A-EFM	30min	200	1ph 110	60	2.75	850	1120	1550	35
				1ph 120		2.65
6RK200GU-CFM	6RK200A-CFM	30min	200	1ph 220	50	1.40	1100	1385	1250	12
				1ph 230
6RK200GU-HFM	6RK200A-HFM	30min	200	1ph 220	60	1.40	1000	1120	1550
				1ph 230
6RK200GU-SFM	6RK200A-SFM	30min	200	3ph 220	50	1.20	3400	1385	1250
					60	1.00	2700	1120	1550

REVERSIBLE MOTOR SPECS

Model ·Type Lead Wire Type		Output power W	Voltage	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
Pinion Shaft	Round Shaft		V			1200r/min mN.m	90r/min mN.m
6IK200RGU-AF	6IK200RA-AF	200	1ph 100	50	90～1350	920	500	680	3.2	45
				60	90～1650				3.50
6IK200RGU-EF	6IK200RA-EF	200	1ph 110	60	90～1650	920	500	680	2.75	35
			1ph 120						2.65
6IK200RGU-CF	6IK200RA-CF	200	1ph 220	50	90～1350	920	500	680	1.40	10
			1ph 230
6IK200RGU-HF	6IK200RA-HF	200	1ph 220	60	90～1650	920	500	680	1.40	10
			1ph 230						1.40

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	42	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
6IK200GU-AF□ 6IK200GU-EF□ 6IK200GU-CF□ 6IK200GU-HF□ 6IK200GU-SF□	6GU□K	50Hz	3.71	4.46	6.19	7.43	9.28	11.1	13.9	16.7	20.1	25.2	30.3	36.3	40	40	40	40	40	40	40	40	40
		50Hz	37.9	45.5	63.1	75.8	94.7	114	142	171	205	257	309	370	400	400	400	400	400	400	400	400	400
		60Hz	2.99	3.59	4.99	5.99	7.49	8.98	11.2	13.5	16.2	20.3	24.4	29.3	40	40	40	40	40	40	40	40	40
		60Hz	30.6	36.7	50.9	61.1	76.4	91.7	115	138	165	207	249	299	400	400	400	400	400	400	400	400	400

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 5.0kg / Gearhead : 2.1kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 5.9kg / Gearhead: 7.1kg

Decimal Gearhead

It can be connected to the GU pinion shaft type.

Weight: 0.65kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.1kg / Gearhead: 2.1kg

Gearhead Model	Gear Ratio	L1
6GN□K	3～200	72

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.15kg / Gearhead: 2.1kg

Gearhead Model	Gear Ratio	L1
6GN□K	3～200	72

Enter the gear ratio in the box(□)within the model name
