Induction AC Gear Motors

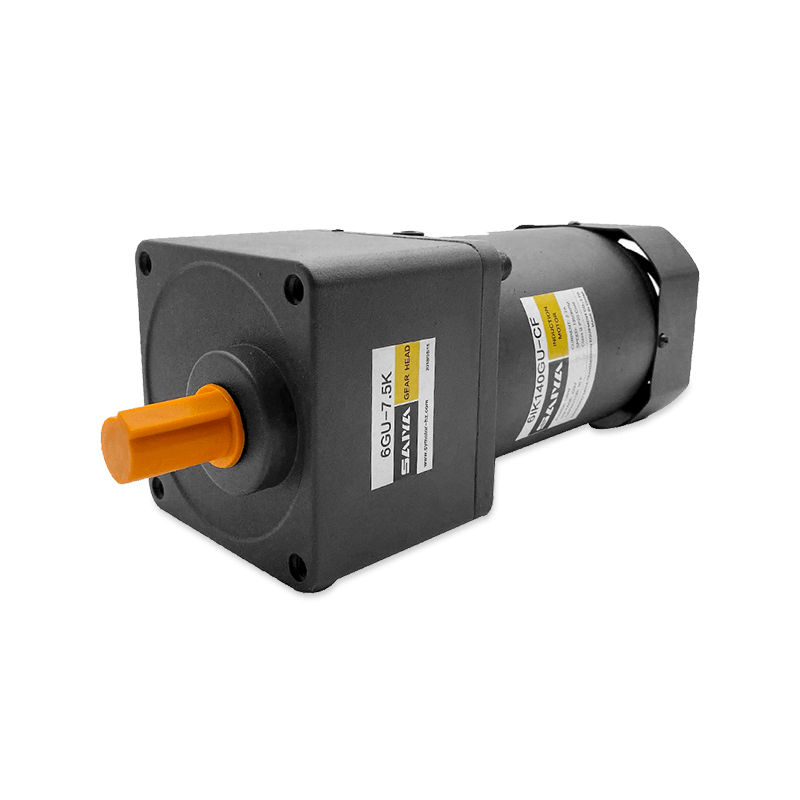

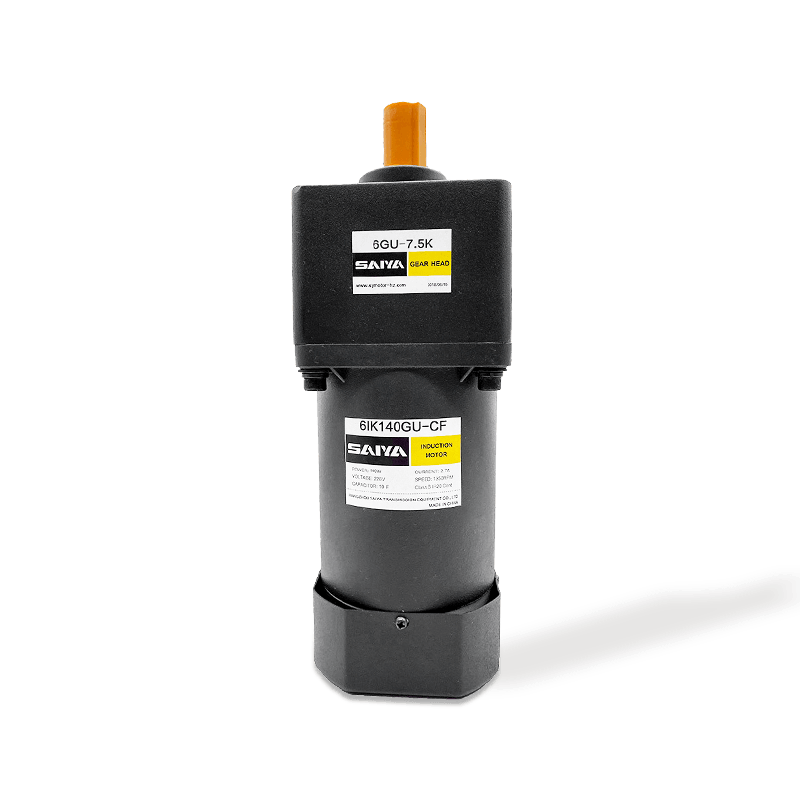

140W Induction AC Gear Motors

Voltage size: 140W, 104mmx104mm

Operating voltage: 1ph 110V-3ph 220V

Capacitor capacity: 10-35uf

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1550r/min)

  • 140W Induction AC Gear Motors
  • 140W Induction AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

This 140W Induction AC Gear Motor is an efficient, compact and reliable small motor suitable for a wide range of industrial and household applications. Motor frame 104mm x 104mm  making it easy to install in space-constrained environments. It can be used in voltages ranging from single-phase 110V to three-phase 220V, and is highly adaptable to meet the needs of different power systems.

Equipped with capacitors between 10 to 35uf to ensure smooth and efficient operation of the motor. Its speed is based on the asynchronous speed of the motor, which is 1200 revolutions per minute (r/min) at 50Hz and 1550 revolutions per minute (r/min) at 60Hz, which can meet the speed requirements in different working environments.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
6IK140GU-AF
(6IK140A-AF)		 6IK140GU-AFT
(6IK140A-AFT)		 140  1ph
100 		 50  2.7  700  1080  1250  35.0
60  3.0  870  1550
6IK140GU-EF
(6IK140A-EF)		 6IK140GU-EFT
(6IK140A-EFT)		 140  1ph
110 		 60  1.80  700  850  1600  25.0
1ph
120 		 1.95
6IK140GU-CF
(6IK140A-CF)		 6IK140GU-CFT
(6IK140A-CFT)		 140  1ph
220 		 50  1.05  850  1040  1350  10.0
1ph
230 		 1.15
6IK140GU-HF
(6IK140A-HF)		 6IK140GU-HFT
(6IK140A-HFT)		 140  1ph
220 		 60  1.05  750  850  1600
1ph
230 		 1.15
6IK140GU-SF
(6IK140A-SF)		 6IK140GU-SFT
(6IK140A-SFT)		 140  3ph
220 		 50  0.85  2700  1080  1250
60  0.75  2200  870  1550

REUERSIBE MOTOR SPECS

Model ·Type
Lead Wire Type		 Rating Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
6RK140GU-AFM 6RK140A-AFM 30min 140  1ph
100 		 50  2.7  700  1080  1250  35
60  3.0  870  1550
6RK140GU-EFM 6RK140A-EFM 30min 140  1ph
110 		 60  1.80  700  850  1550  25
1ph
120 		 1.95
6RK140GU-CFM 6RK140A-CFM 30min 140  1ph
220 		 50  1.05  850  1040  1250  10
1ph
230 		 1.15
6RK140GU-HFM 6RK140A-HFM 30min 140  1ph
220 		 60  1.05  750  850  1550
1ph
230 		 1.15
6RK140GU-SM 6RK140A-SM 30min 140  3ph
220 		 50  0.85  2700  1080  1250
60  0.75  2200  870  1550

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
    Pinion Shaft   Round Shaft 1200r/min
   mN.m		 90r/min
   mN.m
6IK140RGU-AF 6IK140RA-AF 140  1ph
100 		 50  90～1350 830  420  620  2.70  35
60  90～1650 3.00
6IK140RGU-EF 6IK140RA-EF 140  1ph
110 		 60  90～1650 830  450  620  1.80  25
1ph
120 		 1.95
6IK140RGU-CE 6IK140BA-CE 140  1ph
220 		 50  90～1350 830  420  620  1.05  10
1ph
230 		 1.15
6IK140RGU-HF 6IK140RA-HF 140  1ph
220 		 60  90～1650 830  450  620  1.05  10
1ph
230 		 1.15

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5  9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
6IK140GU-AF□
6IK140GU-EF□
6IK140GU-SF□		 6GU□K 50Hz 2.6  3.1  4.4  5.2  6.6  7.9  9.9  11.8  14.2  17.8  21.4  25.7  35.6  40  40  40  40  40  40  40  40
26.5  31.6  44.8  53.0  67.3  80.6  101  120  144  181  218  262  363  400  400  400  400  400  400  400  400
2.5  3.0  4.2  5.1  6.3  7.6  9.5  11.4  13.7  17.2  20.6  247  34.3  40  40  40  40  40  40  40  40
25.5  30.6  42.8  52.0  63.2  77.5  96.9  116  139  175  210  252  349  400  400  400  400  400  400  400  400

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 5.0kg / Gearhead : 2.1kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 5.85kg / Gearhead: 2.1kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.6kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.1kg / Gearhead: 2.1kg

Gearhead Model Gear Ratio L1
6GN□K 3～200 72

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.15kg / Gearhead: 2.1kg

Gearhead Model Gear Ratio L1
6GN□K 3～200 72

Enter the gear ratio in the box(□)within the model name
