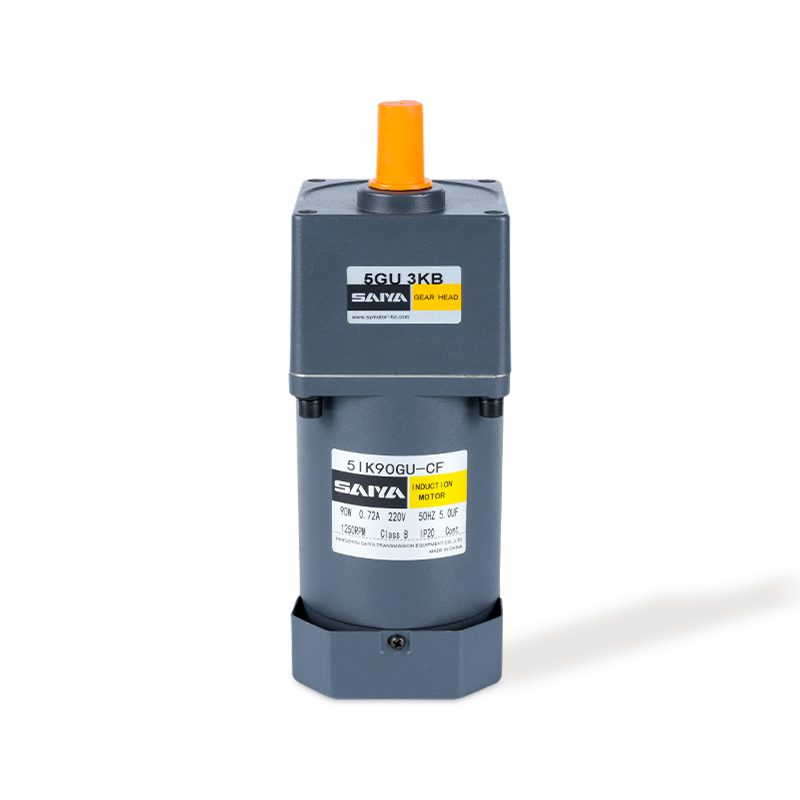

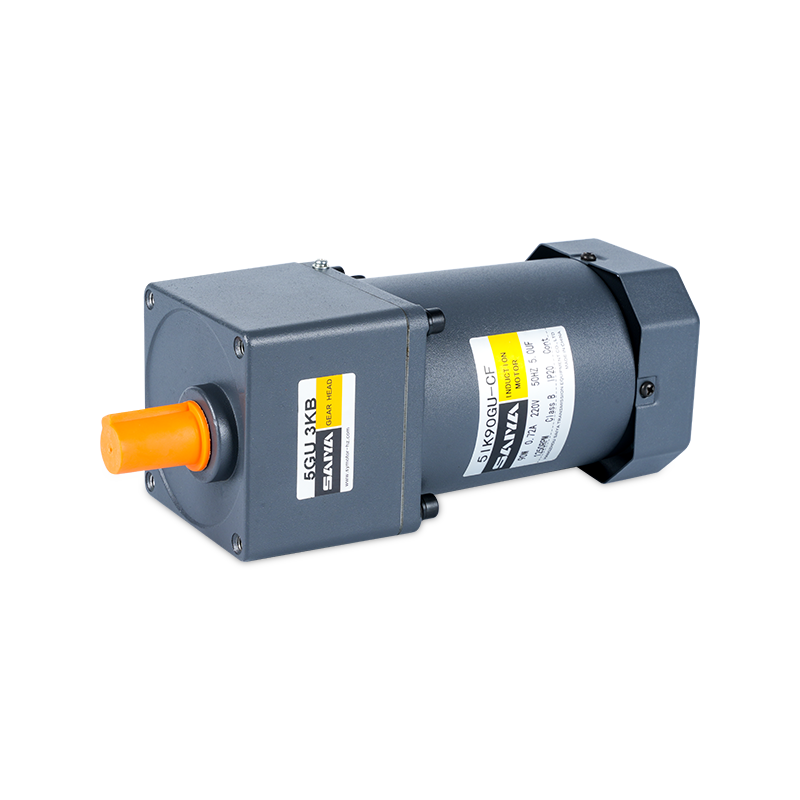

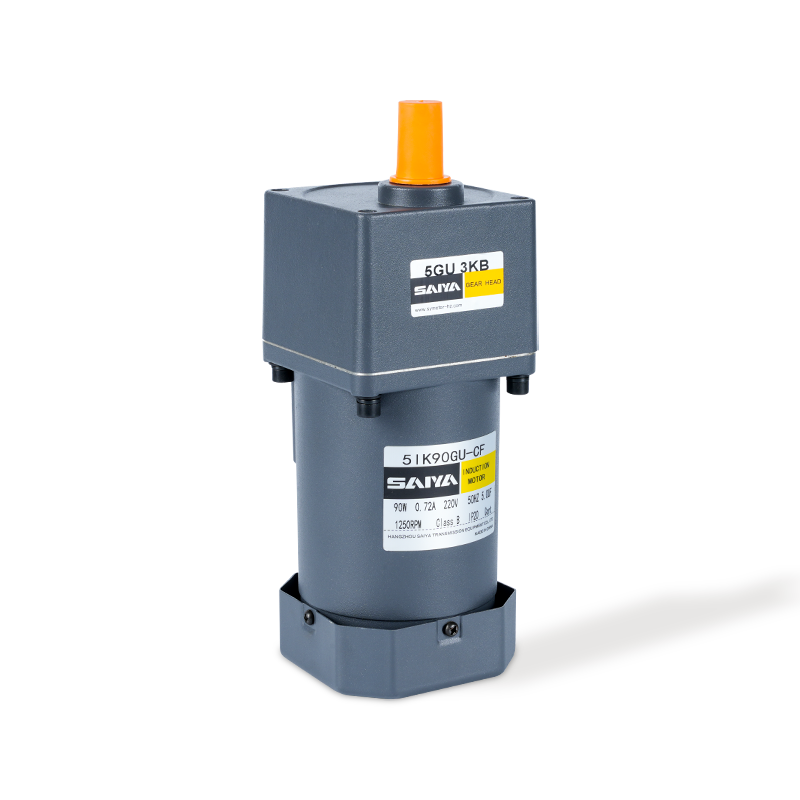

90W Induction AC Gear Motors

Voltage size: 90W, 90mmx90mm

Operating voltage: 1ph 110V-3ph 220V

Capacitor capacity: 5-29uf

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1550r/min)

  • 90W Induction AC Gear Motors
  • 90W Induction AC Gear Motors
  • 90W Induction AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

This 90W Induction AC Gear Motor is an efficient, compact and reliable small motor suitable for a wide range of industrial and household applications. Motor frame 90mm x 90mm  making it easy to install in space-constrained environments. It can be used in voltages ranging from single-phase 110V to three-phase 220V, and is highly adaptable to meet the needs of different power systems.

Equipped with capacitors  between 5 to 25uf to ensure smooth and efficient operation of the motor. Its speed is based on the asynchronous speed of the motor, which is 1200 revolutions per minute (r/min) at 50Hz and 1550 revolutions per minute (r/min) at 60Hz, which can meet the speed requirements in different working environments.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5IK90GU-AF
(5IK90A-AF)
5IK90GU-AFT
(5IK90A-AFT)		 90  1ph
100 		 50  1.55  450  700  1250  25.0
60  1.85  570  1550
5IK90GU-EF
(5IK90A-EF)		 5IK90GU-EFT
(5IK90A-EFT)		 90  1ph
110 		 60  1.40  500  570  1550  20.0
1ph
120 		 1.45
5IK90GU-CF
(5IK90A-CF)		 5IK90GU-CFT
(5IK90A-CFT)		 90  1ph
220 		 50  0.72  450  700  1250  5.0
1ph
230 		 0.70
5IK90GU-HF
(5IK90A-HF)		 5IK90GU-HFT
(5IK90A-HFT)		 90  1ph
220 		 60  0.71  450  570  1550
1ph
230 		 0.75
5IK90GU-SF
(5IK90A-SF)		 5IK90GU-SFT
(5IK90A-SFT)		 90  3ph
220 		 50  0.60  1350  700  1250
60  0.55  1100  570  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5RK90GU-AF
(5RK90A-AF)		 5RK90GU-AFT
(5RK90A-AFT)		 90  1ph
100 		 50  1.78  600  700  1250  30.0
60  2.35  570  1550
5RK90GU-EF
(5RK90A-EF)		 5RK90GU-EFT
(5RK90A-EFT)		 90  1ph
110 		 60  1.72  550  570  1550  25.0
1ph
120 		 600
5RK90GU-CF
(5RK90A-CF)		 5RK90GU-CFT
(5RK90A-CFT)		 90  1ph
220 		 50  0.82  560  700  1250  6.0
1ph
230 		 0.81
5RK90GU-HE
(5RK90A-HF)		 5RK90GU-HFT
(5RK90A-HFT)		 90  1ph
220 		 60  0.81  560  560  1550  6.0
1ph
230 		 0.80

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft
1200r/min
mN.m
90r/min
   mN.m
5IK90RGU-AF 5IK90RA-AF 90  1ph
100 		 50  90～1350 710  230  405  1.55  25.0
60  90～1650 260  1.85
5IK90RGU-EF 5IK90RA-EF 90  1ph
110 		 60  90～1650 710  260  410  1.40  20.0
1ph
120 		 1.45
5IK90RGU-CF 5IK90RA-CF 90  1ph
220 		 50  90～1350 710  230  410  0.72  5.0
1ph
230 		 0.70
5IK90RGU-HF 5IK90RA-HF 90  1ph
220 		 60  90～1650 710  260  410  0.71  5.0
1ph
230 		 0.75

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5  9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10  9
5IK90GU-AF□
5IK90GU-EF□
5IK90GU-CF□
5IK90GU-HF□
5IK90GU-SF□		 5GU□KB
5GU□K		 50Hz 1.1  2.0  2.8  3.4  4.3  5.1  6.4  7.7  9.2  11.6  13.6  16.6  20  20  20  20  20  20  20  20  20
17.3  20.4  28.6  34.7  43.9  52.0  65.3  78.6  93.3  118  142  169  200  200  200  200  200  200  200  200  200
60Hz 1.4  1.7  2.3  2.8  3.5  4.2  5.2  6.2  7.5  9.4  11.3  13.5  18.8  20  20  18.8  20  20  20  20  20
14.3  17.3  23.5  28.6  35.7  42.9  53.1  63.3  76.5  95.9  115  138  19.2  200  200  192  200  200  200  200  200

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 3.2kg / Gearhead : 1.5kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 4.3kg / Gearhead: 1.5kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.65kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 3.3kg / Gearhead: 1.5kg

Gearhead Model Gear Ratio L1
5GN□K 3～200 65.5

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 3.35kg / Gearhead: 1.5kg

Gearhead Model Gear Ratio L1
5GN□K 3～200 65.5

Enter the gear ratio in the box(□)within the model name
