Induction AC Gear Motors

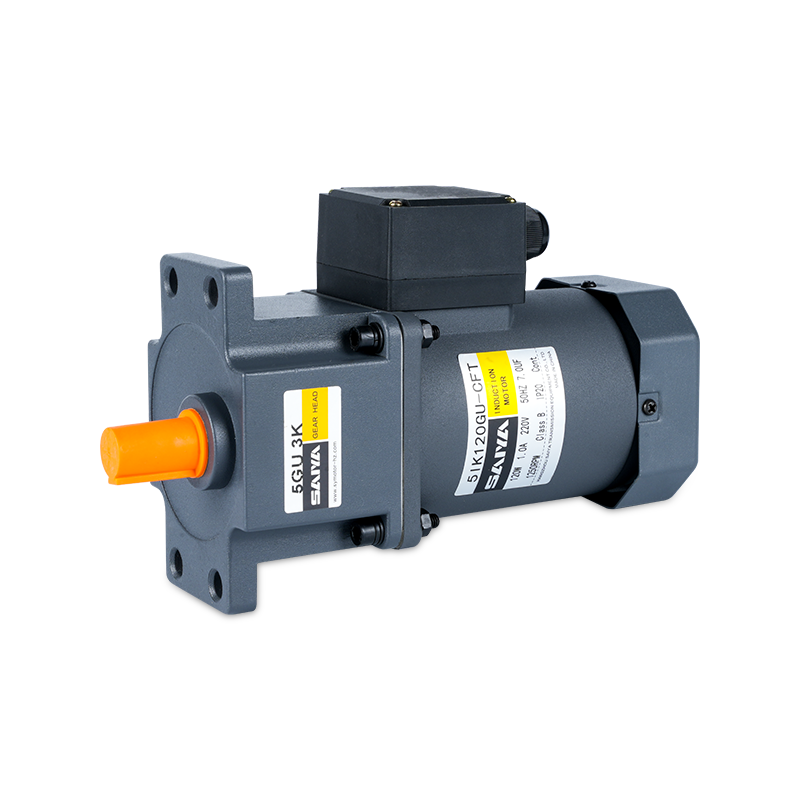

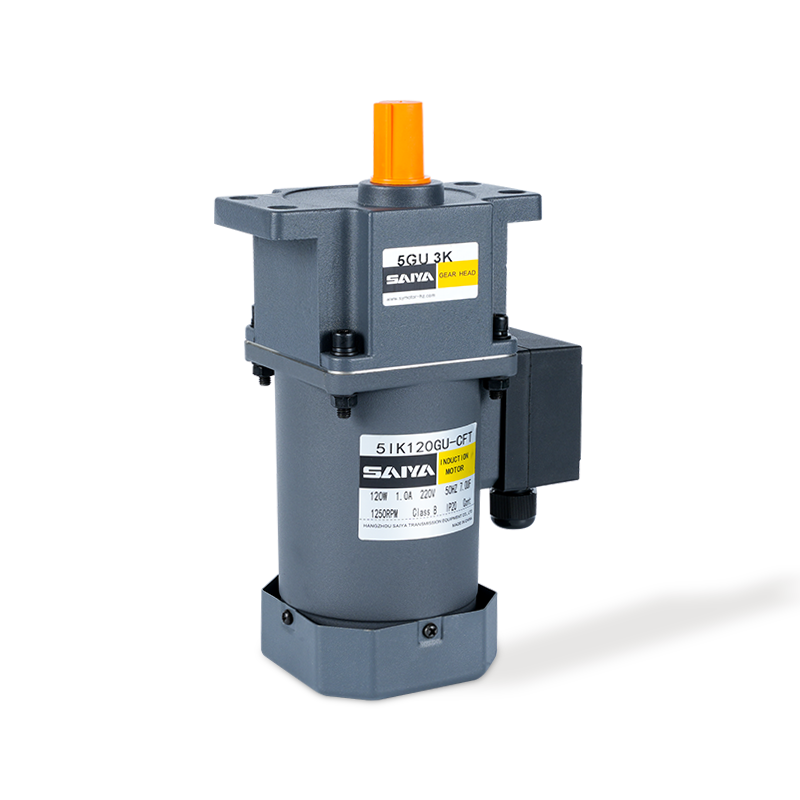

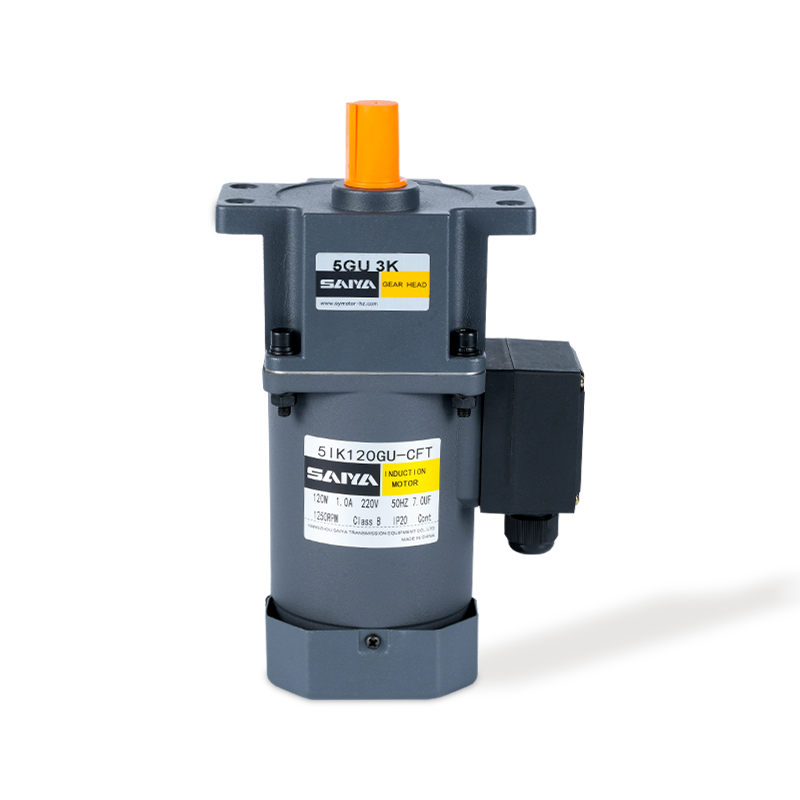

120W Induction AC Gear Motors

Voltage size: 120W, 90mmx90mm or 104mmx104mm

Current usage: 0.95-2.85A

Rated torque: 530-930mN. m

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1550r/min)

  • 120W Induction AC Gear Motors
  • 120W Induction AC Gear Motors
  • 120W Induction AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

The 120W induction AC gear motor is a versatile device that can be used in a variety of applications due to its efficient performance and compact size. The motors frame is 90mm x 90mm or104mmx104mm and have an operating current range of 0.95-2.85A. They are designed to provide a rated torque between 530-930mN.m, making them suitable for tasks that require precise control and medium power output.

The motors operate at asynchronous speeds that vary depending on the power supply frequency:1200rmp for 50Hz and 1550 for 60HZ,  This variation allows the motors to adapt to different regions and power standards, ensuring consistent performance in different operating environments.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5IK120GU-AF
(5IK120A-AF)		 5IK120GU-AFT
(5IK120A-AFT)		 120  1ph
100 		 50  2.1  600  930  1250  30.0
60  2.5  750  1550
5IK120GU-EF
(5IK120A-EF)		 5IK120GU-EFT
(5IK120A-EFT)		 120  1ph
110 		 60  1.65  600  750  1550  25.0
1ph
120 		 1.80
5IK120GU-CF
(5IK120A-CF)		 5IK120GU-CFT
(5IK120A-CFT)		 120  1ph
220 		 50  1.0  650  930  1250  7.0
1ph
230 		 0.95
5IK120GU-HF
(5IK120A-HF)		 5IK120GU-HFT
(5IK120A-HFT)		 120  1ph
220 		 60  1.0  600  750  1550
1ph
230 		 0.95
5IK120GU-SF
(5IK120A-SF)		 5IK120GU-SFT
(5IK120A-SFT)		 120  3ph
220 		 50  0.70  1850  930  1250
60  0.60  1600  750  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5RK120GU-AF
(5RK120A-AF)		 5RK120GU-AFT
(5RK120A-AFT)		 120  1ph
100 		 50  2.25  700  930  1250  35.0
60  2.85  750  1550

5RK120GU-EF
(5RK120A-EF)		 5RK120GU-EFT
(5RK120A-EFT		 120  1ph
110 		 60  1.90  650  750  1550  30.0
1ph
120 		 720
5RK120GU-CF
(5RK120A-CF)		 5RK120GU-CFT
(5RK120A-CFT)		 120  1ph
220 		 50  1.15  720  930  1250  8.0
1ph
230
5RK120GU-HF
(5RK120A-HF)		 5RK120GU-HFT
(5RK120A-HFT)		 120  1ph
220 		 60  1.20  720  750  1550  8.0
1ph
230

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft 1200r/min
mN.m		 90r/min
   mN.m
5IK120RGU-AF 5IK120RA-AF 120  1ph
100 		 50  90～1350 750  330  530  2.10  30
60  90～1650 2.50
5IK120RGU-EF 5IK120RA-EF 120  1ph
110 		 60  90～1650 750  360  530  1.65  25
1ph
120 		 1.80
5IK120RGU-CF 5IK120RA-CF 120  1ph
220 		 50  90～1350 750  330  530  1.00  7.0
1ph
230 		 0.95
5IK120RGU-HF 5IK120RA-HE 120  1ph
220 		 60  90~1650 750  360  530  1.00  7.0
1ph
230 		 0.95

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5  9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10  9
5IK120GU-AF□
5IK120GU-EF□
5IK120GU-CF□
5IK120GU-HF□
5IK120GU-SF□		 5GU□KB
5GU□K		 50Hz 2.3  2.7  3.8  4.5  5.6  6.8  8.5  10.2  12.2  15.3  18.4  20  20  20  20  20  20  20  20  20  20
23.4  27.5  38.7  45.9  57.1  69.3  86.7  104  124  156  187  200  200  200  200  200  200  200  200  200  200
60Hz 1.8  2.2  3.0  3.6  4.6  5.5  6.8  8.2  9.8  12.4  14.9  17.8  20  20  20  18.8  20  20  20  20  20
18.3  22.4  30.6  36.7  46.9  56.1  69.5  83.6  100  126  152  181  200  200  200  192  200  200  200  200  200

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 3.4kg / Gearhead : 1.5kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 4.3kg / Gearhead: 1.5kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.6kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 3.5kg / Gearhead: 1.5kg

Gearhead Model Gear Ratio L1
5GN□K 3～200 65.5

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 3.55kg / Gearhead: 1.5kg

Gearhead Model Gear Ratio L1
5GN□K 3～200 65.5

Enter the gear ratio in the box(□)within the model name
