  • 25W Reversible AC Gear Motors
Reversible AC Gear Motors

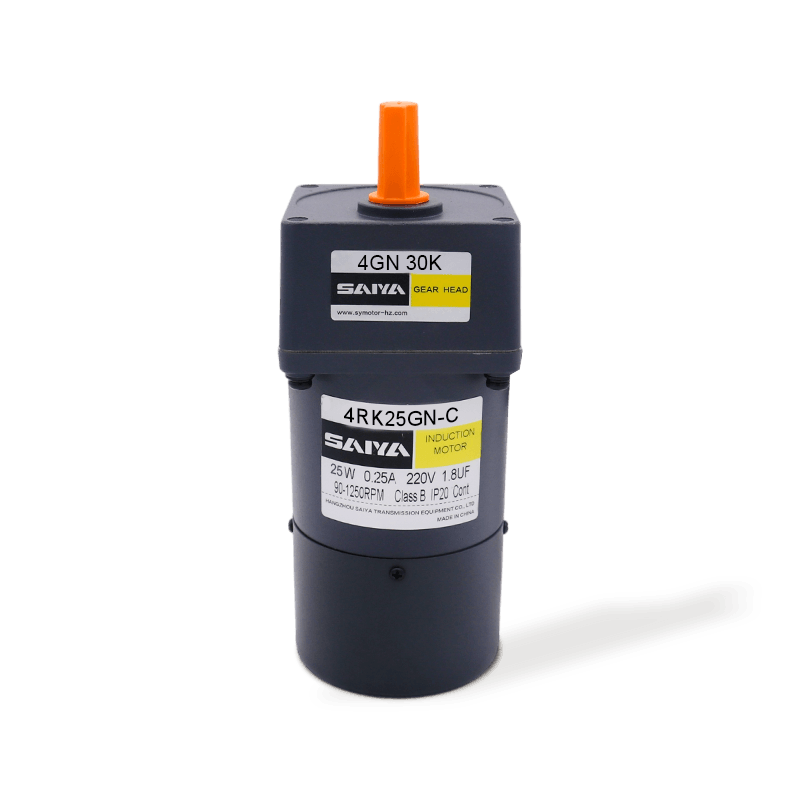

25W Reversible AC Gear Motors

Voltage size: 25W, 80mmx80mm/with brake

Current usage: 0.30-0.69A

Rated torque: 165-200mN. m

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1550r/min)

  • 25W Reversible AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

25W Reversible AC gear motors offer versatile and efficient solutions for various applications requiring precise control and reliability. These motors, with frame dimensions of 80mm x 80mm, come equipped with a brake system, ensuring enhanced safety and control. The operational current ranges between 0.30A and 0.69A, making them energy-efficient while providing robust performance.

The rated torque range from between 40mN.m and 60mN.m, suitable for applications needing moderate torque levels. These motors are designed to operate at asynchronous speeds, offering 1200 RPM at 50Hz and 1550 RPM at 60Hz. This variability in speed allows them to be adaptable to different operational requirements and frequencies.

The inclusion of a brake adds to their functionality, enabling precise stopping and holding capabilities, crucial in applications where stopping accuracy is essential. The compact size and efficient design make these motors ideal for use in small machinery, automation systems, and other equipment where space is at a premium and performance cannot be compromised.

10W reversible AC gear motors with brake systems provide a reliable, efficient, and versatile solution for various applications, delivering consistent performance with controlled speed and torque.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
4IK25GN-A
(4IK25A-A)		 4IK25GN-AT
(4IK25A-AT)		 25  1ph
100 		 50  0.50  120  200  1250  8.0
60  0.55  165  1550
4IK25GN-E
(4IK25A-E)		 4IK25GN-ET
(4IK25A-ET)		 25  1ph
110 		 60  0.45  120  165  1550  7.0
1ph
120 		 0.50
4IK25GN-C
(4IK25A-C)		 4IK25GN-CT
(4IK25A-CT)		 25  1ph
220 		 50  0.25  120  200  1250  1.8
1ph
230 		 0.23
4IK25GN-H
(4IK25A-H)		 4IK25GN-HT
(4IK25A-HT)		 25  1ph
220 		 60  0.23  120  165  1550
1ph
230
4IK25GN-S
(4IK25A-S)		 4IK25GN-ST
(4IK25A-ST)		 25  3ph
220 		 50  0.185  350  200  1250
60  0.170  250  165  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
4RK25GN-A
(4RK25A-A)		 4RK25GN-AT
(4RK25A-AT)		 25  1ph
100 		 50  0.59  160  200  1250  10.0
60  0.69  140  165  1550
4RK25GN-E
(4RK25A-E)		 4RK25GN-ET
(4RK25A-ET)		 25  1ph
110 		 60  0.45  140  165  1550  8.0
1ph
120 		 0.50

4RK25GN-C
(4RK25A-C)
4RK25GN-CT
(4RK25A-CT)		 25  1ph
220 		 50  0.29  140  200  1250  2.2
1ph
230 		 0.30  160
4RK25GN-H
(4RK25A-H)		 4RK25GN-HT
(4RK25A-HT)		 25  1ph
220 		 60  0.35  140  165  1550  2.2
1ph
230

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
  Pinion Shaft   Round Shaft 1200r/min
   mN.m		 90r/min
mN.m
4IK25RGN-A 4IK25RA-A 25  1ph
100 		 50  90～1350 190  47  88  0.50  8.0
60  90～1650 0.55
4IK25RGN-E 4IK25RA-E 25  1ph
110 		 60  90～1650 190  50  105  0.45  7.0
1ph
120 		 0.50
4IK25RGN-C 4IK25RA-C 25  1ph
220 		 50  90～1350 190  47  88  0.25  1.8
1ph
230 		 0.23
4IK25RGN-H 4IK25RA-H 25  1ph
220 		 60  90～1650 190  45  88  0.23  1.8
1ph
230

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5   9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10  9
4IK25GN-A□
4IK25GN-E□
4IK25GN-C□
4IK25GN-H□
4IK25GN-S□		 4GNCK 50Hz 0.49  0.58  0.81  0.97  1.2  1.5  2.0  2.4  2.9  3.7  4.4  5.3  6.6  7.9  8  8  8  8  8  8  8
5.00  5.91  8.26  9.89  12.2  15.3  20.4  24.4  29.6  37.7  44.9  54.1  67.3  80  80  80  80  80  80  80  80
60Hz 0.40  0.48  0.67  0.80  1.0  1.2  1.7  2.0  2.4  3.0  3.6  4.3  5.4  6.5  8  8  8  8  8  8  8
4.08  4.89  6.83  8.16  10.2  12.2  17.3  20.4  24.4  30.6  36.7  43.8  55.1  66.3  80  80  80  80  80  80  80

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 1.6kg / Gearhead : 0.8kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 2.15kg / Gearhead: 0.8kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.41kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.7kg / Gearhead:0.8kg

Gearhead Model Gear Ratio L1
4GN□K 3～18 32
25～200 43.5

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.75kg / Gearhead:0.8kg

Gearhead Model Gear Ratio L1
4GN□K 3～18 32
25～200 43.5

Enter the gear ratio in the box(□)within the model name
