Reversible AC Gear Motors

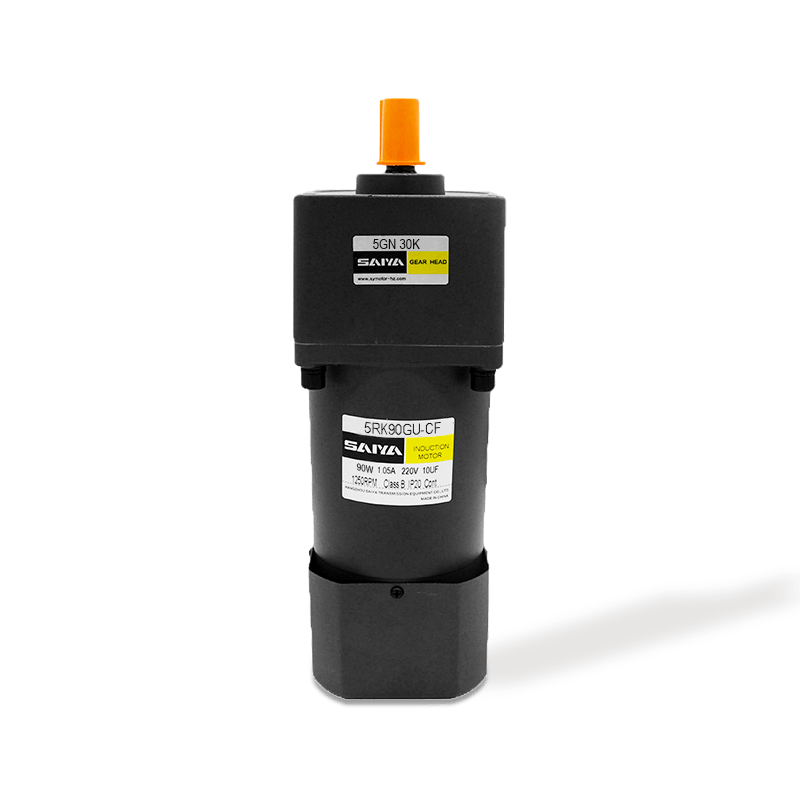

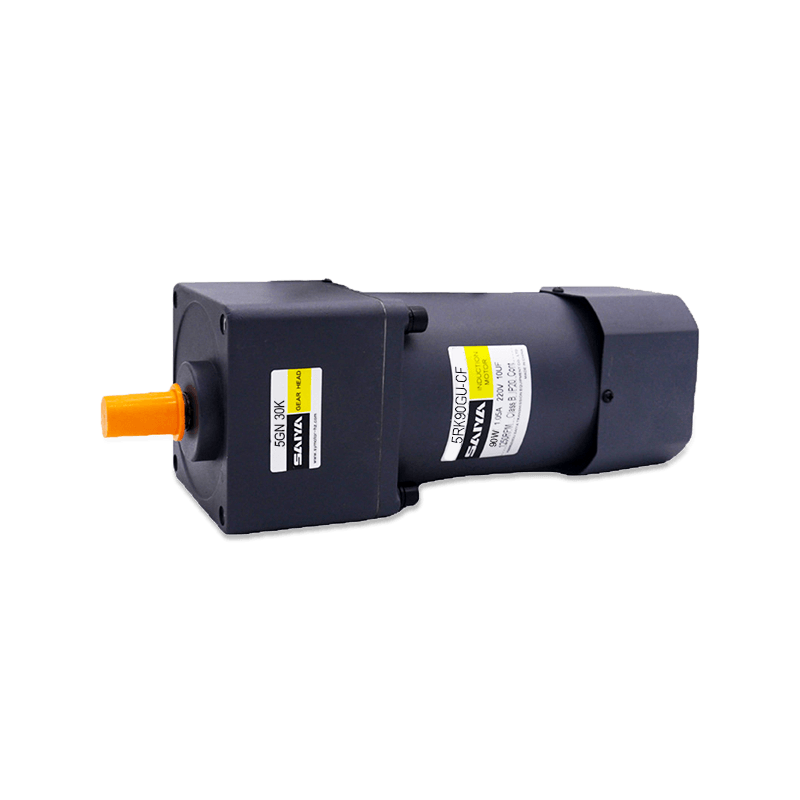

90W Reversible AC Gear Motors

Voltage size: 90W, 90mmx90mm/with brake

Operating voltage: 1ph 110-1ph 230V

Capacitor capacity: 6-30uf

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1450r/min)

  • 90W Reversible AC Gear Motors
  • 90W Reversible AC Gear Motors
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.
  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

90W reversible AC gear motors are compact with a frame size of 90mm x 90mm, these motors are designed to fit into tight spaces without compromising on performance. They come equipped with a braking system to ensure quick and accurate stopping, enhancing safety and control in various applications.

The motors are versatile in terms of power supply, operating on a single-phase voltage of either 110V or 230V,require a capacitor with a capacity ranging from 6to 30 μF to start and run efficiently.

These motors operate at asynchronous speeds, which vary depending on the frequency of the electrical supply:1200rmp for 50Hz and 1450 for 60HZ. This difference in speed allows the motors to be used in a wide range of applications, providing consistent performance across different environments and requirements.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft
Output
power
W
Voltage
V
Frequency
Hz
Current
A
Starting
Torque
mN.m
Rated
Torque
  mN.m
Rated
Speed
r/min
Capacitor
μF
Lead WireType
Dimensions①
Terminal Box Type
Dimensions②
5IK90GU-AF
(5IK90A-AF)

5IK90GU-AFT
(5IK90A-AFT)
90  1ph
100
50  1.55  450  700  1250  25.0
60  1.85  570  1550
5IK90GU-EF
(5IK90A-EF)
5IK90GU-EFT
(5IK90A-EFT)
90  1ph
110
60  1.40  500  570  1550  20.0
1ph
120
1.45
5IK90GU-CF
(5IK90A-CF)
5IK90GU-CFT
(5IK90A-CFT)
90  1ph
220
50  0.72  450  700  1250  5.0
1ph
230
0.70
5IK90GU-HF
(5IK90A-HF)
5IK90GU-HFT
(5IK90A-HFT)
90  1ph
220
60  0.71  450  570  1550
1ph
230
0.75
5IK90GU-SF
(5IK90A-SF)
5IK90GU-SFT
(5IK90A-SFT)
90  3ph
220
50  0.60  1350  700  1250
60  0.55  1100  570  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft
Output
power
W
Voltage
V
Frequency
Hz
Current
A
Starting
Torque
mN.m
Rated
Torque
  mN.m
Rated
Speed
r/min
Capacitor
μF
Lead WireType
Dimensions①
Terminal Box Type
Dimensions②
5RK90GU-AF
(5RK90A-AF)
5RK90GU-AFT
(5RK90A-AFT)
90  1ph
100
50  1.78  600  700  1250  30.0
60  2.35  570  1550
5RK90GU-EF
(5RK90A-EF)
5RK90GU-EFT
(5RK90A-EFT)
90  1ph
110
60  1.72  550  570  1550  25.0
1ph
120
600
5RK90GU-CF
(5RK90A-CF)
5RK90GU-CFT
(5RK90A-CFT)
90  1ph
220
50  0.82  560  700  1250  6.0
1ph
230
0.81
5RK90GU-HE
(5RK90A-HF)
5RK90GU-HFT
(5RK90A-HFT)
90  1ph
220
60  0.81  560  560  1550  6.0
1ph
230
0.80

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type
Output
power
W
Voltage
V
Frequency
Hz
Speed
Control
Range
r/min
Allowance Torque Starting
Torque
mN.m
Current
A
Capacitor
μF
Pinion Shaft Round Shaft
1200r/min
mN.m

90r/min
   mN.m
5IK90RGU-AF 5IK90RA-AF 90  1ph
100
50  90~1350 710  230  405  1.55  25.0
60  90~1650 260  1.85
5IK90RGU-EF 5IK90RA-EF 90  1ph
110
60  90~1650 710  260  410  1.40  20.0
1ph
120
1.45
5IK90RGU-CF 5IK90RA-CF 90  1ph
220
50  90~1350 710  230  410  0.72  5.0
1ph
230
0.70
5IK90RGU-HF 5IK90RA-HF 90  1ph
220
60  90~1650 710  260  410  0.71  5.0
1ph
230
0.75

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead
Gear Ratio 3.6  7.5  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10
5IK90GU-AF□
5IK90GU-EF□
5IK90GU-CF□
5IK90GU-HF□
5IK90GU-SF□
5GU□KB
5GU□K
50Hz 1.1  2.0  2.8  3.4  4.3  5.1  6.4  7.7  9.2  11.6  13.6  16.6  20  20  20  20  20  20  20  20  20
17.3  20.4  28.6  34.7  43.9  52.0  65.3  78.6  93.3  118  142  169  200  200  200  200  200  200  200  200  200
60Hz 1.4  1.7  2.3  2.8  3.5  4.2  5.2  6.2  7.5  9.4  11.3  13.5  18.8  20  20  18.8  20  20  20  20  20
14.3  17.3  23.5  28.6  35.7  42.9  53.1  63.3  76.5  95.9  115  138  19.2  200  200  192  200  200  200  200  200

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 3.2kg / Gearhead : 1.5kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 4.3kg / Gearhead: 1.5kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.65kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 3.3kg / Gearhead: 1.5kg

Gearhead Model Gear Ratio L1
5GN□K 3~200 65.5

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 3.35kg / Gearhead: 1.5kg

Gearhead Model Gear Ratio L1
5GN□K 3~200 65.5

Enter the gear ratio in the box(□)within the model name
