Reversible AC Gear Motors

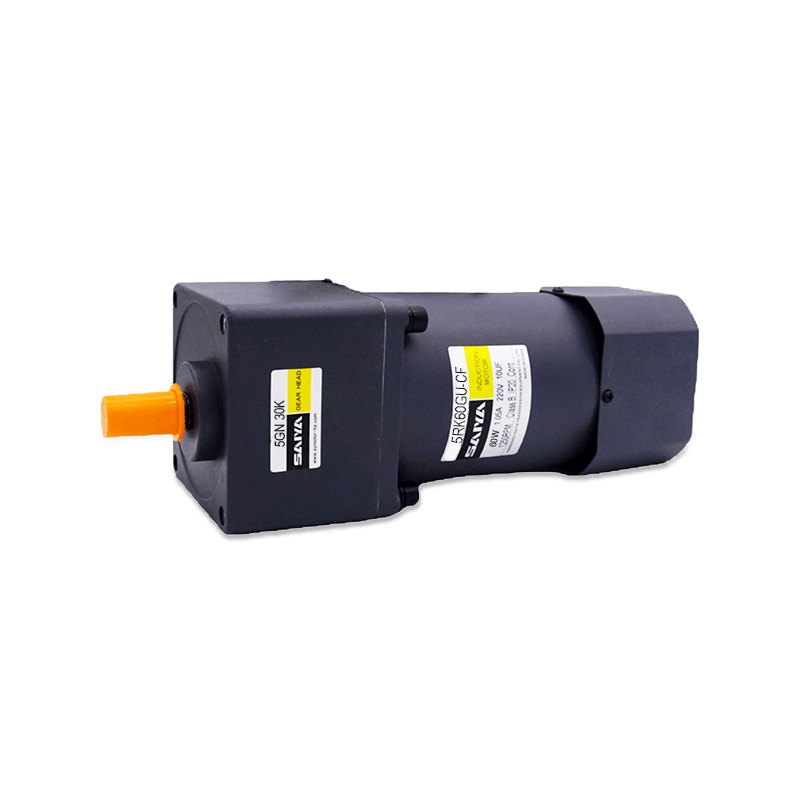

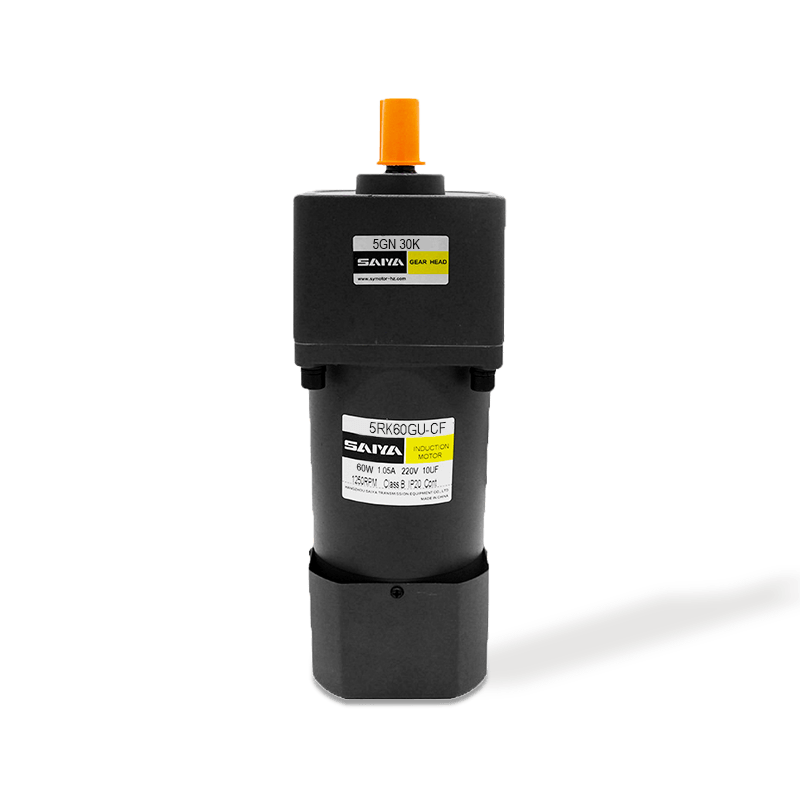

60W Reversible AC Gear Motors

Voltage size: 60w, 90mmx90mm/with brake

Current usage: 0.55-1.70A

Rated torque: 380-470mN. m

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1550r/min)

  • 60W Reversible AC Gear Motors
  • 60W Reversible AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

60W Reversible AC gear motors offer versatile and efficient solutions for various applications requiring precise control and reliability. These motors, with frame dimensions of 90mm x 90mm, come equipped with a brake system, ensuring enhanced safety and control. The operational current ranges between 0.55A and 1.70A, making them energy-efficient while providing robust performance.

The rated torque range from between 380mN.m and 470mN.m, suitable for applications needing moderate torque levels. These motors are designed to operate at asynchronous speeds, offering 1200 RPM at 50Hz and 1550 RPM at 60Hz. This variability in speed allows them to be adaptable to different operational requirements and frequencies.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5IK60GN-AF
(5IK60A-AF)		 5IK60GN-AFT
(5IK60A-AFT)		 60  1ph
100 		 50  1.00  320  470  1250  20.0
60  1.10  380  1550
5IK60GN-EF
(5IK40A-EF)		 5IK60GN-EFT
(5IK60A-EFT)		 60  1ph
110 		 60  0.80  300  380  1550  12.0
1ph
120 		 0.85
5IK60GN-CF
(5IK60A-CF)		 5IK60GN-CFT
(5IK60A-CFT)		 60  1ph
220 		 50  0.50  340  470  1250  4.0
1ph
230 		 0.55
5IK60GN-HF
(5IK60A-HF)		 5IK60GN-HFT
(5IK60A-HFT)		 60  1ph
220 		 60  0.50  340  380  1550
1ph
230 		 0.55
5IK60GN-SF
(5IK60A-SF)		 5IK60GN-SFT
(5IK60A-SFT)		 60  3ph
220 		 50  0.45  1000  470  1250
60  0.40  800  380  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
 mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5RK60GN-AF
(5RK60A-AF)		 5RK60GN-AFT
(5RK60A-AFT)		 60  1ph
100 		 50  1.26  470  470  1250  25.0
60  1.70  380  1550
5RK60GN-EF
(5RK60A-EF)		 5RK60GN-EFT
(5RK60A-EFT)		 60  1ph
110 		 60  1.05  330  380  1550  15.0
1ph
120 		 380
5RK60GN-CF
(5RK60A-CF)		 5RK60GN-CFT
(5RK60A-CFT)		 60  1ph
220 		 50  0.55  420  470  1250  4.5
1ph
230 		 0.60  460
5RK60GN-HF
(5RK60A-HF)		 5RK60GN-HFT
(5RK60A-HFT)		 60  1ph
220 		 60  0.55  420  380  1550  4.5
1ph
230 		 0.60  460

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
  Pinion Shaft    Round Shaft 1200r/min
mN.m		 90r/min
mN.m
5IK60RGN-AF 5IK60RA-AF 60  1ph
100 		 50  90～1350 460  140  265  1.00  20.0
60  90～1650 490  160  1.10
5IK60RGN-EF 5IK60RA-EF 60  1ph
110 		 60  90～1650 490  160  265  0.80  12.0
1ph
120 		 0.85
5IK60RGN-CF 5IK60BA-CF 60  1ph
220 		 50  90～1350 490  140  265  0.50  4.0
1ph
230 		 0.55
5IK60RGN-HF 5IK60RA-HF 60  1ph
220 		 60  90～1650 490  160  265  0.50  4.0
1ph
230 		 0.55

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5  9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10 8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10   9
5IK60GN-AF□
5IK60GN-EF□
5IK60GN-CF□
5IK60GN-HF□
5IK60GN-SF□		 5GN□K 50Hz 1.1  1.4  1.9  2.3  2.9  3.4  4.8  5.7  6.8  8.6  10 10 10  10  10  10  10 10  10   10   10
11.2  14.2  19.3  23.4  29.6  34.7  48.9  58.1  69.3  87.7  100  100  100  100  100  100  100  100  100  100  100
60Hz 0.92  1.1  1.5  1.8  2.3  2.8  3.8  4.6  5.5  6.9  8.3  10  10  10  10  10  10  10  10  10  10
9.38  11.2  15.3  18.3  23.4  28.5  38.7  46.9  56.1  70.1  84.7  100  100  100  100  100  100  100  100  100  100

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 2.7kg / Gearhead : 1.35kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 3.5kg / Gearhead: 1.35kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.6kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.1kg / Gearhead:0.5kg

Gearhead Model Gear Ratio L1
2GN□K 3～18 42
25～200 60

Enter the gear ratio in the box(□)within the model name
