Small AC Gear Motor

3700W Series

Motor power: 3700W(5HP) Horizontal or Vertical install

Phase: Single Phase / Three Phase

Gear Ratio: 3-1800K

Motor selection: 3 phase motor 220V-240V/380V-415V,50HZ/60HZ; 1 phase motor, 220V,50HZ/60HZ; 1 phase motor, 110V,50HZ / 60HZ

Output shaft diameter: φ40mm φ50mm

  • 3700W Series
  • 3700W Series
  • 3700W Series
  • 3700W Series
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

CH40/CV40-3700W - (Standard box ratio 1:3~25) (Reduced box ratio 1:30~120) Dimensional drawing

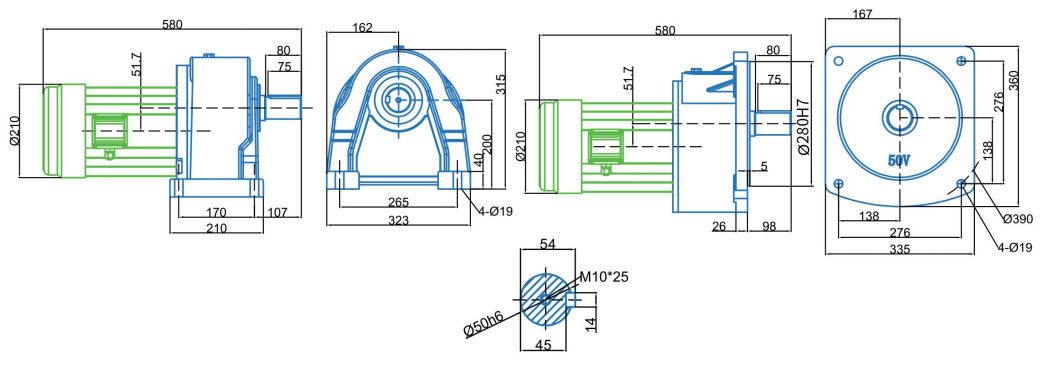

CH50/CV50-3700W - (Standard Box 1:10~120 Ratio) Dimensional Drawing

Electrical machinery parameter

Electrical machinery parameter

Power (kW)

Type

Voltage(v)

Frequency(Hz)

Rated Current(A)

Rated Rotation speed(rmp)

Capacitors(μF)

Insulation classification

Protective System

3.7kW

5HP

Three-phase

220V/380V

50Hz

16.3A/9.1A

1420rmp

/

F

IP54



3700W-(1:3-180 Digital ratio)Torque table

Gera Ratio

3

5

10

15

20

25

30

40

50

60

70

80

90

100

120

140

160

180

200

300

1200

1800

Output R.P.M.

50Hz

500

300

150

100

75

60

50

37

30

25

21.4

18.8

16.7

15

12.5

10.7

9.4

8.4

7.5

5

1.25

0.83

60Hz

600

360

180

120

90

72

60

45

36

30

25.7

22.5

20

18

15

12.9

11.3

10

9

6

1.5

1

Output Torque kg/m

50Hz

6

11

22

32.6

43.6

53.9

64.7

86.3

106.7

126.8

150

173.2

194.9

216.5

260















60Hz

5.5

10

20

29.8

36

49.5

58.8

78.4

97

115.2

124.2

142

159.8

177.5

213















The speed in the table is calculated based on the rated speed of the motor at 50Hz/60Hz, 1420r.min/1732r.min

The actual speed will vary slightly with the size of the load, with a variation range of about ± 5%.
