Small AC Gear Motor

5500W Series

Motor power: 5500W Horizontal or Vertical install

Phase: Single Phase / Three Phase

Gear Ratio: 3-1800K

Motor selection: 3 phase motor 220V-240V/380V-415V,50HZ/60HZ; 1 phase motor, 220V,50HZ/60HZ; 1 phase motor, 110V,50HZ / 60HZ

Output shaft diameter: φ50mm

  • 5500W Series
  • 5500W Series
  • 5500W Series
  • 5500W Series
No previous article   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

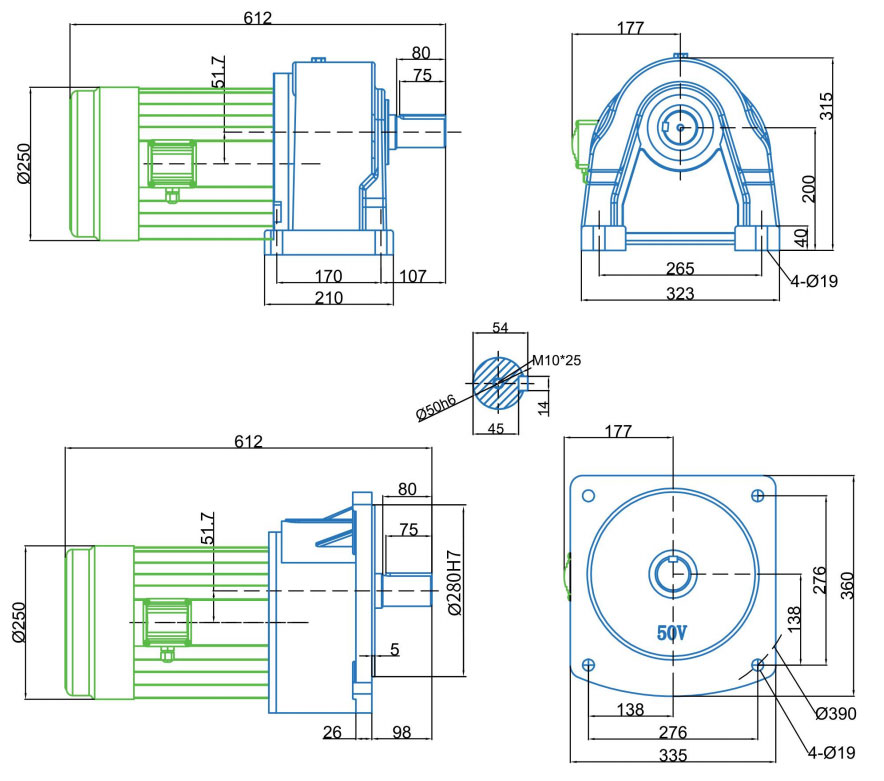

CH50/CV50-5500W - (Standard Box 1:10~120 Ratio) Dimensional Drawing

Electrical machinery parameter

Electrical machinery parameter

Power (kW)

Type

Voltage(v)

Frequency(Hz)

Rated Current(A)

Rated Rotation speed(rmp)

Capacitors(μF)

Insulation classification

Protective System

5.5kW

7.5HP

Three-phase

380V

50Hz

15.2A

1420rmp

/

F

IP54



5500W-(1:10-120 Digital ratio)Torque table

Gera Ratio

10

15

20

25

30

40

50

60

70

80

90

100

120

140

160

180

200

300

1200

1800

Output R.P.M.

50Hz

150

100

75

60

50

37

30

25

21.4

18.8

16.7

15

12.5

10.7

9.4

8.4

7.5

5

1.25

0.83

60Hz

180

120

90

72

60

45

36

30

25.7

22.5

20

18

15

12.9

11.3

10

9

6

1.5

1

Output Torque kg/m

50Hz

31.4

47.2

62.9

78.6

94.3

125.8

157.2

188.6

220

251.5

283

314.4

















60Hz

25.8

38.7

51.6

64.4

77.3

103.1

128.9

154.7

180.4

206.2

232

257.8

















The speed in the table is calculated based on the rated speed of the motor at 50Hz/60Hz, 1420r.min/1732r.min

The actual speed will vary slightly with the size of the load, with a variation range of about ± 5%.
