  • 140W Speed Control AC Gear Motors
Speed Control AC Gear Motors

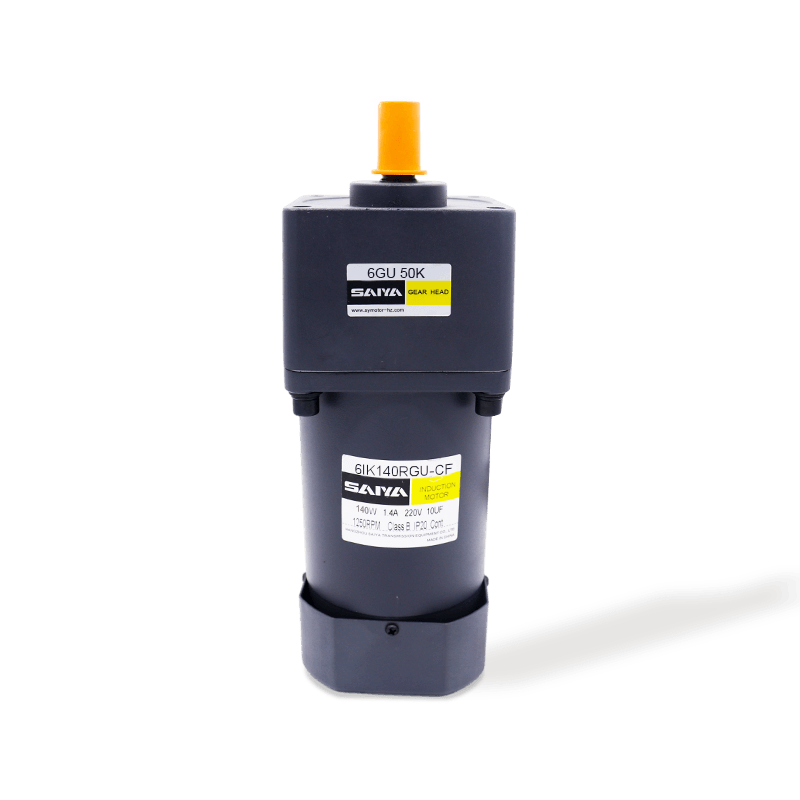

140W Speed Control AC Gear Motors

Voltage size: 140W, 104mmx104mm/with speed controller

Operating voltage: 1ph 110-1ph 230V

Capacitor capacity: 10-35uf

Speed range: 90-1650rpm

  • 140W Speed Control AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

140W speed control AC gear motors are versatile and efficient devices designed for a wide range of applications requiring precise speed control. These motors frame 104mm x 104mm, making them ideal for use in space-constrained environments. They come equipped with a speed controller, allowing for seamless adjustments to motor speed as needed.

These gear motors are compatible with single-phase power supplies, operating at voltages ranging from 110V to 230V. This wide voltage range ensures their suitability for various global power standards. The built-in capacitor, with a capacity ranging from 10 to 35μF, enhances the motor's performance by providing improved starting torque and overall efficiency.

One of the key features of these motors is their adjustable speed range, which range from 90 to 1650 RPM. This flexibility allows for precise control over the motor's output, making them suitable for applications in automation, conveyors, packaging machinery, and other equipment where varying speeds are required.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
6IK140GU-AF
(6IK140A-AF)		 6IK140GU-AFT
(6IK140A-AFT)		 140  1ph
100 		 50  2.7  700  1080  1250  35.0
60  3.0  870  1550
6IK140GU-EF
(6IK140A-EF)		 6IK140GU-EFT
(6IK140A-EFT)		 140  1ph
110 		 60  1.80  700  850  1600  25.0
1ph
120 		 1.95
6IK140GU-CF
(6IK140A-CF)		 6IK140GU-CFT
(6IK140A-CFT)		 140  1ph
220 		 50  1.05  850  1040  1350  10.0
1ph
230 		 1.15
6IK140GU-HF
(6IK140A-HF)		 6IK140GU-HFT
(6IK140A-HFT)		 140  1ph
220 		 60  1.05  750  850  1600
1ph
230 		 1.15
6IK140GU-SF
(6IK140A-SF)		 6IK140GU-SFT
(6IK140A-SFT)		 140  3ph
220 		 50  0.85  2700  1080  1250
60  0.75  2200  870  1550

REUERSIBE MOTOR SPECS

Model ·Type
Lead Wire Type		 Rating Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
6RK140GU-AFM 6RK140A-AFM 30min 140  1ph
100 		 50  2.7  700  1080  1250  35
60  3.0  870  1550
6RK140GU-EFM 6RK140A-EFM 30min 140  1ph
110 		 60  1.80  700  850  1550  25
1ph
120 		 1.95
6RK140GU-CFM 6RK140A-CFM 30min 140  1ph
220 		 50  1.05  850  1040  1250  10
1ph
230 		 1.15
6RK140GU-HFM 6RK140A-HFM 30min 140  1ph
220 		 60  1.05  750  850  1550
1ph
230 		 1.15
6RK140GU-SM 6RK140A-SM 30min 140  3ph
220 		 50  0.85  2700  1080  1250
60  0.75  2200  870  1550

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
    Pinion Shaft   Round Shaft 1200r/min
   mN.m		 90r/min
   mN.m
6IK140RGU-AF 6IK140RA-AF 140  1ph
100 		 50  90～1350 830  420  620  2.70  35
60  90～1650 3.00
6IK140RGU-EF 6IK140RA-EF 140  1ph
110 		 60  90～1650 830  450  620  1.80  25
1ph
120 		 1.95
6IK140RGU-CE 6IK140BA-CE 140  1ph
220 		 50  90～1350 830  420  620  1.05  10
1ph
230 		 1.15
6IK140RGU-HF 6IK140RA-HF 140  1ph
220 		 60  90～1650 830  450  620  1.05  10
1ph
230 		 1.15

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5  9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
6IK140GU-AF□
6IK140GU-EF□
6IK140GU-SF□		 6GU□K 50Hz 2.6  3.1  4.4  5.2  6.6  7.9  9.9  11.8  14.2  17.8  21.4  25.7  35.6  40  40  40  40  40  40  40  40
26.5  31.6  44.8  53.0  67.3  80.6  101  120  144  181  218  262  363  400  400  400  400  400  400  400  400
2.5  3.0  4.2  5.1  6.3  7.6  9.5  11.4  13.7  17.2  20.6  247  34.3  40  40  40  40  40  40  40  40
25.5  30.6  42.8  52.0  63.2  77.5  96.9  116  139  175  210  252  349  400  400  400  400  400  400  400  400

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

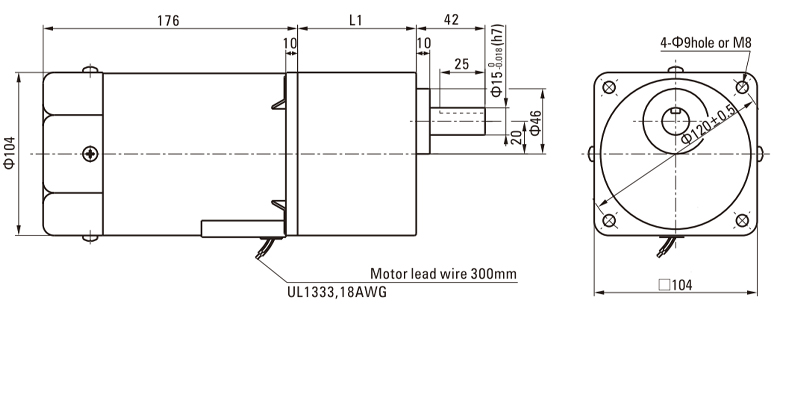

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 5.0kg / Gearhead : 2.1kg

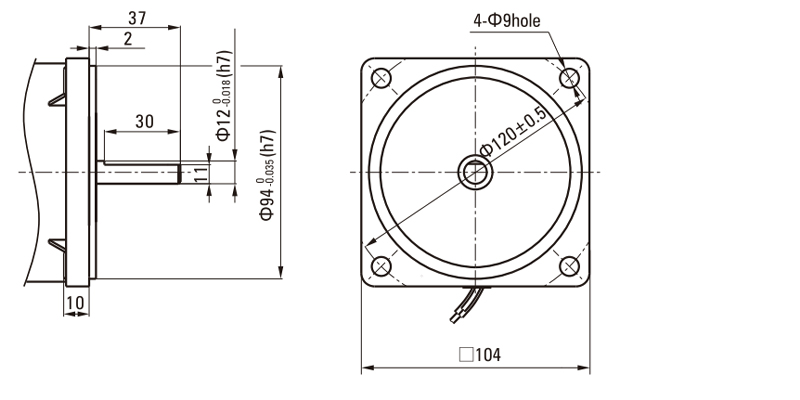

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

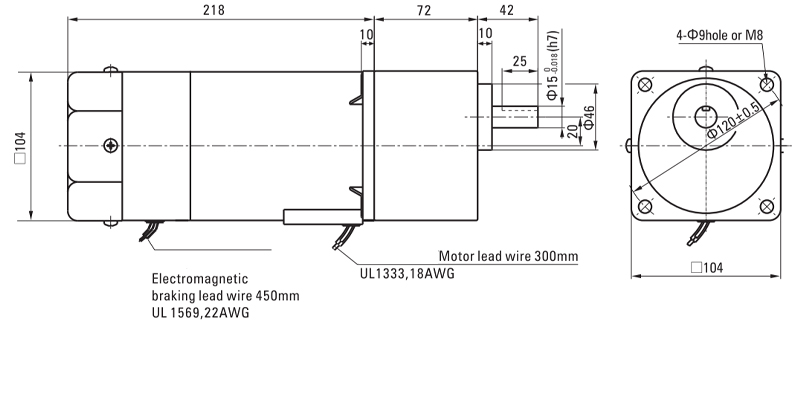

Lead Wiring Type(Brake Motors)

Weight: Motor: 5.85kg / Gearhead: 2.1kg

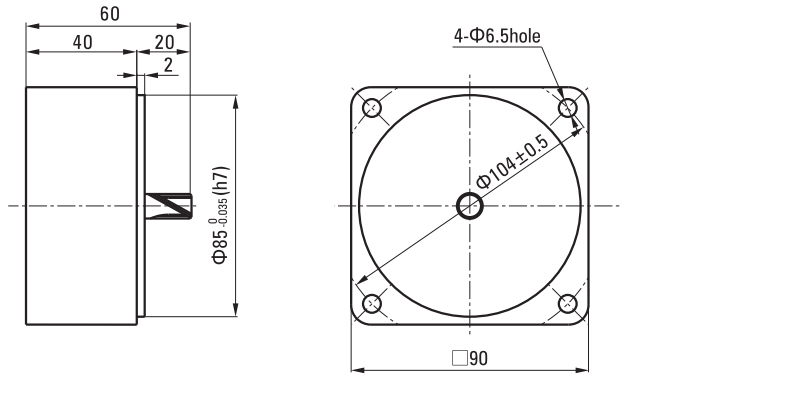

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.6kg

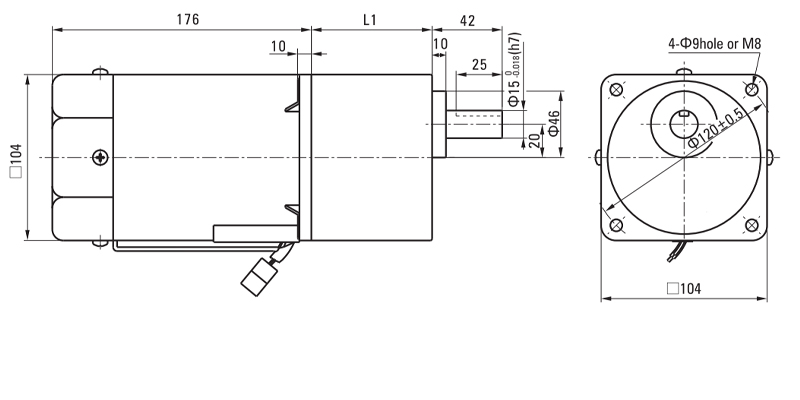

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.1kg / Gearhead: 2.1kg

Gearhead Model Gear Ratio L1
6GN□K 3～200 72

Enter the gear ratio in the box(□)within the model name

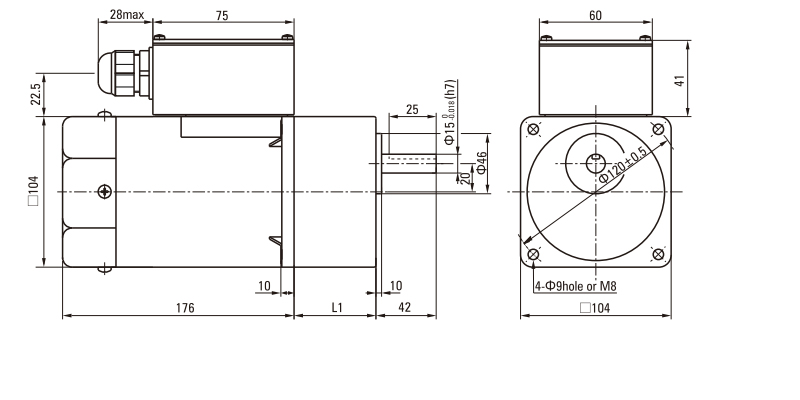

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.15kg / Gearhead: 2.1kg

Gearhead Model Gear Ratio L1
6GN□K 3～200 72

Enter the gear ratio in the box(□)within the model name
