  • 200W Speed Control AC Gear Motors
Speed Control AC Gear Motors

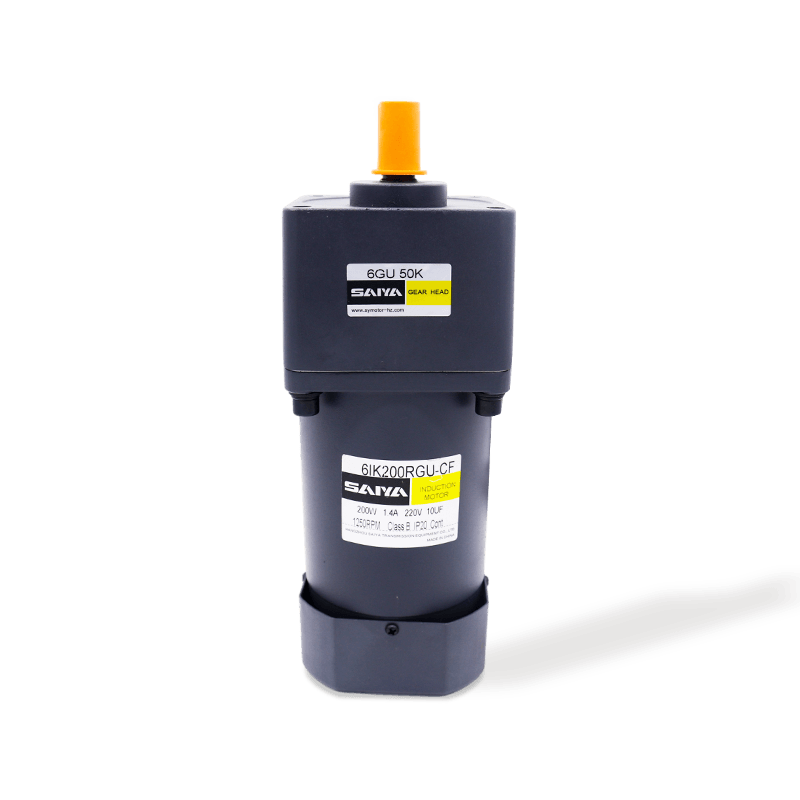

200W Speed Control AC Gear Motors

Voltage size: 200W, 104mmx104mm/with speed controller

Current usage: 1.05-3.00A

Rated torque: 420-830mN. m

Speed range: 90-1650rpm

  • 200W Speed Control AC Gear Motors
No previous article   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

200W, 104x104mm AC gear motors with speed control are compact yet powerful, ideal for various small machinery applications,equipped with a speed controller to offer precise regulation of motor speed. The current usage for these motors ranges from 1.05 to 3.00A, ensuring efficient performance without excessive power consumption. They provide a rated torque between 420 to 830mN·m, making them suitable for tasks that require moderate force.

One of the standout features of these motors is their adjustable speed range, which spans from 90 to 1650 RPM. This versatility allows them to be used in a wide array of applications, from slow, steady operations to those requiring rapid movements. The integrated speed controller is user-friendly, making it simple to adjust the motor speed to match the specific requirements of any project.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
6IK200GU-AF
(6IK200A-AF)		 6IK200GU-AFT
(6IK200A-AFT)		 200  1ph
100 		 50  3.2  900  1520  1250  45.0
60  3.5  1230  1550
6IK200GU-EF
(6IK200A-EF)		 6IK200GU-FFT
(6IK200A-EFT)		 200  1ph
110 		 60  2.75  850  1230  1550  35.0
1ph
120 		 2.65
6IK200GU-CF
(6IK200A-CF)		 6IK200GU-CFT
(6IK200A-CFT)		 200  1ph
220 		 50  1.40  1000  1520  1250  10.0
1ph
230
6IK200GU-HF
(6IK200A-HF)		 6IK200GU-HFT
(6IK200A-HFT)		 200  1ph
220 		 60  1.40  900  1230  1550
1ph
230
6IK200GU-SF
(6IK200A-SF)		 6IK200GU-SFT
(6IK200A-SFT)		 200  3ph
220 		 50  1.20  3400  1520  1250
60  1.0  2700  1230  1550

REUERSIBE MOTOR SPECS

Model ·Type
Lead Wire Type		    Rating Output
power

W		 Voltage
V		 Frequency

Hz		 Current


A		 Starting
Torque

mN.m		 Rated
Torque

mN.m		 Rated
Speed

r/min		 Capacitor

μF
Pinion Shaft Round Shaft
6RK200GU-AFM 6RK200A-AFM 30min 200  1ph
100 		 50  3.2  900  1385  1250  45
60  3.5  1120  1550
6RK200GU-EFM 6RK200A-EFM 30min 200  1ph
110 		 60  2.75  850  1120  1550  35
1ph
120 		 2.65
6RK200GU-CFM 6RK200A-CFM 30min 200  1ph
220 		 50  1.40  1100  1385  1250  12
1ph
230
6RK200GU-HFM 6RK200A-HFM 30min 200  1ph
220 		 60  1.40  1000  1120  1550
1ph
230
6RK200GU-SFM 6RK200A-SFM 30min 200  3ph
220 		 50  1.20  3400  1385  1250
60  1.00  2700  1120  1550

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft V 1200r/min
   mN.m		 90r/min
   mN.m
6IK200RGU-AF 6IK200RA-AF 200  1ph
100 		 50  90～1350 920  500  680  3.2  45
60  90～1650 3.50
6IK200RGU-EF 6IK200RA-EF 200  1ph
110 		 60  90～1650 920  500  680  2.75  35
1ph
120 		 2.65
6IK200RGU-CF 6IK200RA-CF 200  1ph
220 		 50  90～1350 920  500  680  1.40  10
1ph
230
6IK200RGU-HF   6IK200RA-HF 200  1ph
220 		 60  90～1650 920  500  680  1.40  10
1ph
230 		 1.40

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6   5  6  7.5  9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  42  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10  9
6IK200GU-AF□
6IK200GU-EF□
6IK200GU-CF□
6IK200GU-HF□
6IK200GU-SF□		 6GU□K 50Hz 3.71  4.46  6.19  7.43  9.28  11.1  13.9  16.7  20.1  25.2  30.3  36.3  40  40  40  40  40  40  40  40  40
37.9  45.5  63.1  75.8  94.7  114  142  171  205  257  309  370  400  400  400  400  400  400  400  400  400
60Hz 2.99  3.59  4.99  5.99  7.49  8.98  11.2  13.5  16.2  20.3  24.4  29.3  40  40  40  40  40  40  40  40  40
30.6  36.7  50.9  61.1  76.4  91.7  115  138  165  207  249  299  400  400  400  400  400  400  400  400  400

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

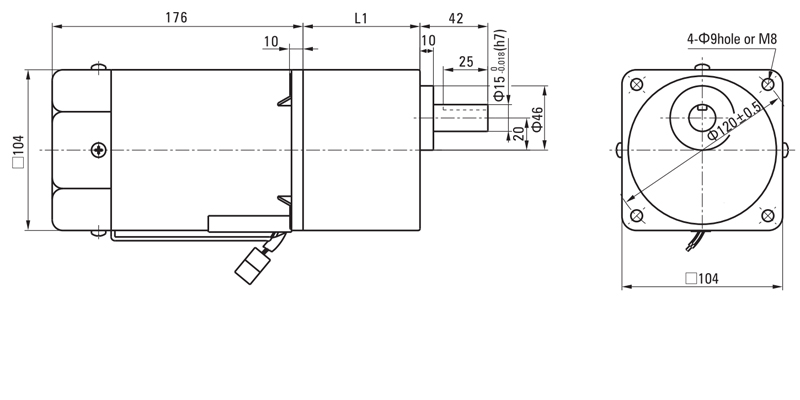

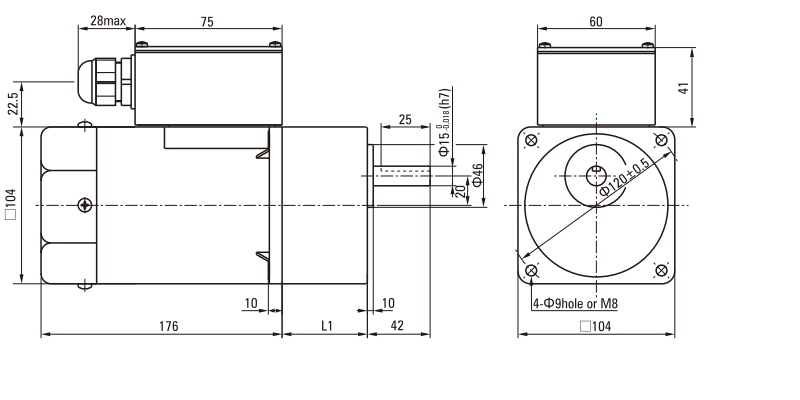

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 5.0kg / Gearhead : 2.1kg

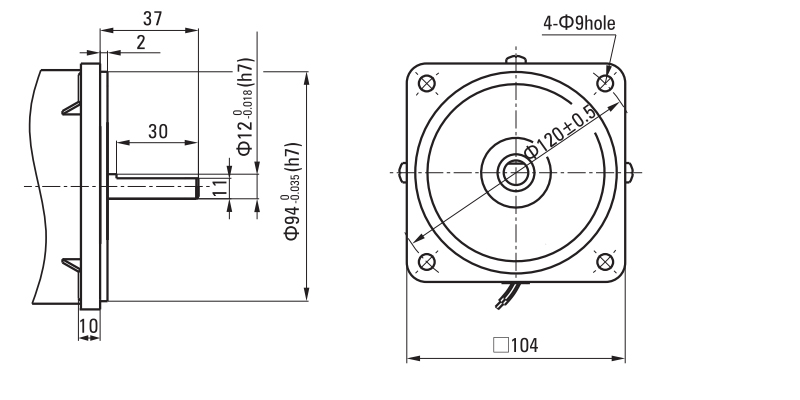

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

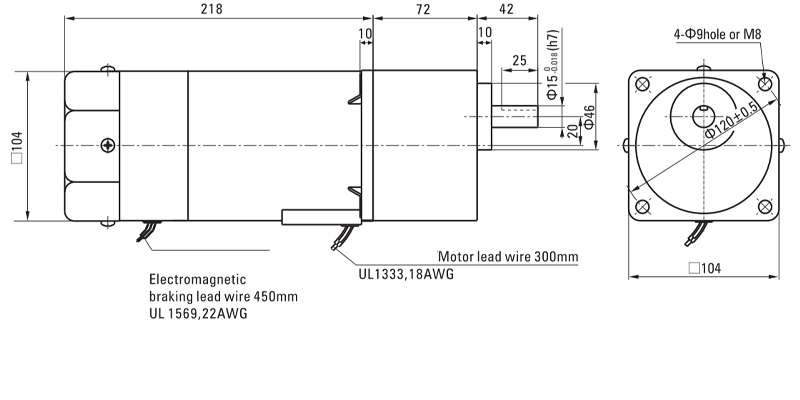

Lead Wiring Type(Brake Motors)

Weight: Motor: 5.9kg / Gearhead: 7.1kg

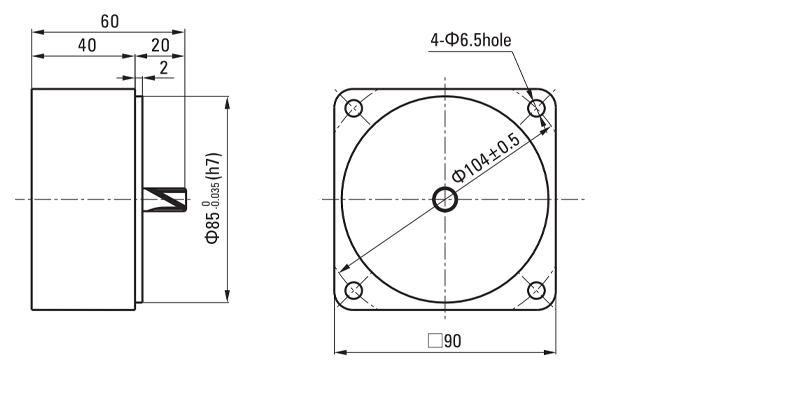

Decimal Gearhead

It can be connected to the GU pinion shaft type.

Weight: 0.65kg

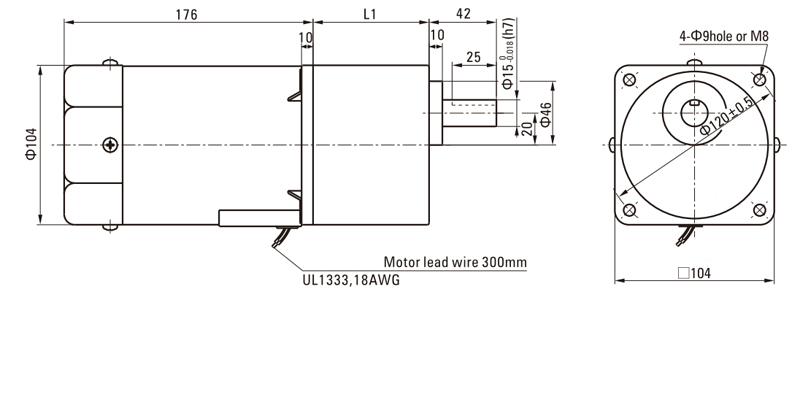

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.1kg / Gearhead: 2.1kg

Gearhead Model Gear Ratio L1
6GN□K 3～200 72

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 5.15kg / Gearhead: 2.1kg

Gearhead Model Gear Ratio L1
6GN□K 3～200 72

Enter the gear ratio in the box(□)within the model name
