Speed Control AC Gear Motors

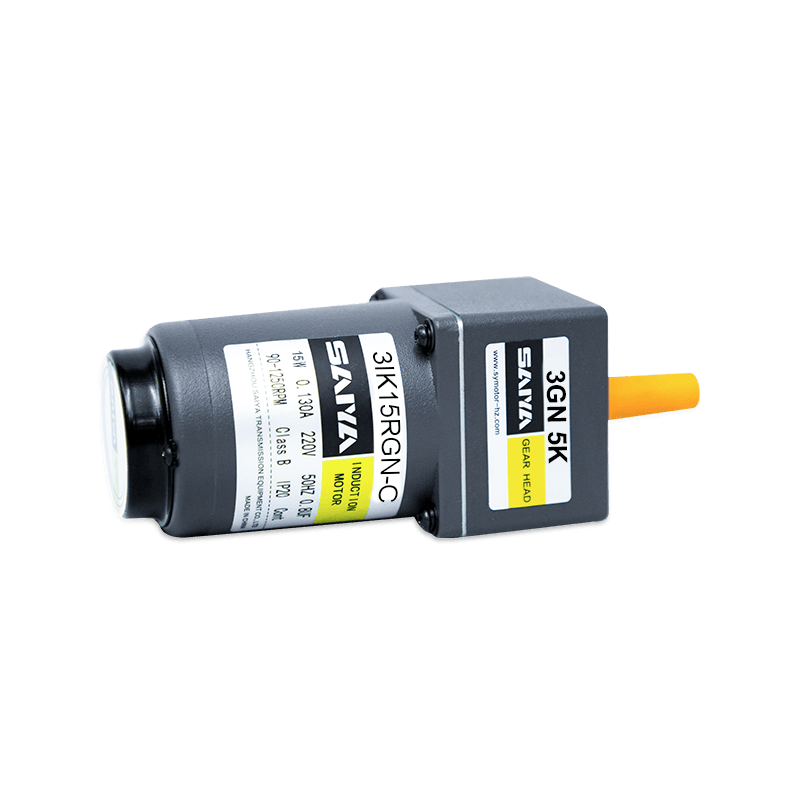

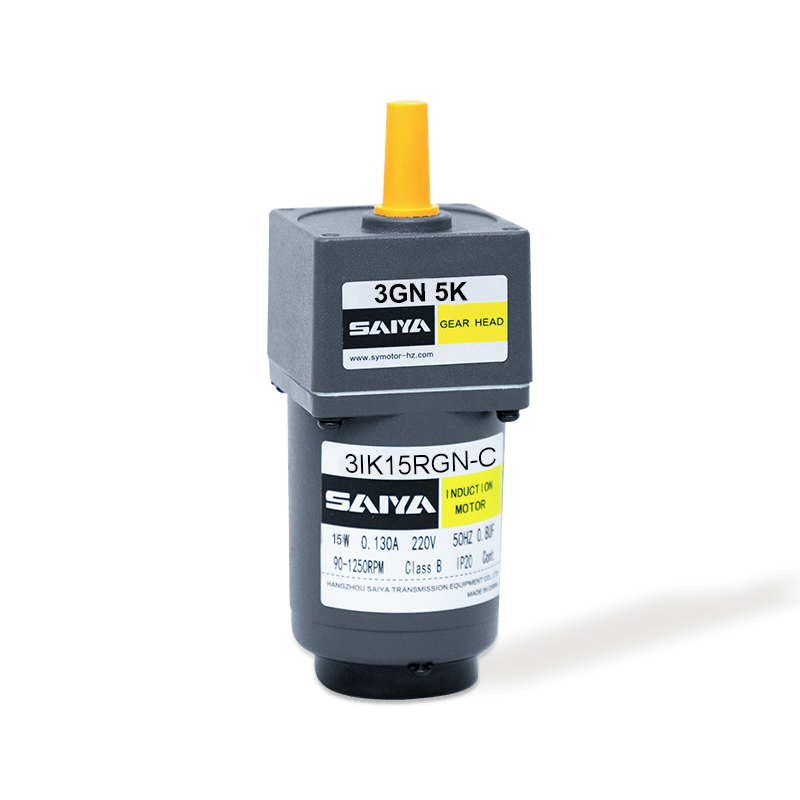

15W Speed Control AC Gear Motors

Voltage size: 15W, 70mmx70mm/with speed controller

Operating voltage: 1ph 110-1ph 230V

Capacitor capacity: 1.2-6uf

Speed range: 90-1650rpm

  • 15W Speed Control AC Gear Motors
  • 15W Speed Control AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

15W speed control AC gear motors are versatile and efficient devices designed for a wide range of applications requiring precise speed control. These motors frame 70mm x 70mm, making them ideal for use in space-constrained environments. They come equipped with a speed controller, allowing for seamless adjustments to motor speed as needed.

These gear motors are compatible with single-phase power supplies, operating at voltages ranging from 110V to 230V. This wide voltage range ensures their suitability for various global power standards. The built-in capacitor, with a capacity ranging from 1.2 to 6μF, enhances the motor's performance by providing improved starting torque and overall efficiency.

One of the key features of these motors is their adjustable speed range, which range from 90 to 1650 RPM. This flexibility allows for precise control over the motor's output, making them suitable for applications in automation, conveyors, packaging machinery, and other equipment where varying speeds are required.

INDUCTION MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
3IK15GN-A 3IK15A-A 15  1ph
100 		 50  0.35  90  125  1200  6.0
60  0.33  85  105  1450
3IK15GN-E 3IK15A-E 15  1ph
110 		 60  0.30  65  105  1450  5.0
1ph
120 		 0.32
3IK15GN-C 3IK15A-C 15  1ph
220 		 50  0.18  90  125  1200  1.2
1ph
230 		 0.20
3IK15GN-H 3IK15A-H 15  1ph
220 		 60  0.16  65  105  1450
1ph
230 		 0.15  70
3IK15GN-S 3IK15A-S 15  3ph
220 		 50  0.14  220  125  1200
60  0.12  180  105  1450

REUERSIBE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Pinion Shaft Round Shaft
3RK15GN-A 3RK15A-A 15  1ph 100 50  0.40  110  125  1200  7.0
60  0.56  105  105  1450
3RK15GN-E 3RK15A-E 15  1ph110 60  0.43  85  105  1450  6.0
1ph120 0.42
3RK15GN-C 3RK15A-C 15  1ph220 50  0.23  110  125  1200  1.5
1ph230
3RK15GN-H 3RK15A-H 15  1ph220 60  0.20  85  105  1450  1.5
1ph230 90

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft 1200r/min
mN.m		 90r/min
   mN.m
3IK15RGN-A 3IK15RA-A 15  1ph
100 		 50  90～1350 120  35  55  0.35  6.0
60  90～1650 0.33
3IK15RGN-E 3IK15BA-F 15  1ph
110 		 60  90～1650 125  35  55  0.30  5.0
1ph
120 		 0.32
3IK15RGN-C 3IK15RA-C 15  1ph
220 		 50  90～1350 120  35  54  0.18  1.2
1ph
230 		 0.20
3IK15RGN-H 3IK15RA-H 15  1ph
220 		 60  90～1650 85  35  52  0.16  1.2
1ph
230 		 105  55  0.15

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5   6  7.5  9  12.5  15  18  25  30  36  50  60 75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60 50  36  30  24  20  18  15  12  10  9
3IK15GN-A
3IK15GN-E
3IK15GN-C
3IK15GN-H
3IK15GN-S		 3GN□ K 50Hz 0.30  0.36  0.51  0.61  0.76  0.91  1.3  1.5  1.8  2.3  2.7  3.3  4.1  5  5  5  5  5  5  5  5
3.06  3.67  5.20  6.22  7.75  9.28  13.2  15.3  18.3  23.4  27.5  33.7  41.8  50  50  50  50  50  50  50  50
60Hz 0.26  0.31  0.43  0.51  0.64  0.77  1.1  1.3  1.5  1.9  2.3  2.8  3.5  4.2  5  5  5  5  5  5  5
2.65  3.16  4.38  5.20  6.53  7.85  11.2  13.2  15.3  19.3  23.4  28.5  35.7  42.8  50  50  50  50  50  50  50

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

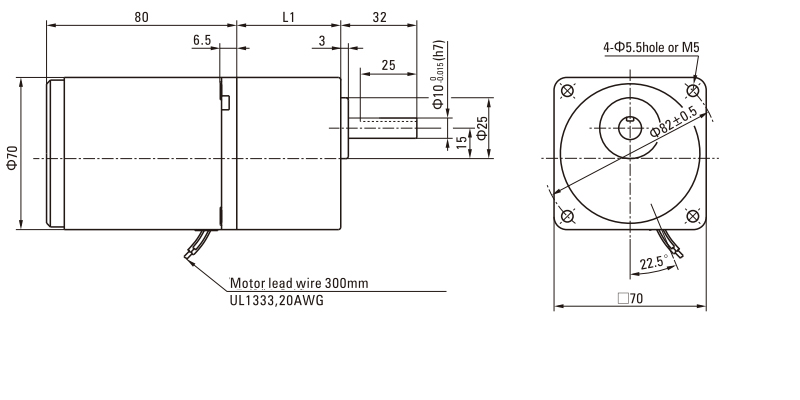

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 1.1kg / Gearhead :0.5kg

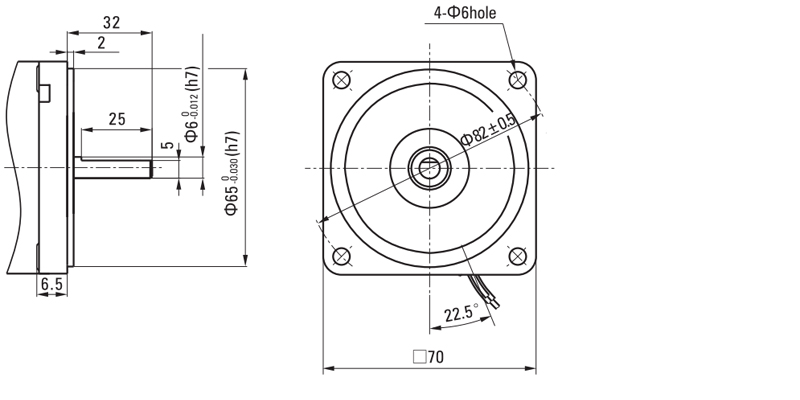

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

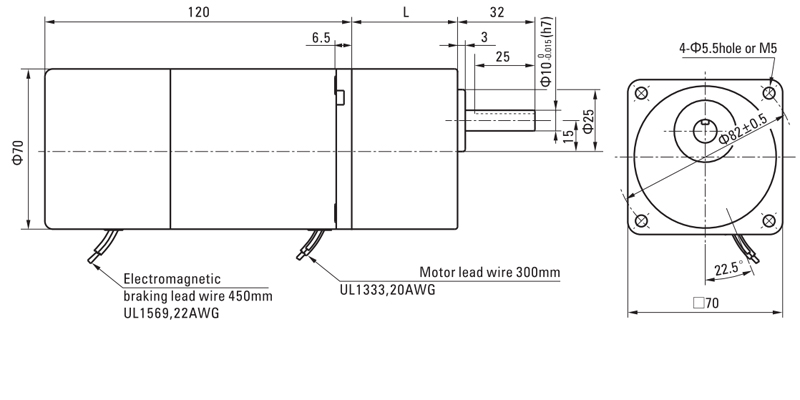

Lead Wiring Type(Brake Motors)

Weight: Motor:1.47kg / Gearhead: 0.5kg

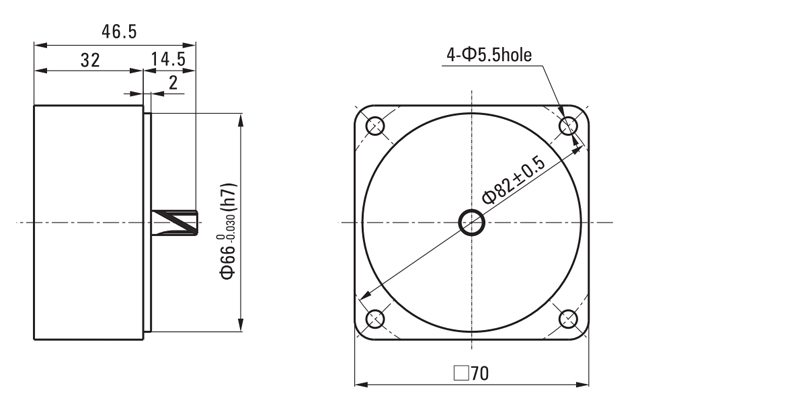

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.3kg

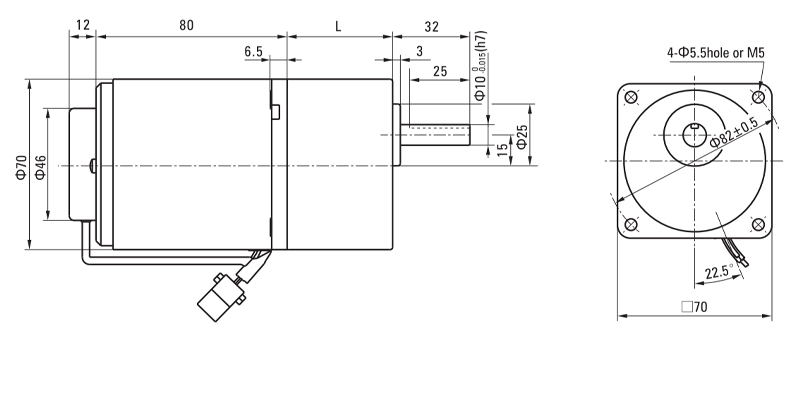

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.2kg / Gearhead:0.5kg

Gearhead Model Gear Ratio L1
3GN□K 3～18 32
25～200 42

Enter the gear ratio in the box(□)within the model name
