Speed Control AC Gear Motors

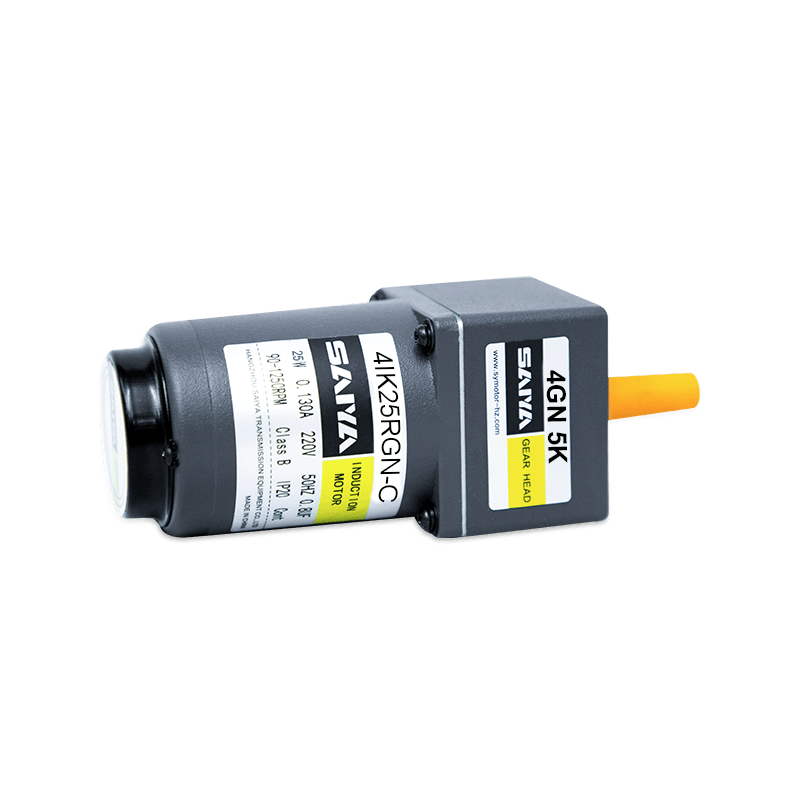

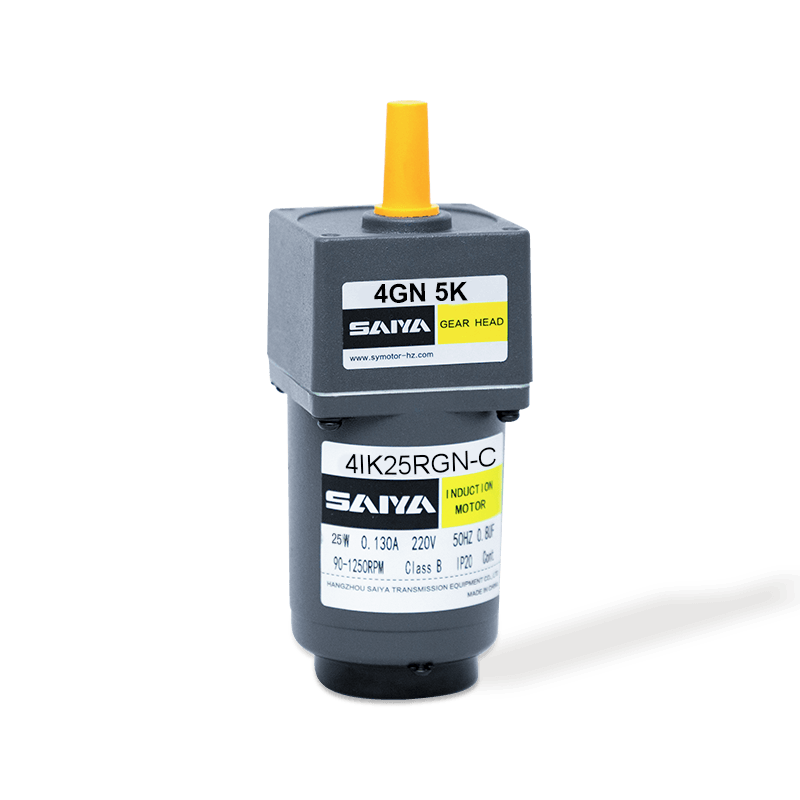

25W Speed Control AC Gear Motors

Voltage size: 25W, 80mmx80mm/with speed controller

Current usage: 0.23-0.50A

Rated torque: 88-105mN. m

Speed range: 90-1650rpm

  • 25W Speed Control AC Gear Motors
  • 25W Speed Control AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

25W, 80x80mm AC gear motors with speed control are compact yet powerful, ideal for various small machinery applications, and equipped with a speed controller to offer precise regulation of motor speed. The current usage for these motors ranges from 0.23 to 0.50A, ensuring efficient performance without excessive power consumption. They provide a rated torque between 88 to 105mN·m, making them suitable for tasks that require moderate force.

One of the standout features of these motors is their adjustable speed range, which spans from 90 to 1650 RPM. This versatility allows them to be used in a wide array of applications, from slow, steady operations to those requiring rapid movements. The integrated speed controller is user-friendly, making it simple to adjust the motor speed to match the specific requirements of any project.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
4IK25GN-A
(4IK25A-A)		 4IK25GN-AT
(4IK25A-AT)		 25  1ph
100 		 50  0.50  120  200  1250  8.0
60  0.55  165  1550
4IK25GN-E
(4IK25A-E)		 4IK25GN-ET
(4IK25A-ET)		 25  1ph
110 		 60  0.45  120  165  1550  7.0
1ph
120 		 0.50
4IK25GN-C
(4IK25A-C)		 4IK25GN-CT
(4IK25A-CT)		 25  1ph
220 		 50  0.25  120  200  1250  1.8
1ph
230 		 0.23
4IK25GN-H
(4IK25A-H)		 4IK25GN-HT
(4IK25A-HT)		 25  1ph
220 		 60  0.23  120  165  1550
1ph
230
4IK25GN-S
(4IK25A-S)		 4IK25GN-ST
(4IK25A-ST)		 25  3ph
220 		 50  0.185  350  200  1250
60  0.170  250  165  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead Wire Type
Dimensions①		 Terminal Box Type
Dimensions②
4RK25GN-A
(4RK25A-A)		 4RK25GN-AT
(4RK25A-AT)		 25  1ph
100 		 50  0.59  160  200  1250  10.0
60  0.69  140  165  1550
4RK25GN-E
(4RK25A-E)		 4RK25GN-ET
(4RK25A-ET)		 25  1ph
110 		 60  0.45  140  165  1550  8.0
1ph
120 		 0.50

4RK25GN-C
(4RK25A-C)
4RK25GN-CT
(4RK25A-CT)		 25  1ph
220 		 50  0.29  140  200  1250  2.2
1ph
230 		 0.30  160
4RK25GN-H
(4RK25A-H)		 4RK25GN-HT
(4RK25A-HT)		 25  1ph
220 		 60  0.35  140  165  1550  2.2
1ph
230

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
  Pinion Shaft   Round Shaft 1200r/min
   mN.m		 90r/min
mN.m
4IK25RGN-A 4IK25RA-A 25  1ph
100 		 50  90～1350 190  47  88  0.50  8.0
60  90～1650 0.55
4IK25RGN-E 4IK25RA-E 25  1ph
110 		 60  90～1650 190  50  105  0.45  7.0
1ph
120 		 0.50
4IK25RGN-C 4IK25RA-C 25  1ph
220 		 50  90～1350 190  47  88  0.25  1.8
1ph
230 		 0.23
4IK25RGN-H 4IK25RA-H 25  1ph
220 		 60  90～1650 190  45  88  0.23  1.8
1ph
230

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3  3.6  5  6  7.5   9  12.5  15  18  25  30  36  50  60  75  90  100  120  150  180  200
Speed r/min 50Hz 500  417  300  250  200  166  120  100  83  60  50  41  30  25  20  16  15  12.5  10  8.3  7.5
60Hz 600  500  360  300  240  200  144  120  100  72  60  50  36  30  24  20  18  15  12  10  9
4IK25GN-A□
4IK25GN-E□
4IK25GN-C□
4IK25GN-H□
4IK25GN-S□		 4GNCK 50Hz 0.49  0.58  0.81  0.97  1.2  1.5  2.0  2.4  2.9  3.7  4.4  5.3  6.6  7.9  8  8  8  8  8  8  8
5.00  5.91  8.26  9.89  12.2  15.3  20.4  24.4  29.6  37.7  44.9  54.1  67.3  80  80  80  80  80  80  80  80
60Hz 0.40  0.48  0.67  0.80  1.0  1.2  1.7  2.0  2.4  3.0  3.6  4.3  5.4  6.5  8  8  8  8  8  8  8
4.08  4.89  6.83  8.16  10.2  12.2  17.3  20.4  24.4  30.6  36.7  43.8  55.1  66.3  80  80  80  80  80  80  80

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

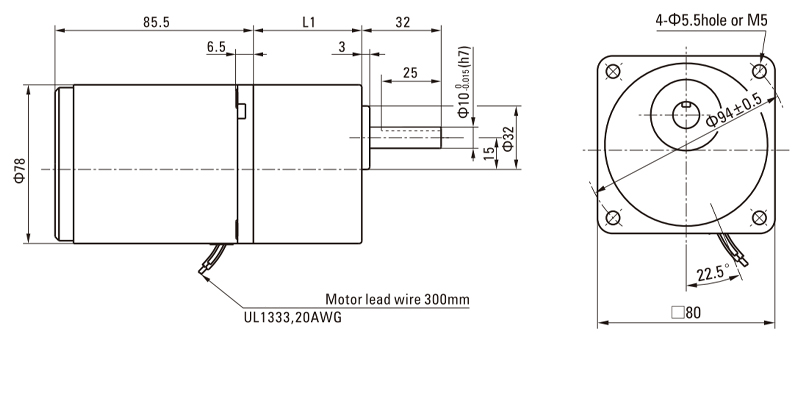

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 1.6kg / Gearhead : 0.8kg

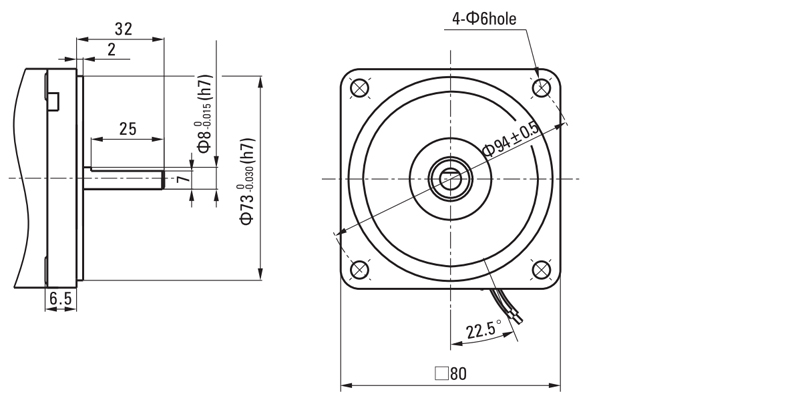

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

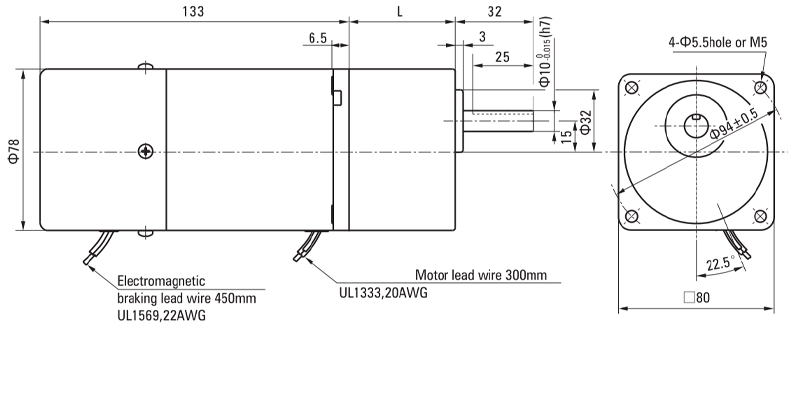

Lead Wiring Type(Brake Motors)

Weight: Motor: 2.15kg / Gearhead: 0.8kg

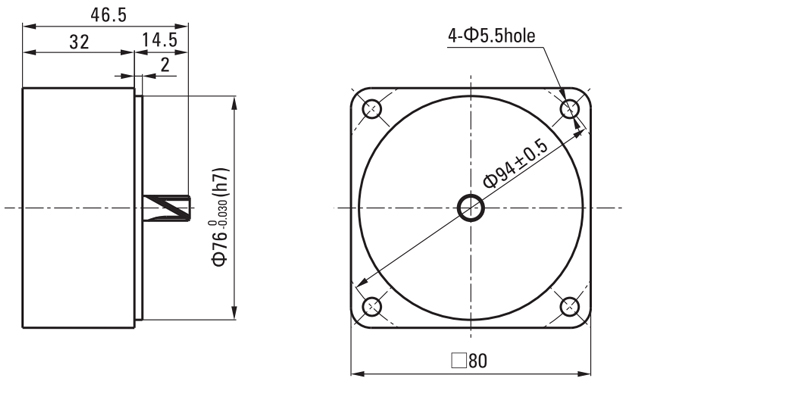

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.41kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.7kg / Gearhead:0.8kg

Gearhead Model Gear Ratio L1
4GN□K 3～18 32
25～200 43.5

Enter the gear ratio in the box(□)within the model name

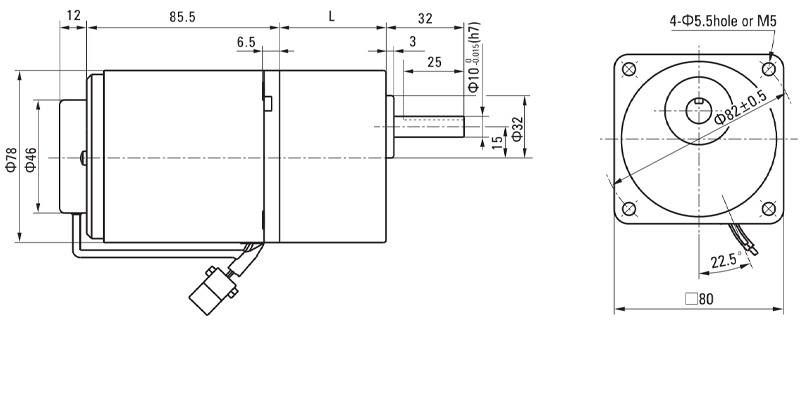

Lead Wiring Type (Speed Control Motors)

Weight: Motor:1.75kg / Gearhead:0.8kg

Gearhead Model Gear Ratio L1
4GN□K 3～18 32
25～200 43.5

Enter the gear ratio in the box(□)within the model name
