Speed Control AC Gear Motors

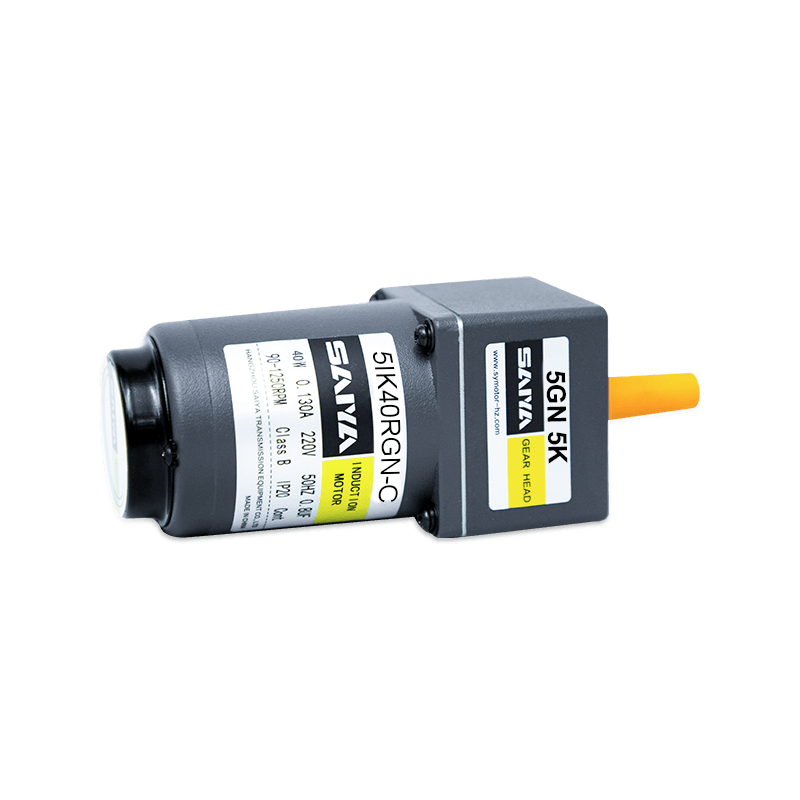

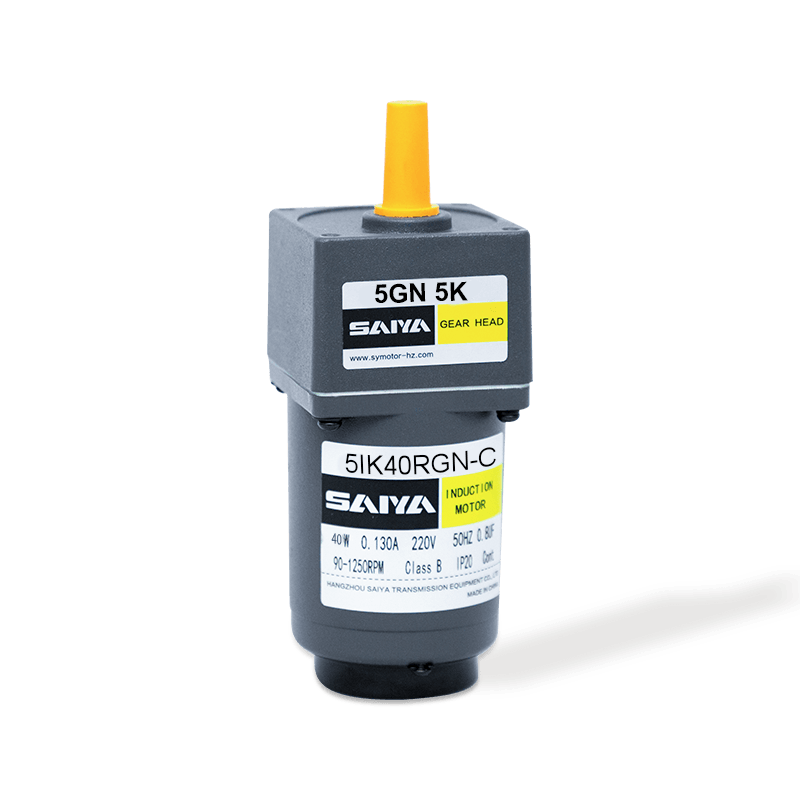

40W Speed Control AC Gear Motors

Voltage size: 40W, 90mmx90mm/with speed controller

Operating voltage: 1ph 110-1ph 230V

Capacitor capacity: 2.5-12uf

Speed range: 90-1650rpm

  • 40W Speed Control AC Gear Motors
  • 40W Speed Control AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

40W speed control AC gear motors are versatile and efficient devices designed for a wide range of applications requiring precise speed control. These motors frame 90mm x 90mm, making them ideal for use in space-constrained environments. They come equipped with a speed controller, allowing for seamless adjustments to motor speed as needed.

These gear motors are compatible with single-phase power supplies, operating at voltages ranging from 110V to 230V. This wide voltage range ensures their suitability for various global power standards. The built-in capacitor, with a capacity ranging from 2.5 to 12μF, enhances the motor's performance by providing improved starting torque and overall efficiency.

One of the key features of these motors is their adjustable speed range, which range from 90 to 1650 RPM. This flexibility allows for precise control over the motor's output, making them suitable for applications in automation, conveyors, packaging machinery, and other equipment where varying speeds are required.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5IK40GN-A
(5IK40A-A)		 5IK40GN-AT
(5IK40A-AT)		 40  1ph
100 		 50  0.65  220  315  1250  12.0
60  0.70  260  1550
5IK40GN-E
(5IK40A-E)		 5IK40GN-ET
(5IK40A-ET)		 40  1ph
110 		 60  0.55  200  260  1550  8.0
1ph
120 		 0.60
5IK40GN-C
(5IK40A-C)		 5IK40GN-CT
(5IK40A-CT)		 40  1ph
220 		 50  0.35  220  315  1250  2.5
1ph
230 		 0.40
5IK40GN-H
(5IK40A-H)		 5IK40GN-HT
(5IK40A-HT)		 40  1ph
220 		 60  0.35  200  260  1550
1ph
230 		 0.40
5IK40GN-S
(5IK40A-S)		 5IK40GN-ST
(5IK40A-ST)		 40  3ph
220 		 50  0.30  800  315  1250
60  0.25  660  250  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
 mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5RK40GN-A
(5RK40A-A)		 5RK40GN-AT
(5RK40A-AT)		 40  1ph
100 		 50  0.78  300  315  1250  15.0
60  1.05  260  1550
5RK40GN-E
(5RK40A-E)		 5RK40GN-ET
(5RK40A-ET)		 40  1ph
110 		 60  0.79  260  260  1550  12.0
1ph
120 		 0.80
5RK40GN-C
(5RK40A-C)		 5RK40GN-CT
(5RK40A-CT)		 40  1ph
220 		 50  0.45  270  315  1250  3
1ph
230
5RK40GN-H
(5RK40A-H)		 5RK40GN-HT
(5RK40A-HT)		 40  1ph
220 		 60  0.45  270  260  1550  3
1ph
230

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft 1200r/min
mN.m		 90r/min
mN.m
5IK40RGN-A 5IK40RA-A 40  1ph
100 		 50  90～1350 260  70  180  0.65  12.0
60  90～1650 0.70
5IK40BGN-F 5IK40BA-F 40  1ph
110 		 60  90～1650 260  65  180  0.55  8.0
1ph
120 		 0.60
5IK40RGN-C 5IK40RA-C 40  1ph
220 		 50  90～1350 300  75  160  0.35  2.5
1ph
230 		 0.40
5IK40RGN-H 5IK40BA-H 40  1ph
220 		 60  90～1650 230  70  145  0.35  2.5
1ph
230 		 0.40

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Speed           r/min  50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
 60Hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
 5IK40GN-A□
5IK40GN-E□
5IK40GN-C□
5IK40GN-H□
5K40GN-S□		         5GN□K  50Hz 0.77 0.92 1.3 1.5 1.9 2.3 3.2 3.8 4.6 5.7 6.9 8.3 10 10 10 10 10 10 10 10 10
7.85 9.38 13.2 15.3 19.4 23.4 32.6 38.7 46.9 58.1 70.4 84.7 100 100 100 100 100 100 100 100 100
 60Hz 0.63 0.76 1.1 1.3 1.6 1.9 2.6 3.2 3.8 4.7 5.7 6.8 8.6 10 10 10 10 10 10 10 10
6.42 7.75 11.2 13.2 16.3 19.3 26.5 32.6 38.7 47.9 58.1 69.3 87.7 100 100 100 100 100 100 100 100

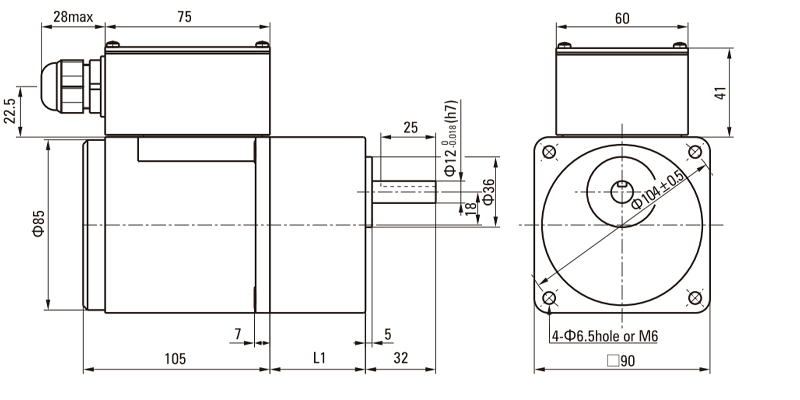

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

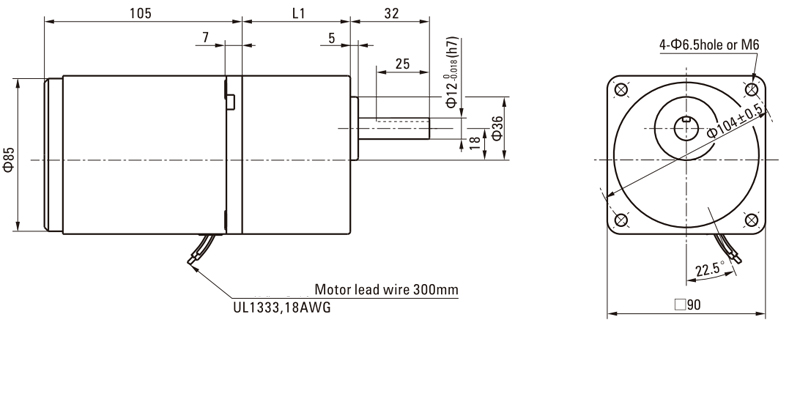

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 2.4kg / Gearhead : 1.35kg

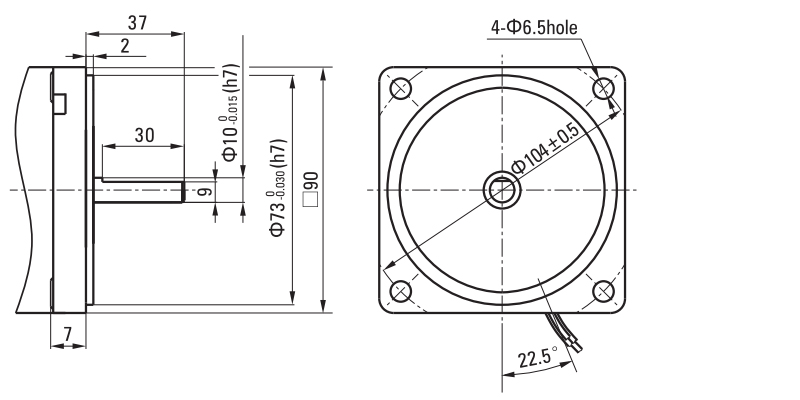

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

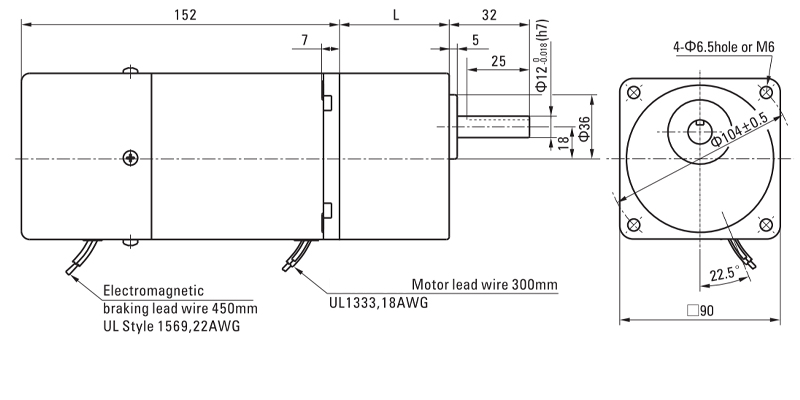

Lead Wiring Type(Brake Motors)

Weight: Motor: 3.1kg / Gearhead: 1.3kg

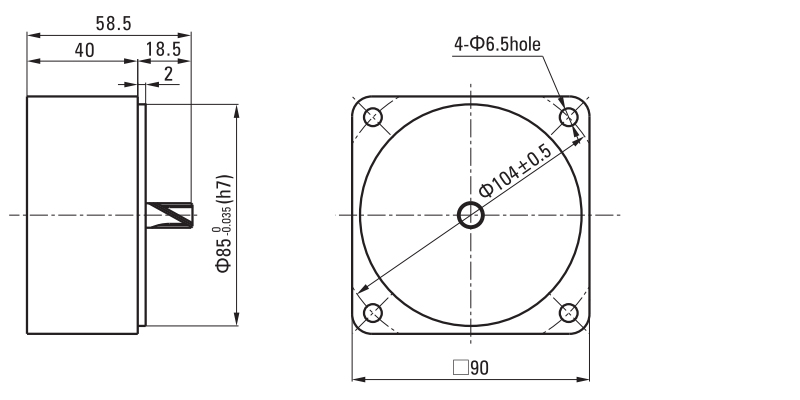

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.6kg

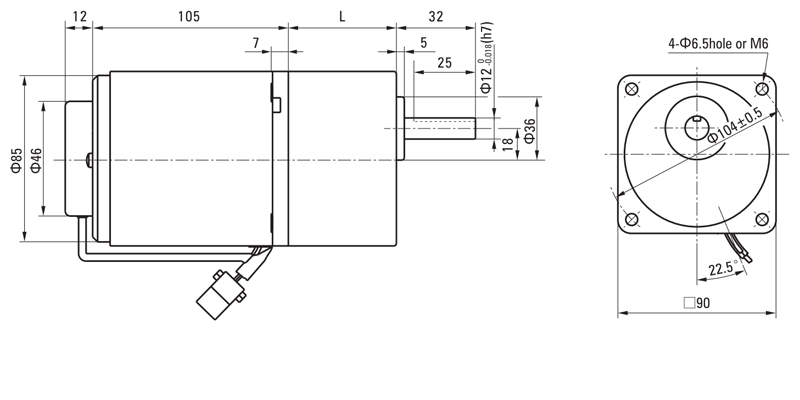

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 2.5kg / Gearhead: 1.35kg

Gearhead Model Gear Ratio L1
5GN□K 3～18 42
25～200 60

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 2.55kg / Gearhead: 1.35kg

Gearhead Model Gear Ratio L1
5GN□K 3～18 42
25～200 60

Enter the gear ratio in the box(□)within the model name
