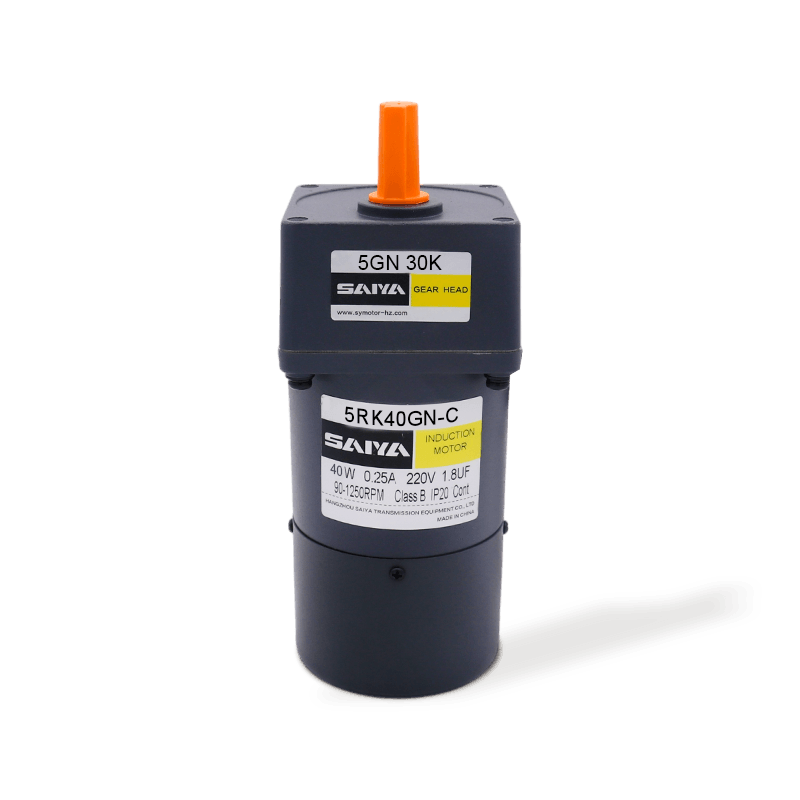

40W Reversible AC Gear Motors

Voltage size: 40W, 90mmx90mm/with brake

Operating voltage: 1ph 110-1ph 230V

Capacitor capacity: 3-15uf

The speed is based on the asynchronous speed of the electric motor (50Hz: 1200r/min, 60Hz: 1450r/min)

  • 40W Reversible AC Gear Motors
PREV   |   NEXT

+ Contact us + Catalogue Download Product Video
APPLICATION AREA
We are a high-tech enterprise dedicated to the production and sales of AC gear reduction motors, small reduction motors, servo-specific planetary reducers, DC brushless and brushless motors, and other products.

  • Logistics Sorting

  • Automated Robots

  • laser cutting

  • Access control gate

  • Photovoltaic Power Station

  • Medical Devices

  • AGV

Product Description

40W reversible AC gear motors are compact with a frame size of 90mm x 90mm, these motors are designed to fit into tight spaces without compromising on performance. They come equipped with a braking system to ensure quick and accurate stopping, enhancing safety and control in various applications.

The motors are versatile in terms of power supply, operating on a single-phase voltage of either 110V or 230V. This flexibility makes them suitable for use in different regions and under varying electrical conditions. Additionally, they require a capacitor with a capacity ranging from 3 to 15 μF to start and run efficiently.

These motors operate at asynchronous speeds, which vary depending on the frequency of the electrical supply:1200rmp for 50Hz and 1450 for 60HZ. This difference in speed allows the motors to be used in a wide range of applications, providing consistent performance across different environments and requirements.

INDUCTION MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5IK40GN-A
(5IK40A-A)		 5IK40GN-AT
(5IK40A-AT)		 40  1ph
100 		 50  0.65  220  315  1250  12.0
60  0.70  260  1550
5IK40GN-E
(5IK40A-E)		 5IK40GN-ET
(5IK40A-ET)		 40  1ph
110 		 60  0.55  200  260  1550  8.0
1ph
120 		 0.60
5IK40GN-C
(5IK40A-C)		 5IK40GN-CT
(5IK40A-CT)		 40  1ph
220 		 50  0.35  220  315  1250  2.5
1ph
230 		 0.40
5IK40GN-H
(5IK40A-H)		 5IK40GN-HT
(5IK40A-HT)		 40  1ph
220 		 60  0.35  200  260  1550
1ph
230 		 0.40
5IK40GN-S
(5IK40A-S)		 5IK40GN-ST
(5IK40A-ST)		 40  3ph
220 		 50  0.30  800  315  1250
60  0.25  660  250  1550

REUERSIBE MOTOR SPECS

Model ·Type
Upper:Pinion Shaft
Below:Round Shaft		 Output
power
W		 Voltage
V		 Frequency
Hz		 Current
A		 Starting
Torque
mN.m		 Rated
Torque
  mN.m		 Rated
Speed
r/min		 Capacitor
μF
Lead WireType
Dimensions①		 Terminal Box Type
Dimensions②
5RK40GN-A
(5RK40A-A)		 5RK40GN-AT
(5RK40A-AT)		 40  1ph
100 		 50  0.78  300  315  1250  15.0
60  1.05  260  1550
5RK40GN-E
(5RK40A-E)		 5RK40GN-ET
(5RK40A-ET)		 40  1ph
110 		 60  0.79  260  260  1550  12.0
1ph
120 		 0.80
5RK40GN-C
(5RK40A-C)		 5RK40GN-CT
(5RK40A-CT)		 40  1ph
220 		 50  0.45  270  315  1250  3
1ph
230
5RK40GN-H
(5RK40A-H)		 5RK40GN-HT
(5RK40A-HT)		 40  1ph
220 		 60  0.45  270  260  1550  3
1ph
230

REVERSIBLE MOTOR SPECS

Model ·Type
Lead Wire Type		 Output
power
W		 Voltage
V		 Frequency
Hz		 Speed
Control
Range
r/min		 Allowance Torque Starting
Torque
mN.m		 Current
A		 Capacitor
μF
Pinion Shaft Round Shaft 1200r/min
mN.m		 90r/min
mN.m
5IK40RGN-A 5IK40RA-A 40  1ph
100 		 50  90～1350 260  70  180  0.65  12.0
60  90～1650 0.70
5IK40BGN-F 5IK40BA-F 40  1ph
110 		 60  90～1650 260  65  180  0.55  8.0
1ph
120 		 0.60
5IK40RGN-C 5IK40RA-C 40  1ph
220 		 50  90～1350 300  75  160  0.35  2.5
1ph
230 		 0.40
5IK40RGN-H 5IK40BA-H 40  1ph
220 		 60  90～1650 230  70  145  0.35  2.5
1ph
230 		 0.40

Gear Motor-Torque Table

Gearhead and mid-gearbox can be sold separately.

Enter the gear ratio in the box(□)within the model name.

The colored background □ indicates the same rotating direction of the motor while the rotating direction of others is opposite.

Allowance Torque Unit: Upside(N.m)/Belowside(kgf.cm)

Type
Motor/Gearhead		 Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Speed           r/min  50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
 60Hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
 5IK40GN-A□
5IK40GN-E□
5IK40GN-C□
5IK40GN-H□
5K40GN-S□		         5GN□K  50Hz 0.77 0.92 1.3 1.5 1.9 2.3 3.2 3.8 4.6 5.7 6.9 8.3 10 10 10 10 10 10 10 10 10
7.85 9.38 13.2 15.3 19.4 23.4 32.6 38.7 46.9 58.1 70.4 84.7 100 100 100 100 100 100 100 100 100
 60Hz 0.63 0.76 1.1 1.3 1.6 1.9 2.6 3.2 3.8 4.7 5.7 6.8 8.6 10 10 10 10 10 10 10 10
6.42 7.75 11.2 13.2 16.3 19.3 26.5 32.6 38.7 47.9 58.1 69.3 87.7 100 100 100 100 100 100 100 100

Dimensions(Unit mm)

Mounting screws are included with the gearhead.

Lead Wiring Type(Induction/Reversible Motor)

Weight:Motor: 2.4kg / Gearhead : 1.35kg

Shaft Section Of Round Shaft Type

Excluding weight and the shaft section motor shape are the same as those of the pinion shaft type.

Lead Wiring Type(Brake Motors)

Weight: Motor: 3.1kg / Gearhead: 1.3kg

Decimal Gearhead

It can be connected to the GN pinion shaft type.

Weight: 0.6kg

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 2.5kg / Gearhead: 1.35kg

Gearhead Model Gear Ratio L1
5GN□K 3～18 42
25～200 60

Enter the gear ratio in the box(□)within the model name

Lead Wiring Type (Speed Control Motors)

Weight: Motor: 2.55kg / Gearhead: 1.35kg

Gearhead Model Gear Ratio L1
5GN□K 3～18 42
25～200 60

Enter the gear ratio in the box(□)within the model name
